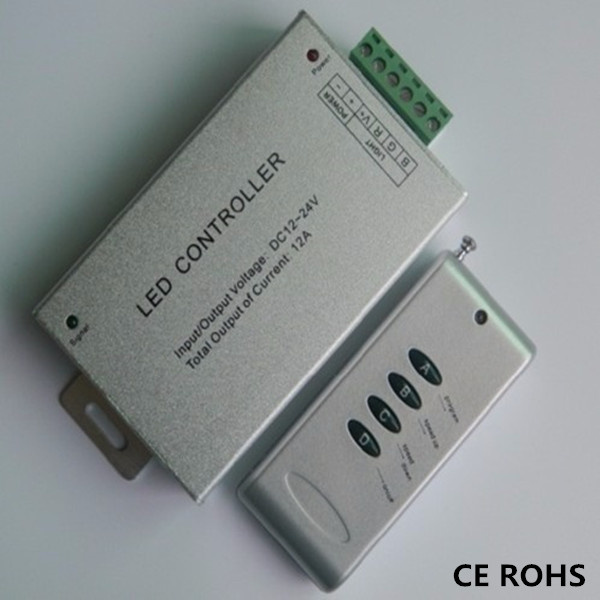

LED Aluminum Shell RF 4 Key Controller

Name: LED Aluminum Shell RF 4 Key Controller
Brand: all-electronics-online.com
SKU: 806618605
Availability: InStock
Rating: 4.6 (28 reviews)

Price:	US $ 4.35-4.4/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-RFL4
Connection Mode:	Common Anode
Static Power Consumption:	<1W
Output:	3 CMOS Open Drain Output
Output Current:	<4A/CH or <8A/CH
RF Frequency:	433.92MHz
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Battery Type:	AAA Battery
Voltage:	DC5V, 12V~24voptional
Material:	Aluminum

Product Description

Basic Info

place of origin:	Shenzhen,China
output:	3 CMOS Open drain Output
output current:	<4A/CH or <8A/CH (optional)
Static power consumption :	<1w
Output Power:	4A -5V:<60W, 12V:<144W, 24V:<288W
RF frequency:	433.92Mhz
Controller's dimension:	1306525mm
Connection mode:	Common anode

Product Description
4-key RF controller adopts the advanced micro control unit, it is used for controlling a variety of constant voltage LED lights. For instance, led source , flexible led strip, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Technical Parameters:
Working temperature:-20-60ºC
Input voltage:DC12~24V
Output:3 circuit
Connection mode:Common anode
Controller size:L130×W65×H25mm
package size:L135×W80×H54mm
Net weight:185g
Gross weight:251g
Static power consumption:<1W
Output current:<4A/ch or <8A/ch (optional)
Output power: 12V/4A < 144W;12V/8A< 288W;24V/4A< 288W;24V/8A< 576W

Standard color changes as follows:

Item	1	2	3		4	5	2(B) and 3(C) keys are used to adjust brightness
Color key	Static Red	Static green	Static yellow		Static blue	Static purple
	6	7	8		9	10
	Static cyan	Static white	3 color jump		7 color jump	3 color fade	7 color fade
Remark				2(B) and 3(C) keys are used to adjust changing speed
