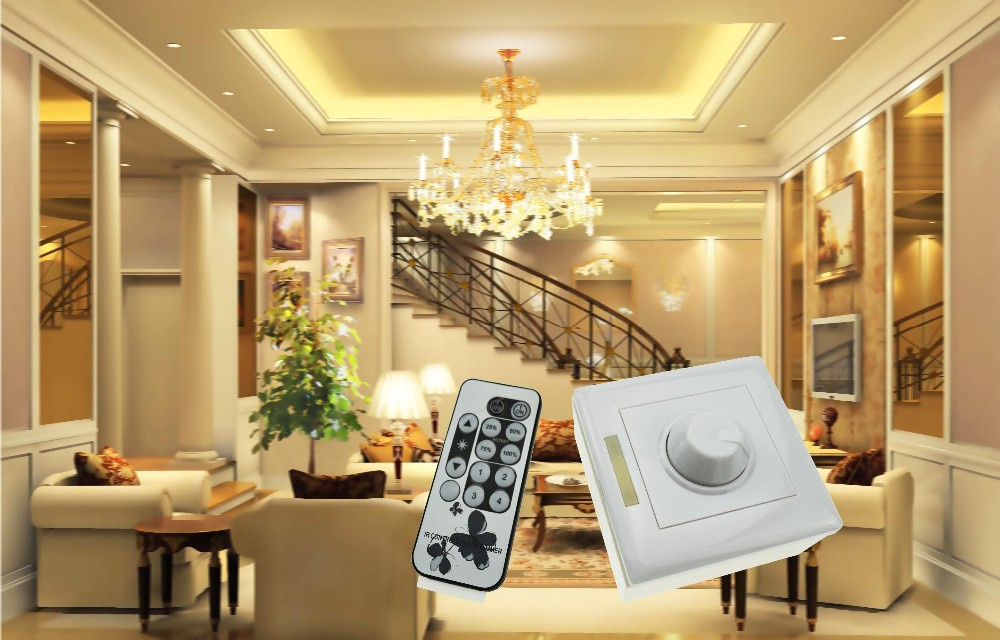

LED Dimmer Switch for Dimmable Spot Lights

Name: LED Dimmer Switch for Dimmable Spot Lights
Brand: all-electronics-online.com
SKU: 807376225
Availability: InStock
Rating: 4.9 (103 reviews)

Price:	US $ 10.1-10.2/Piece
Min Order:	5/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-ETH-8006
Net Weight:	145g
Gross Weight:	190g
Output:	1 Channel
Power Frequency:	50Hz - 60Hz
Output Current:	1A
Application:	Audio / Video Players
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Not Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	AC90-240V

Product Description

Basic Info

place of origin:	Shenzhen,China
Max. Load power:	220w
Voltage:	AC90-240V
Out current:	1A
Output:	1 channel
Package size:	L95W95H75(mm)
Switch size:	L87W87H53(mm)
Voltage dimming range:	5% - 100%

Product Description

Setting Information
AC input	90V-240v
Output channel	1 channel
Power frequency	50HZ - 60HZ
Out current	1A
Out power	<300w (Effective power 200w/220v, 120w/110v)
Voltage dimming range	5% - 100%
Package size	L95W95H75(mm) /Peice
Warranty	2 years

Specifications
1) AC input: 90V -240V (DC12 -24V, 0/1-10V, PWM signal Dimmer optional )
2) Output channel: 1 channel
3) Power frequency: 50Hz - 60Hz
4) Output current: 1A
5) Output power: <300W (Effective power 200W/220V, 120W/110V)
6) Voltage dimming range:5%-100%
7) Power output can be cut off
8) 5-100% brightness dimmable, no twinkling
9) Scheduled shut down (1-4 hours), Memory feature (while controller is keep power on)
10) Control mode: Manually and IR remote
11) AC along the digital phase dimming technology

Installation and use instructions
The input voltage of this controller should to be AC90 -240V.
Never connect two wires directly in case of short circuit.
Knob operation:Rotary knob clockwise to increase
brightness, knob counterclockwise rotation will decrease the brightness.

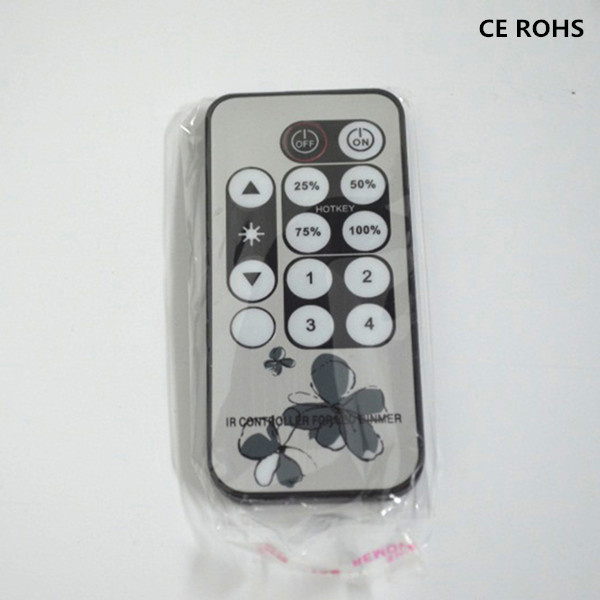

Remote control operation: IR remote can be working alone, First use, please take out the lucid spacer which under remote down side, the remote control facing the infrared receiver, ensure that there are no obstructions between remote controller and receiver, when dimmer receives an effective signal from the infrared remote. control, the light on the upside flickers. Long press "+" and "-" can be fast dimming.
