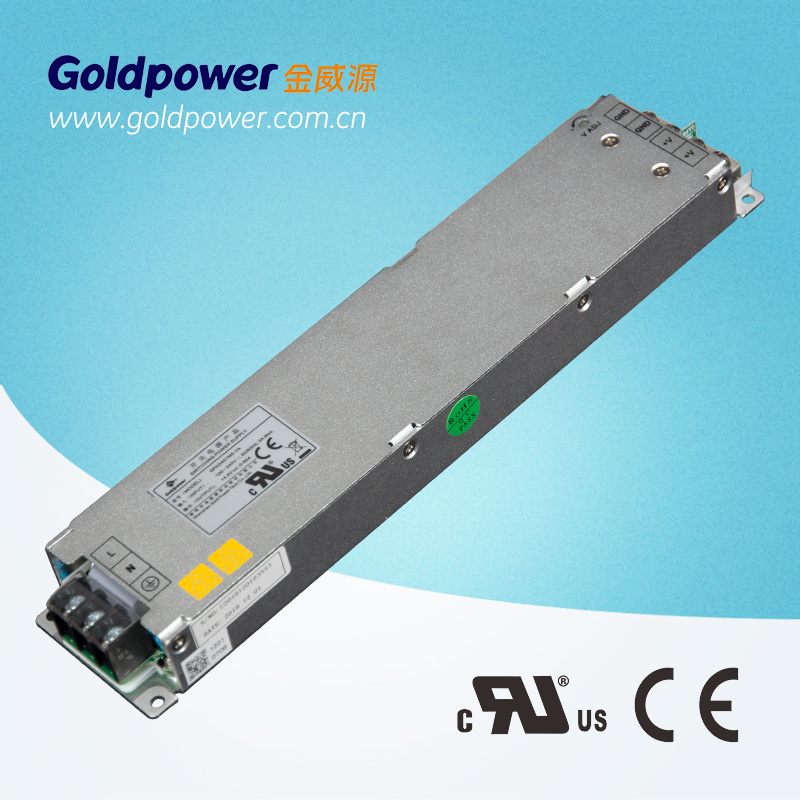

LED Display 400W 4.6V LED Power Supply

Name: LED Display 400W 4.6V LED Power Supply
Brand: all-electronics-online.com
SKU: 726988662
Availability: InStock
Rating: 4.4 (41 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD401M4.6-1B
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Constant Current
Brand:	Goldpower

Product Description

Model No: GPAD401M4.6-1B Brand: Goldpower
Warranty: 2 years Input Voltage: 90~264Vac
Output Power: 400W Typical Output Voltage: 4.6 V
Output type: single Certification: RoHs,CE
HS Code: 8504401990 Dimension:165*85*26mm
Weight: 1kg Origin: Shenzhen, China
Trademark: Goldpower

Features:
Wide input AC voltage range 90~264Vac
Wide output DC voltage range 4.2-5.0V to meet different usage requirements
Operating temperature range:-25°C~+85°C
Standard size, high reliability and stability
Output short circuit protection; over current/voltage protection
Designed to meet safety standard requirements

Product Description:

Model No.	GPAD401M4.6-1B
Input voltage range	90~264Vac
Output voltage range	4.2-5.0V
Output current range	0~80A
PFC	With PFC function
Power	400W
Efficiency	89%
Current sharing degree	/
Output over voltage point	5.5V, auto-recovery
Output over current point	85A
Cooling	Thermal conduction
Certificates	/
Working temperature	-25°C~+85°C
Store temperature	-25°C~+100°C
Working environment	Indoor and outdoor installations
Dimension	1658526mm

Techone was founded in 2003, a leading energy-saving company in the power supply industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 500 employees and many core intellectual property rights.

We supplies digital power supply units and control solutions, for HID/LED/UV lighting and non-lighting applications. Nowadays, more than one and a half million our product have been working world-wide for general and special applications, such Hydroponics plant growing, street lighting, UV water processing and so on. Our patented devices and technology enable you to save upto 50% energy while delivering the same or more brightness.

We provide a complete line of products for HID/LED/UV system, with mutiple dimming or remote-control, universal AC/DC input and wide-range output power. OEM/ODM is also welcome. Our product has always passed UL certification. Good quality and service will be promised.
