LED Display Mpm4891 Pressure Transmitter for Hydrology

Name: LED Display Mpm4891 Pressure Transmitter for Hydrology
Brand: all-electronics-online.com
SKU: 776286505
Availability: InStock
Rating: 4.5 (62 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	mpm4891
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	0~10kpa...40MPa
Accuracy:	0.5%Fs
Overpressure:	1.5 Times Fs
Output Signal:	4~20madc
Wire:	2-Wire
Long Term Stability:	0.3%Fs/Year
Power Supply:	11V~28V DC
Pressure Type:	Sealed Gauge,Gauge,Absolute
Storage Temp:	-40~80c
Operation Temp:	-25~75c
Pressure Range:	0~10kpa...40MPa

Product Description

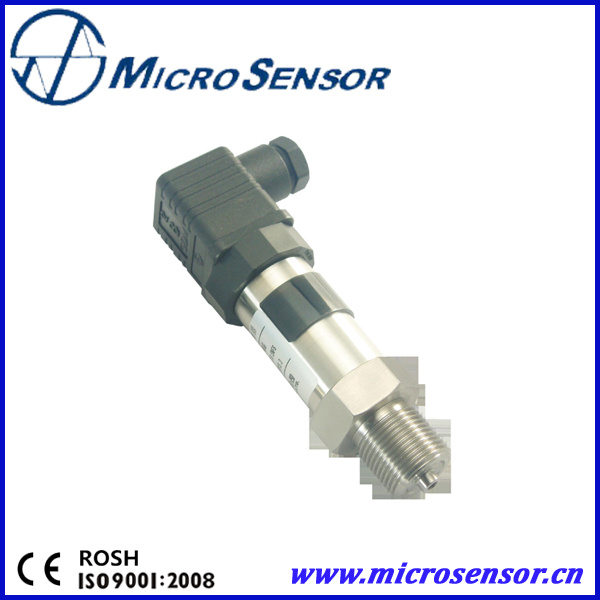

            LED display MPM4891 Pressure Transmitter for hydrology

Features:
1.   LED display;
2.   Stainless steel;
3.   Reliable;
4.   2 Wire;
5.   Safe;

Application:
1.     Petroleum;
2.     Hydrology;
3.     Power plant;
4.     Geology

Specifications:

Range: 0kPa~10kPa40MPa Overpressure: 1.5FS Pressure Type: Gauge, Absolute or Sealed gauge Accuracy: ±0.5%FS	Power Supply: 11V~28V DC Output: 4mA~20mA DC (2-wire) Load Resistance: ≤(U-11)/0.02(Ω) Electric Connection:Hirschmann Plug
Long-term Stability: ±0.3%FS/year (Max.) Zero Thermal Drift: ±0.1%FS/ºC FS Thermal Drift: ±0.1%FS/ºC	Operation Temperature: -25ºC~75ºC Storage Temperature: -40ºC~80ºC Relative Humidity: 0%~85%

Order guide:

MPM4891	Pressure Transmitter
	Range	0kPa~10kPa40MPa
	[0~X] kPa or MPa	X: actual measurement range
		Code	Output
		E	4mA~20mA DC (2-wire)
			Code	Construction Material
				Diaphragm	Pressure Port	Housing
			22	SS316L	SS	SS
			24	SS316L	SS316L	SS316L
			25	Tantalum	SS	SS
			35	Tantalum	Hastelloy	SS
				Code	others
				B1	Plug connection
				C1	M20×1.5 male, face sealing
				C3	G1/2 male
				C5	M20×1.5male, waterline sealing
				G	Gauge
				S	Sealed Gauge
				A	Absolute

MPM4891 [0~200]kPa E 22 B1C1A the whole spec.

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
