Silicon Oil Filled Piezoresistive Pressure Sensor (MPM281)

Name: Silicon Oil Filled Piezoresistive Pressure Sensor (MPM281)
Brand: all-electronics-online.com
SKU: 705404515
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM281-G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~7kpa....70MPa
Pressure Type:	Gauge, Absolute, Sealed Gauge
Temperature Compensation:	-10c~+80c
Power Supply:	<=2.0madc
Pin:	Kovar
O-Ring:	Viton
Shock:	No Change at 10grms, (20~2000)Hz
Impact:	100g, 11ms
Media Temperature:	35+/-1c
Environment Temperature:	35+/-1c

Product Description

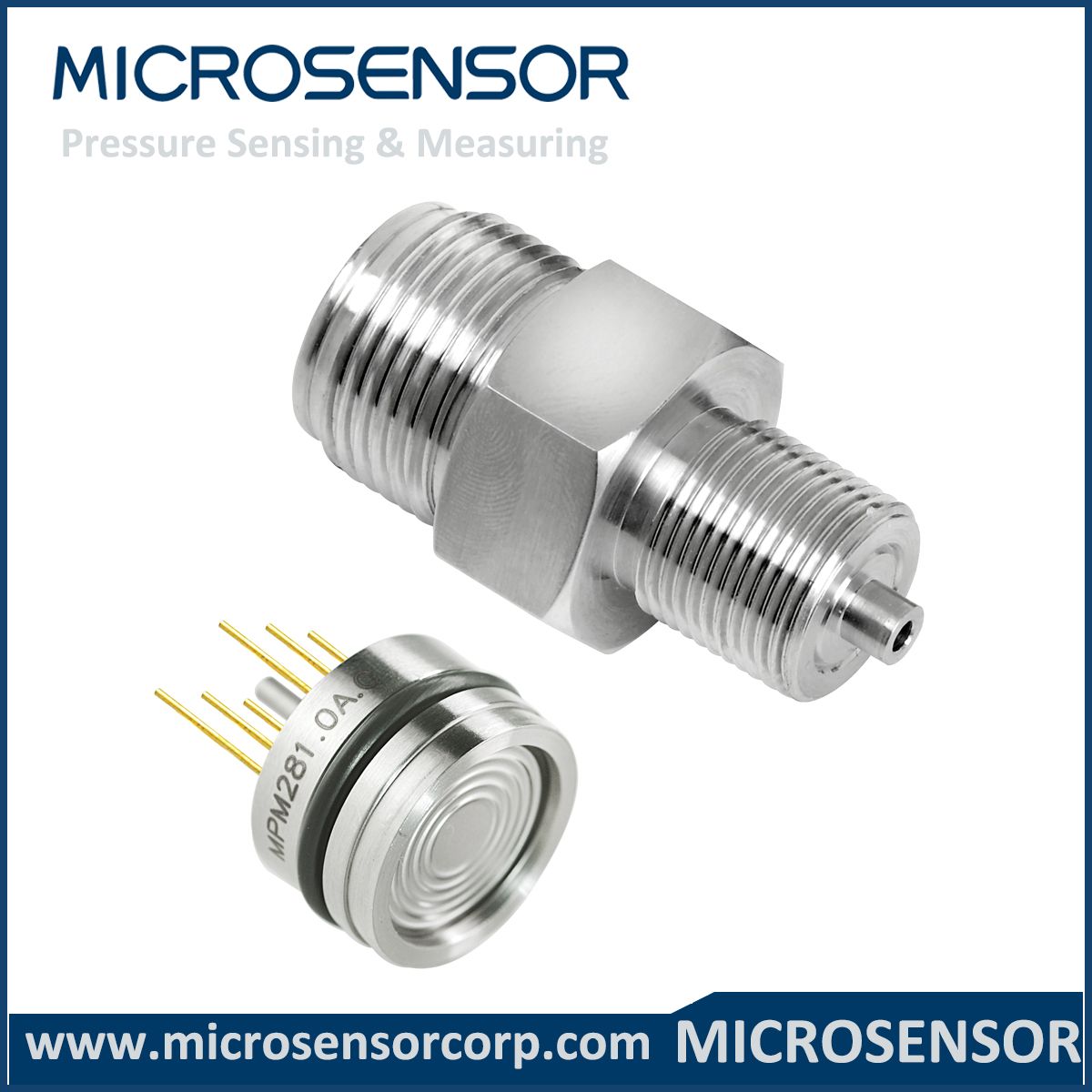

Silicon Oil Filled Piezoresistive Pressure Sensor MPM281

Features:
1. Isolated construction;
2. Constant current power supply;
3. SS316L;
4. Φ19mm diameter

Application:
1. Level measurement;
2. Aviation;
3. Ocean;
4. Liquid pressure system;
5. Pressure meter;
6. Industrial process control;
7. Air conditioner

Options:
1. Sealed gauge, gauge, absolute;
2. Laser trimming type;
3. Outer compensated resistor;
4. O-ring type

Description:
MPM281 Isolated High Stable Piezoresistive OEM Pressure Sensor is supplied by constant current power, it has been tested and selected many times in automatic production line to accord with every high standard measuring occasions.

Specifications:

Specification*	Min.	Typ.	Max.	Units
Linearity		±0.2	±0.25	%FS, BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2	MVDC
FS output	70			MVDC
Zero thermal error		±0.75	±1.0	%FS, @35ºC
Span thermal error		±0.75	±1.0	%FS, @35ºC
Compensated temp. Range	-10~80			ºC
Working temp. Range	-40~125			ºC
Storage temp. Range	-40~125			ºC
Stability error		±0.1	±0.2	%FS/year
*testing at basic condition

Order guide:

MPM281

High Stable Piezoresistive OEM Pressure Sensor

Range code

Pressure range (kPa)

Ref.

Range code

Pressure range (MPa)

Ref.

0~7

0~1

G. A

0~20

0~2

G. A

0~35

0~3.5

G. A. S

0~70

0~7

0~100

0~10

0~200

G. A

0~20

0~350

G. A

0~35

0~700

G. A

0~70

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Temperature compensation

Laser trimming

Outer compensated resistor

Code

Electric connection

Φ0.5mm Kovar pins

4-color 100mm flexible rubber wire

Code

Special measurement

Gauge sensor to measure vacuum

MPM281 07 G 0 L 1 Y the whole spec
