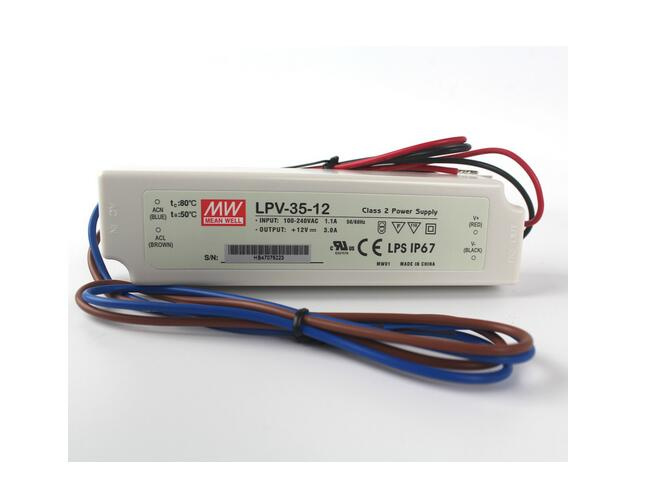

LED Driver Dimming 35W Meanwell Power Supply

Prod Model:	LPV-35-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No:	Lpv-35-12
Rated Power:	35W
Output Voltage:	11.4~13.2V
Rated Current:	3A
Efficiency:	84%
Input Voltage Range:	90 ~ 264VAC
Application:	LED Lighting, CCTV Camera, DVR, Industrial Equipm
Frequency Range:	47~63Hz
Working Temp.:	-30 ~ +65
Product Dimension:	159*97*38mm(L*W*H)
Output Type:	Single
Warranty:	>2 Years
Output Power:	1 - 50W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	EMC

Product Description

LED Driver Dimming 35W Meanwell Power Supply

Features:
1.Constant voltage design
2.Universal AC input/Full range
3. Epoxy encapsulated with IP67 level
4. Withstand 300VAC surge input for 5 seconds
5. Protections: Short circuit/Overload/Over voltage
6. Fully isolated plastic case
7. Cooling by free air convection
8. UL 1310 Class 2 power unit. pass LPS
9.100% full load burn-in test
10. Low cost. high reliability
11. Suitable for LED lighting and moving sign applications
12.2 years warranty

Description of power supply:
Part NO.: LPV-35
Voltage range: 90-265VAC
Frequency range: 47-63Hz
Efficiency(Typ): 85%
Dimension: 148*40*30mm(L*W*H)
Working Temperature: -30-75°C
Ouput Power: 35W
NW: 0.34Kg
IP Rate: IP67
Short Circuit/Overload Protect 100% full of high temperature aging
Air natural convention cooling
Time between failure: >50000 hours;


Input Voltage	90 ~ 264Vac
Input Frequency	47 ~ 63Hz
Input Current	1.2A/115Vac 1A/230Vac
Inrush Current	30A/115Vac 60A/230Vac, cold start
Leakage Current	0.25mA / 240Vac
Line Regulation	±1.0%
Set Up, Rise Time	500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load (for 5~36V)
	500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V)
Hold Up Time	50ms/230Vac 16ms/115Vac at full load
Over Current Protection	110 ~ 150% rated output power
	Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection	Shut down o/p voltage, re-power on to recover
Working Temperature	-30°C ~ +70°C (Refer to output load derating curve)
Working Humidity	20 ~ 90% RH non-condensing
Storage Temperature, Humidity	-40°C ~ +80°C, 10 ~ 95% RH
Temperature Coefficient	±0.03%/°C (0 ~ 50°C)
Vibration	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Withstand Voltage	I/P-O/P:3KVAC
Isolation Resistance	I/P-O/P:>100M Ohms/500VDC 25°C 70%RH
Safety Standards	UL1310 Class 2, CAN/CSA C22.2 No. 223-M91(except for 5V,48V), IP67 approved,
	Design refers to TUV EN60950-1, EN61347-2-13
EMC	Compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3;
	EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
MTBF	732Khrs min. MIL-HDBK-217F (25°C)

Our Service

Famous brand + Quality Assurance + Fast Delivery + Satisfied Customer Service
1. We supply real MEANWELL brand, products approved by UL, CE, CB, RoHS, etc.
2. We will find the cheapest and reliable shipping term and show you the freight charge and shipping time.
  Regarding to the urgent order, quick shipping term and freight will be advised to you for consideration.
3. Delivery time is guaranteed. For our standards products, we usually have stocks for prompt delivery of small/medium quantity orders.
  For large quantity or new product orders, 3-5 weeks lead-time is needed.
4. Warranty details. Our company will repair the goods according to our warranty period.
