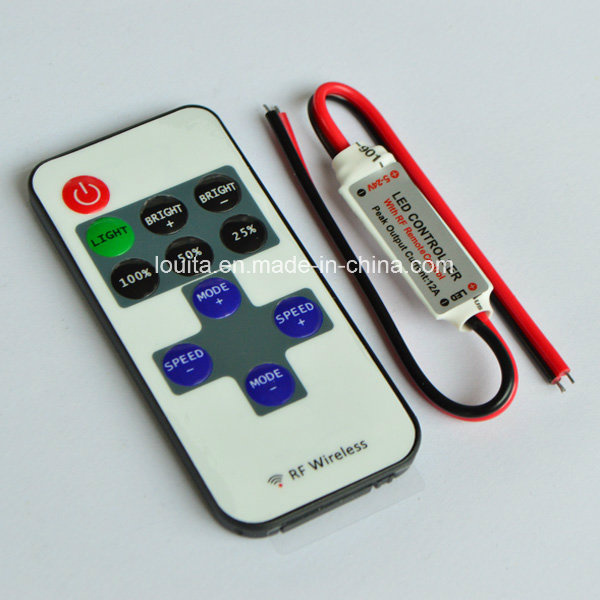

LED Single Color Strip Remote Control

Name: LED Single Color Strip Remote Control
Brand: all-electronics-online.com
SKU: 795674585
Availability: InStock
Rating: 4.7 (73 reviews)

Price:	US $ 2.36-2.4/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-mini RF
Weight:	50g/PCS
Max. Load Power:	144W
Work Temperature:	-20~+60degree
Output Control:	3 Channels
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AA Battery

Product Description

Basic Info
Certification: CE,RoHS
Output Control: 3 Channels
Trademark: louita
Specification: CE, RoHS, UL Certified
HS Code: 9405409000
Type: LED Controller
Working Voltage: DC 5-24V
Connect Mode: Common Anode
Package: Static-Resisted Bay
Origin: Shenzhen, China

Product Description
Specifications:
1 Working Voltage: DC 5-24V

2 Output Control: 3 Channels

3 Output Current: 4A*3, 12V 144W, 24V 288W

4 Connect Mode: Common anode

5 CE, RoHS certified with safety and high quality

Technical Parameters:

Connection type	Common anode	Working Voltage	DC 5-24V
Telecontrol distance	20-30 meters	Certification	CE,RoHS

The RF wireless remote signal can pass through barrier, it gets a longer control distance(about 15 meters at open
area) so it is not necessary to aim at the main unit when operating.

Function buttons on RF remote:
-ON / Standby: to turn ON or switch to standby mode
-MODE+ / MODE-: Dynamic mode adjustment. Switch to dynamic mode from static color mode, or change between dynamic modes.
-SPEED+ / SPEED-: Adjust speed in dynamic mode for 5 levels.
-COLOR+ / COLOR-: Static color adjustment. Swith to static color from dynamic mode,or between static colors, 20 static
colors.
-BRIGHT+ /BRIGHT-: adjust static color brightness. Strip will switch to static color if press it at dynamic mode.
-DEMO: switch to Demo mode. At Demo mode, strip will cycle 9 dynamic modes and 3 times for each mode.

Caution: RF remote is driven by 3V CR2025 button battery. Please try to replace with the same type battery.

Package&Shipping:

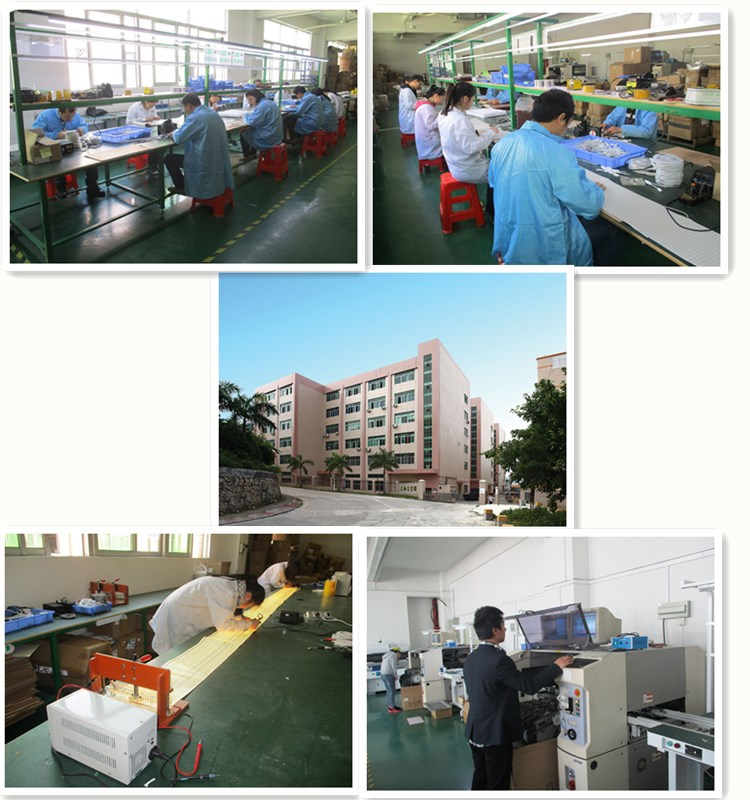

Our Factory:

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
