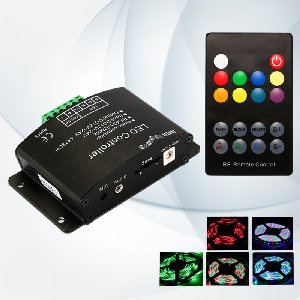

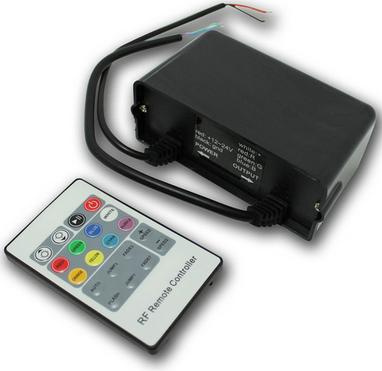

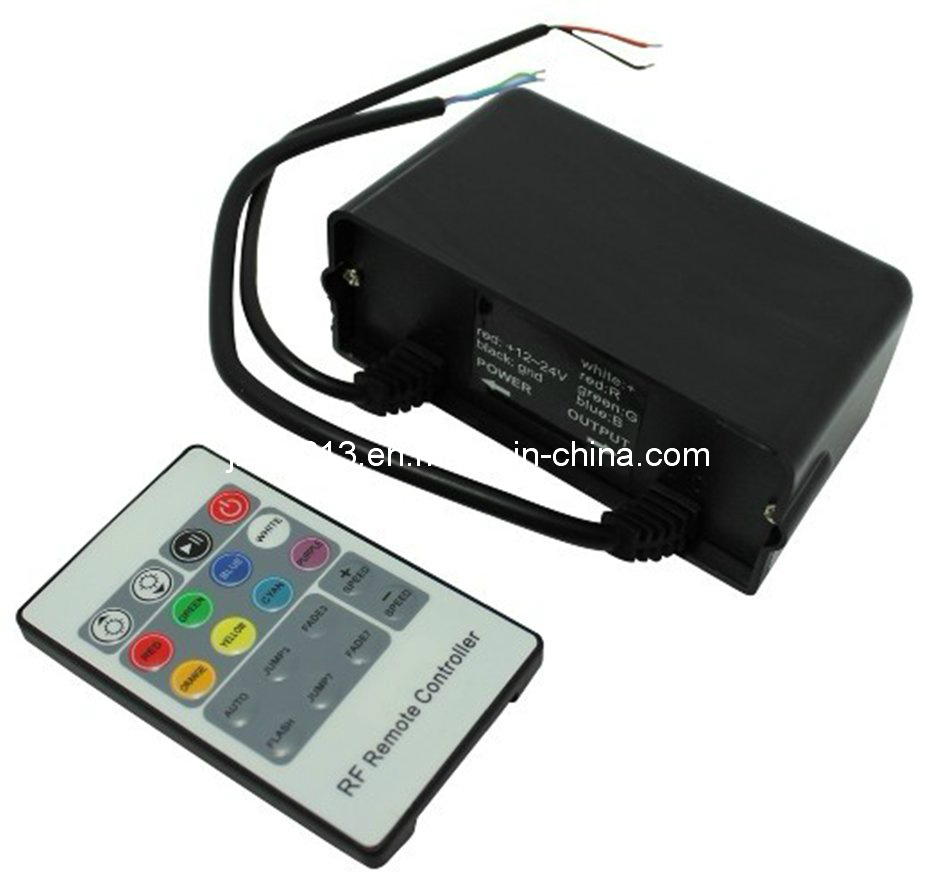

LED Waterproof RF RGB Strip Controller

Name: LED Waterproof RF RGB Strip Controller
Brand: all-electronics-online.com
SKU: 689238132
Availability: InStock
Rating: 4.6 (63 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JA-CON-RF20B(FS)-3CH-LV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Load Power:	288W
Warranty:	1 Year
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button

Product Description

Specifications

RF rgb Controller:
1. Adopt advanced micro-control unit
2. Many dynamic changes
3. Waterproof
4. Easy to use

RF waterproof controller

Summarization
RF waterproof controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Technical parameters
Working temperature: -20-60 ° C
Supply voltage: DC5V, 12V, 18V, 24V (for orders specify voltage)
Output: 3 channels
Connect mode: Common anode
Transmission/receiving frequency: 433MHz
Remote distance: 10~15M
Controller dimension: L108 W76 H43 mm
Remote dimension: L85W52H7 MM
Packing size: L145 W95 H50mm
Net weight: 140g
Gross weight: 175g
Static power consumption: <1 W
Output current: <3A (each channel)
Output power: 5 V: <60W, 12V: <144W, 24V: <288W

Button	Button d escription	remarks
	ON/OFF	you could turn on or turn off the output of controller
	Play/Stop	Play or stop led changing, easy to observe led static effect
	Brightness increase	the brightness series will add on ce when you press it
	Brightness decrease	T he brightness series will reduce once when you press it
RED	Static red	Brightness is adjustable,Speed is unadjustable.
GREEN	Static Green
BLUE	Static Blue
WHITE	Static white
ORANGE	Static Orange
YELLOW	Static Yellow
CYAN	Static cyan
PURPLE	Static purple
AUTO	Automation	Moving all the modles automationly
JUMP3	3 Color step change	Speed and brightness are adjustable
FADE3	3 Color fade change	Speed is adjustable,brightness is unadjustable
SPEED +	Speed increase	The speed will add once when you press it.
FLASH	S even colors flash frequency	Speed and brightness are adjustable
JUMP7	7 Color step change	Speed and brightness are adjustable
FADE7	7 Color fade change	Speed is adjustable,brightness is unadjustable
SPEED -	Speed decrease	The speed series will reduce once when you press it
