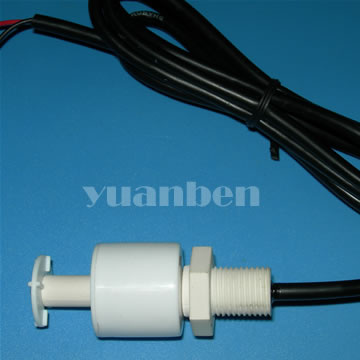

Level Sensors with Plastic Material (LSA-38)

Name: Level Sensors with Plastic Material (LSA-38)
Brand: all-electronics-online.com
SKU: 618138975
Availability: InStock
Rating: 5 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LSA-38

Product Description

Easy installation; Compact size
Highly reliable; Long service life
Use for high level or low level operation
Product Type: LSA-38-1/2-P-1100 Plastic level switches...
Product ID: P/N: LS-170
Product Description: Float level switches combine low cost and reliability, with 3/8""-16UNC-2B mounting threads. Made of PP material.
Specifications
Item
Single point Level switch
Mount mode
(Bottom or top) vertical Mounting
Mounting Threads
1/2-20 UNF-2A
Mounting Attitude
Vertical± 20°
Electrical connection
1100mm length UL1430 AWG22
Special Gravity
0.85g/cm3
Operating Temp. Range
-10~80 degree c
Operating Pressure
1.0Mpa
Float model
Dia. 23 high 21, thought hole dia. 9
Stem Material
PP
Float ball Material
PP
Accuracy
± 2mm in Water
Repeatability
± 1mm in Water
Switch Rating
50VA
Voltage
250Vac, 200Vdc
Contact Mode
N. C. /N. O
Control point
One point
Product Certified
EX, CQC, CE
