Level Switches with Matel Material of Vertical Mounting

Name: Level Switches with Matel Material of Vertical Mounting
Brand: all-electronics-online.com
SKU: 670193141
Availability: InStock
Rating: 4.4 (119 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS-285
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

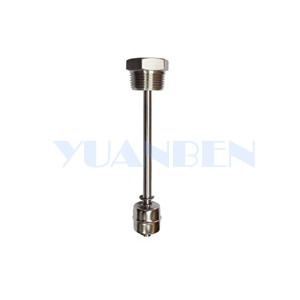

Product Type: LSA-100 vertical mounting level switches
Product ID: P/N: LS-285
Product Description: Made of SUS304 or 316L, Typical installations, such as pipe plug, flange, and thread, Bulkhead etc is selected. Normally closed, or Normally open is selecthigh, low, middle liquid level sensing for almost any application, applied to aerospace, air compressors, buck storage tanks, chemical dispensing systems, commercial restaurant industry, parts washers, power generation equipment, petrol and diesel pumps control and prevent, commercial coffee machine.
Specifications
Parts name
Material and parameter
Housing or stem
SUS304 or 316L
Nut
SUS304 or 316L
Float ball
Stainless steel SUS 316L
Operating pressure
20 Bar(2.0MPa)max
Temperature range
-10~125 degree C
Carry current
1.5A
Switch current
0.5Amax
Switch voltage
200Vdc or 250 V ac
Power rating
50AV
Lead wire
AWG 22, 300mm length, UL1430,
Operating level
As drawing of client
Set point Accuracy
± 2 mm in water
Contact Mode
N. C. /N. O
Control point
One point
Mounting thread
ZG1/2" NPT1" or Flange
Product Certified
EX, CQC, CE

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
