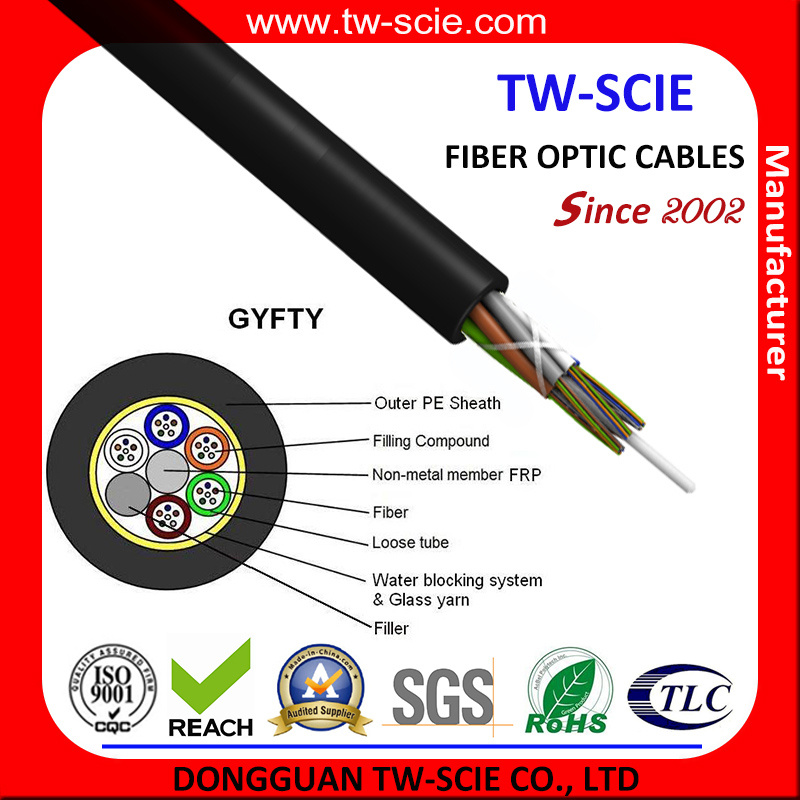

Light Armor 12 Core Single Mode Optic Fiber Cable

Prod Model:	GYFTY 12 Core Single Mode Optic Fiber Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	GYFTY 12 Core Single Mode Optic Fiber Cable
Fiber Count:	12 Core Single Mode Optic Fiber Cable
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Loose Tube Filling Material:	Jerry
Color Of Loose Tube:	Blue,Orange,Green , Brown,Red etc
Central Strength Member:	Non-Metallic
Strength Material:	Glass or Aramid Yarn
Core Moisture Protection Methodology:	Water Blocking Tape or Filling Compound
Installation Style:	Aerial
Application:	12 Core Single Mode Optic Fiber Cable
Certification:	Reach,Tlc,etc
Type:	Single-Mode or Multimode Fiber
Connection Structure:	12 Core Single Mode Optic Fiber Cable
Allowed Lateral Pressure:	Short Term 1500n; Long Term 600n
Allowed Tensile Strength:	Short Term 1000n; Long Term 300n
Core:	2-288 Core
Brand:	Tw-Scie or OEM
Sheath Material:	MDPE / HDPE / LSZH PE

Product Description

GYFTY 12 Core Single Mode Optic Fiber Cable Details:

Product Description
This GYFTY 12 Core Single Mode Optic Fiber Cable are suitable for outdoor aerieal installation. Light armored structure with Amaid Yarn messager makesGYFTY 12 Core Single Mode Optic Fiber Cable reduce itself gravity.

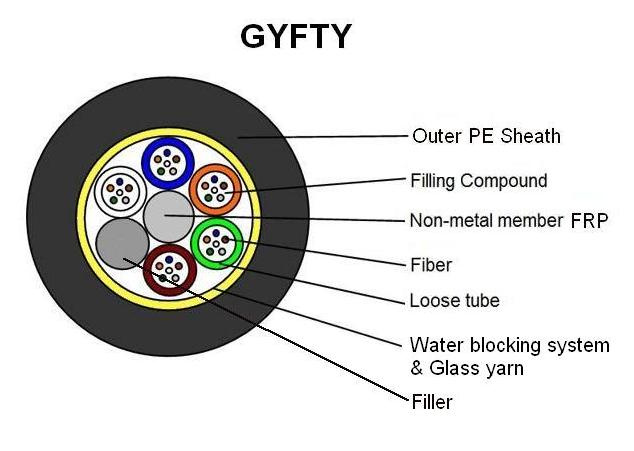

Structure characters:
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
We  can design any kind of structures according to enviromental condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA etc.

Properties:
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.

GYFTY 12 Core Single Mode Optic Fiber Cable Technical data:

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-36	10.4	90	10 times O.D.	20 times O.D.	1500	600	1000	300
38-60	10.2	110
62-72	11.7	115
74-96	13.4	150
98-120	15.0	190
122-144	16.6	230
146-216	16.9	240
218-240	19.3	305
242-288	21.5	375

Applicable Fields:
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.


Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Contact with me for this GYFTY 12 Core Single Mode Optic Fiber Cable.
