| Prod Model: |
NM-8104 |
| Color: |
Depend on Your Requirement |
| Packages: |
Wooden Case out Packing |
| Shipping: |
by Sea |
| Shipping Period: |
14 Working Days Upon Payment Arrived |
| Minimium Order Quantity: |
1 Set |
| Country Of Original: |
China |
| Loading Port: |
Shanghai & Qingdao |
| Model: |
Cls-191 |
| Oversea Sales Service: |
Available |
| Name: |
Limit Switch Used for Passenger Hoist |
Product Description

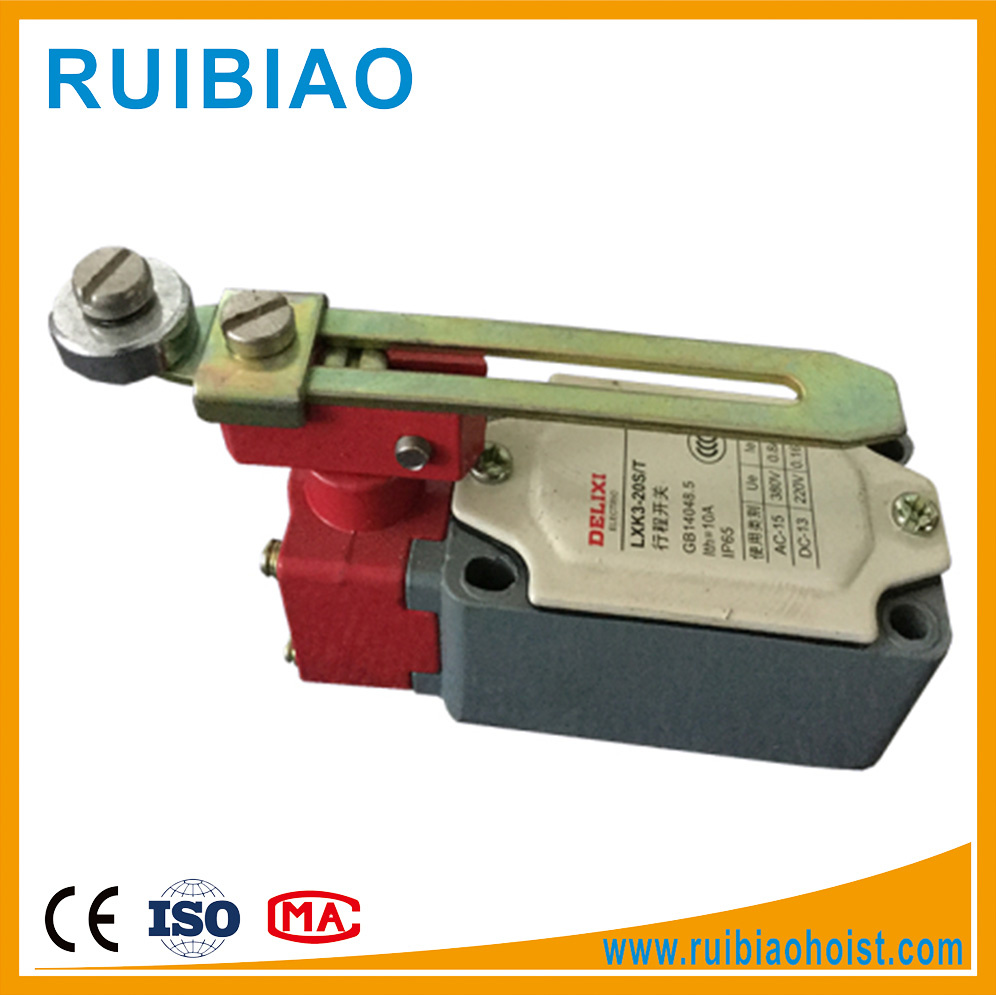

Limit Switch Used for Passenger Hoist
A Limit Switch is to serve at such control circuit as AC50-60Hz, voltage of 380V AC or 220V DC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program. The normal working conditions include an ambient temperature of -25 ~ + 40 , an ambient relative humidity of 90%, an altitude of 2000m and protection degree of IP65.Super september DELIXI LXK3 Ultimate limit switch construction lift promotion It complies with the standard of IEC337-1 and GB14048.5-93 and is certified CCC with number of 20020103005130.

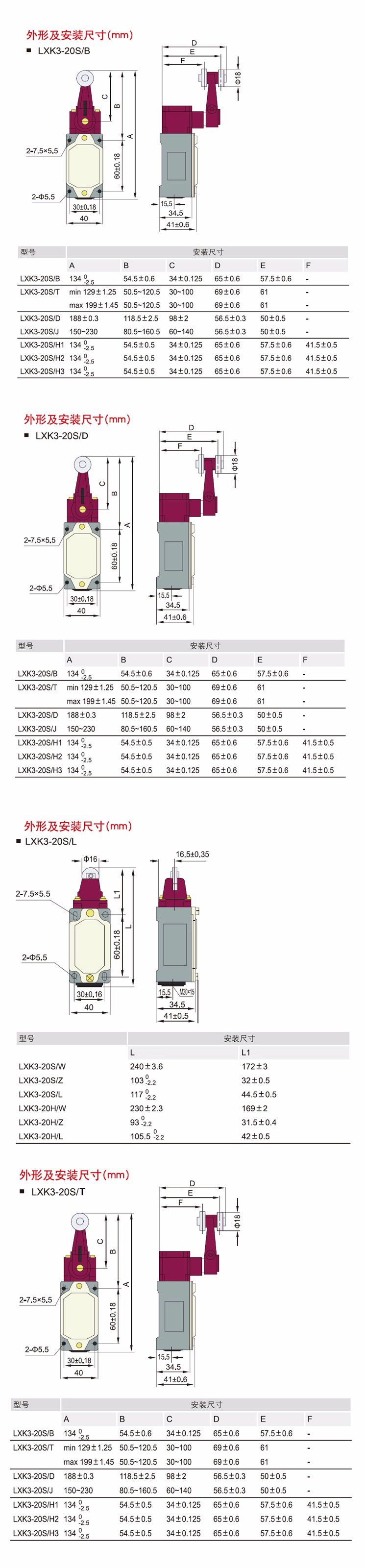

| Main technology data Limit Switch Used for Passenger Hoist |
| Usage | The typical usage of travel switch is to control electrical road net of AC or DC |
| AC-15 | DC-15 |
| Rated working voltage | Rated working current | Rated working voltage | Rated working current |
| Control capacity | 380V | 0.8A | 220V | 0.15A |
| 220V | 1.4A | 110V | 0.3A |
| 110V | 2.8A | | |
| Rated value | Rated insulation voltage Ui-380V,conventional enclosed heating current kh2-10A |
| Protection for short-circuit | Rated fuse current 100ARL1-15/10 |
| Operation frequency | AC 2400 times per hour, DC 1200 times per hour |
| Electrical Life | Electrical life of AC one million and half times, DC three hundred of thousand times |
| Mechanical Life | LXK3-20S.H/H1,H2,H3;LXK3-20S.H/W for 6 million, other for 10 million |
| Repetition precision of action | The different between the maximum(or the minimum)and the mistake no more than 0.05 min in ten times of actions |
| Protection degree of enclosure | IP65 |
| Vibration resistance | Frequency:10-55Hz, Acceleration: 10g ( 90M /S),Swing: 0.75mm |
| Super september DELIXI LXK3 Ultimate limit switch construction lift promotion |

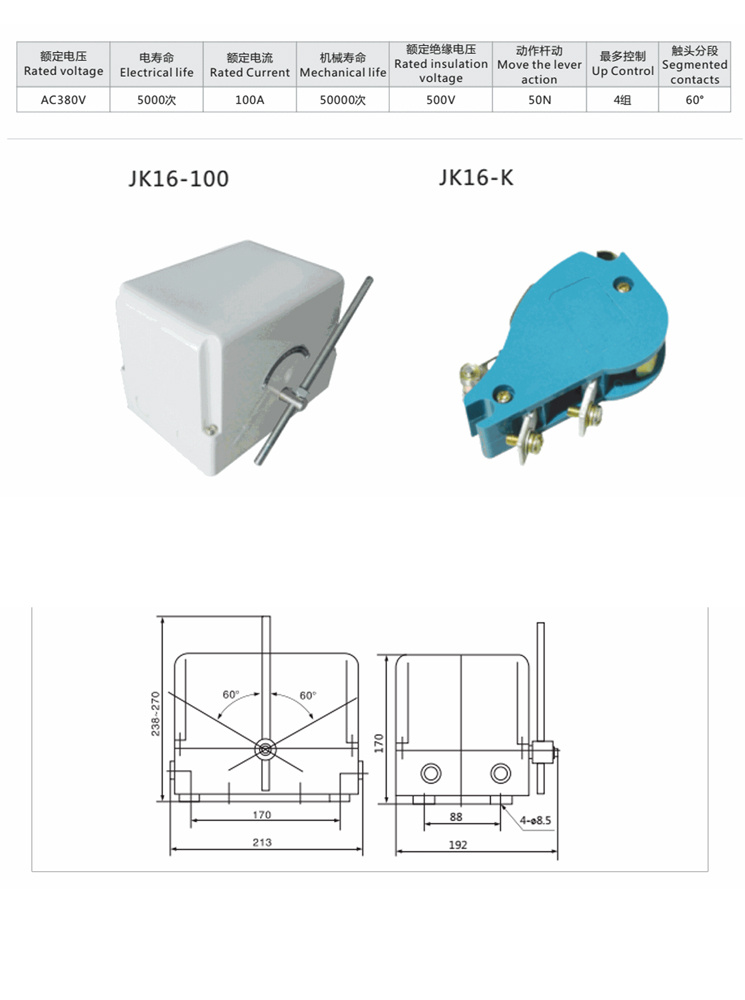

B JK16-100 AC limit switch, mainly applicable to AC 50Hz (60Hz), rated operating voltage (440V), rated operating current of 100A construction hoist power supply circuit. When the limit switch of the elevator is out of action, the switch is used to break the power supply of the elevator to achieve the terminal protection function of the construction hoist.Limit Switch Used for Passenger Hoist
The shell parts of the product are injected by engineering plastics, so that the products are beautiful, solid, high waterproof performance, accurate combination of the internal contact cam, and can meet the terminal protection function of the construction hoist safely.
