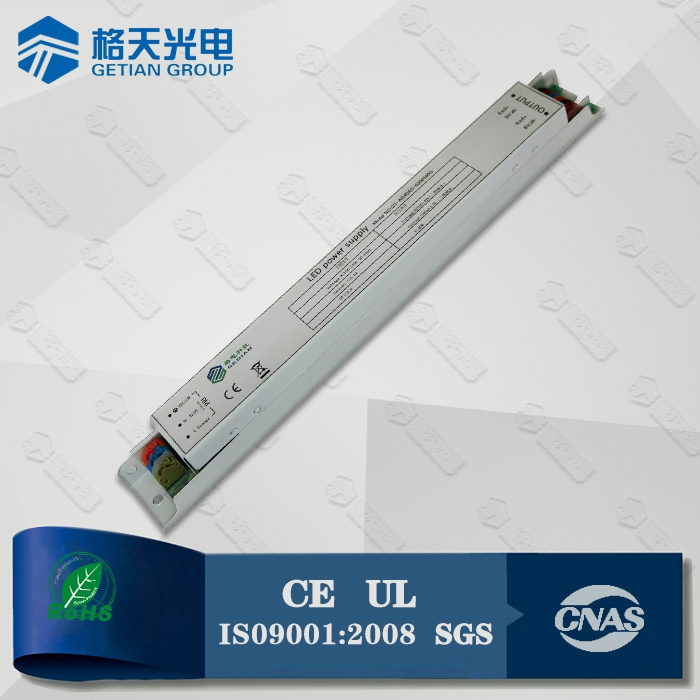

Linear 30W LED Transformer 700mA 30-42V 0-10 Dimmable Driver

Name: Linear 30W LED Transformer 700mA 30-42V 0-10 Dimmable Driver
Brand: all-electronics-online.com
SKU: 797376575
Availability: InStock
Rating: 4.5 (147 reviews)

Price:	US $ 11.8/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GD-ADT40AF
Current:	700-1000mA
Voltage:	30-42VDC
Power:	30-40W
Input Volt:	100-277VAC
PF:	0.9
Effiency:	85%
Weight:	240g
Dimension:	2853027mm
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	100-277VAC
Pack Sealing Size:	2853027mm

Product Description

Linear 30W LED Transformer 700mA 30-42V 0-10 Dimmable Driver

Specification (-10V Dimmable Driver Family)

Model	Input Volt	Output Volt	Output Current	Max Output Power	PF	Efficiency	Weight	Dimension (LWH)/mm
GD-ADT40AF-XXXXXXXG	100-277V	30-42V	700-1000mA	30-40W	≥0.9	85%	240g	2853027
GD-ADT060AG-XXXXXXXG	100-277V	30-42V	1000-1500mA	63W	≥0.9	85%	356g	3553128
GD-ADT060AD-XXXXXXXG	100-277V	30-42V	700-1000mA	30-40W	≥0.9	85%	511g	22110636
GD-ADT060AD-XXXXXXXG	100-277V	30-42V	1000-1600mA	40-67W	≥0.9	85%	511g	22110636
GD-ADT060AE-XXXXXXXG	100-277V	30-42V	700-1000mA	30-40W	≥0.9	85%	271g	1938435
GD-ADT060AE-XXXXXXXG	100-277V	30-42V	1000-1600mA	40-67W	≥0.9	85%	271g	1938435

Features:
1.Famous Brand: Silergy IC
2.3 & 5 & 7 years warranty.
3.BCM; High PF & High Efficiency & Non-flicker
4.With OVP & OSP
5.With soft start
6.Compatible with PWM.RX.0-10V (Extended function: DALI; WIFI)
7.Dimming range 2%-100% with smooth effect.
8.Class I design
9. 0-10V signal at DC/AC side optional (DC side suggested).
10. Different housing available.

Other LED Power Supply Available

Triac Dimmable Driver 8-40W

0-10V Dimmable Power Supply 30-70W

Tube Light Driver 8-40W

DC-DC LED Driver 10-40W

Anti-explosion LED Drivers 24-60W

Waterproof IP67 LED Driver 70-150W
