Linear Hybrid Stepper Motor Hl421

Name: Linear Hybrid Stepper Motor Hl421
Brand: all-electronics-online.com
SKU: 726006385
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL421
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	42mm
Step Angle:	1.8
Phase:	2/4
Screw Dia.(mm):	Tr6.35
Travel Per Step(mm):	-0.0079 0.0158 0.0315
Lead(mm):	1.58 3.17 6.35
Excitation Mode:	HB-Hybrid
Type:	Linear
Number Of Stator:	2/4 Phase
Number Of Poles:	Hybrid Stepper Motor
Operate Mode:	Hybrid Stepper Motor
Brand:	I.CH

Product Description

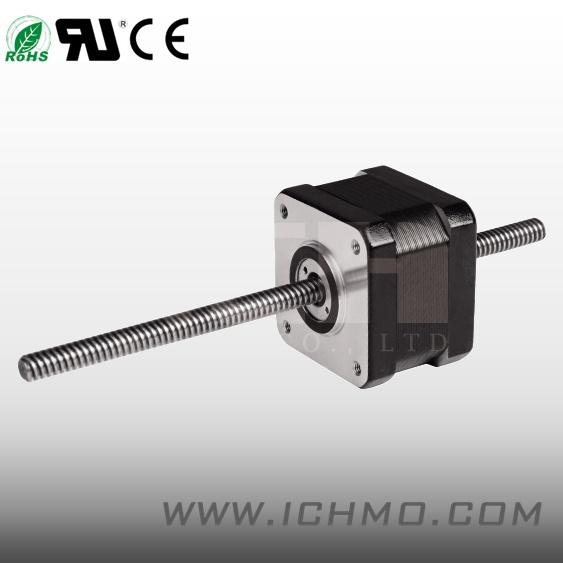

LINEAR HYBRID STEPPER MOTOR

HL421(42mm)
- 1.8°/step
2/4 Phase

Screw Specification
Screw Dia.(mm) ---Tr6.35
Travel Per Step(mm)---0.0079 0.0158 0.0315
Lead(mm)---1.58 3.17 6.35

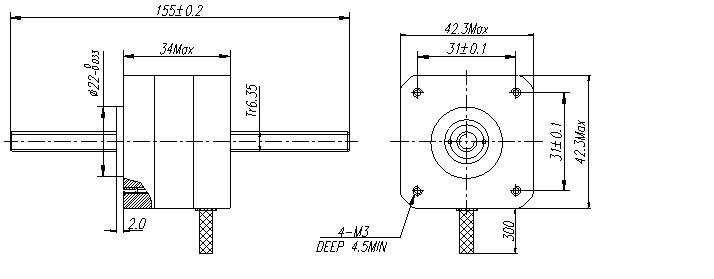

Drawing:

Motor Electrical Specification
Series Model	Step Angle ( o )	L (mm)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (N.cm)	Detent Torque (N.cm)	Lead Wire (NO.)	Motor Weight ( g)
HL421-02813	1.8	34	1.3	2.4	2.8	28	1.6	4	220
HL421-02817	1.8	34	1.7	1.2	1.8	28	1.6	4	220
HL421-02804	1.8	34	0.4	30	35	28	1.6	4	220
