Linear Hybrid Stepper Motor with High Accuracy Hl573

Name: Linear Hybrid Stepper Motor with High Accuracy Hl573
Brand: all-electronics-online.com
SKU: 768751285
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL573
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	57mm
Step Angle:	1.8
Phase:	2/4
Excitation Mode:	HB-Hybrid
Type:	Linear

Product Description

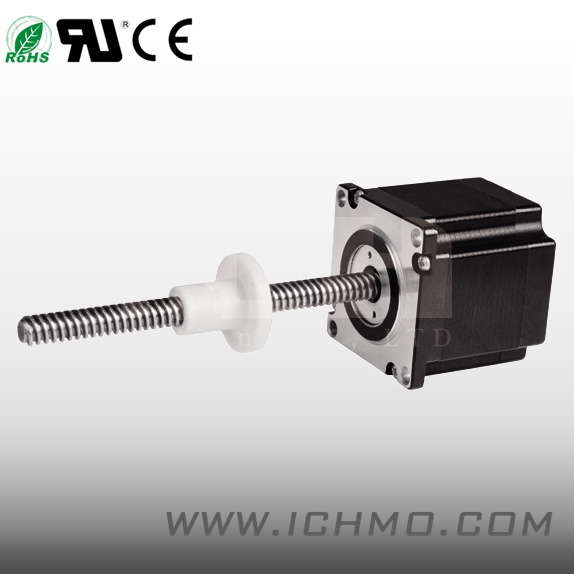

LINEAR HYBRID STEPPER MOTOR

HL573(57mm)
- 1.8°/step
2/4 Phase

Screw Specification
Screw Dia.(mm) ---Tr9.53
Travel Per Step(mm)---0.0127 0.0254 0.0508
Lead(mm)---2.54 5.08 10.16

Screw Dia.(mm) ---Tr8.00
Travel Per Step(mm)---0.0400
Lead(mm)---8

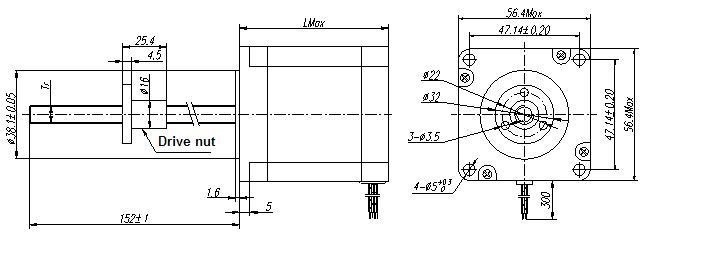

Drawing:

Motor Electrical Specification
Series Model	Step Angle ( o )	L (mm)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (N.cm)	Detent Torque (N.cm)	Lead Wire (NO.)	Motor Weight ( g)
HL573-05520	1.8	41	2.0	1.2	2.5	55	2.5	4	470
HL573-08025	1.8	45	2.5	1.0	2.2	80	2.8	4	520
HL573-11025A	1.8	51	2.5	1.2	3.2	110	2.8	4	520
HL573-11025B	1.8	56	2.5	1.3	4.2	110	3.5	4	680
HL573-11042	1.8	56	4.2	0.4	1.2	110	3.5	4	680
HL573-15025	1.8	64	2.5	1.5	4.5	150	5.0	4	850
HL573-15042	1.8	64	4.2	0.55	1.2	150	5.0	4	850
HL573-18025	1.8	76	2.5	1.8	6.5	180	6.0	4	1050
HL573-18042	1.8	76	4.2	0.6	1.8	180	6.0	4	1050
HL573-25030	1.8	100	3.0	1.4	5.5	250	10	4	1250
HL573-25042	1.8	100	4.2	0.8	3.0	250	10	4	1250
HL573-28030	1.8	112	3.0	1.6	6.8	280	12	4	1400
HL573-28042	1.8	112	4.2	0.9	3.8	280	12	4	1400
