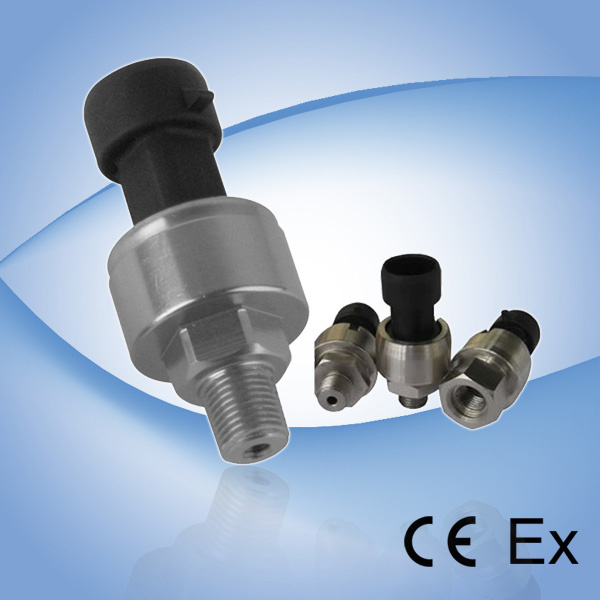

Liquid Pressure Transmitter (QP-88) with Range (0-100bar)

Name: Liquid Pressure Transmitter (QP-88) with Range (0-100bar)
Brand: all-electronics-online.com
SKU: 680969441
Availability: InStock
Rating: 4.7 (30 reviews)

Price:	US $ 58/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-88
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measure Range:	0~1.6......100 Bar
Accuracy:	1.0 (-20~85°c), 2.0 (-40~+125°c)
Output Signal:	4~20mA;0~10V, 1~5V, 0~5V, 0~20mA
Power Supply:	12~36(Standard 24VDC)
Application:	Measuring The Gases and Liquid
Measuring Medium:	Gas and Liquid

Product Description

Model:QP-88

Range:0~1.6......100 bar

Feature:

1.The silica pressure resistance technology

2.High accuracy, good stability

3.Various output scheme: 0.5~2.8 Vdc, 0.5~4.5 Vdc,0.5~5/10 Vdc

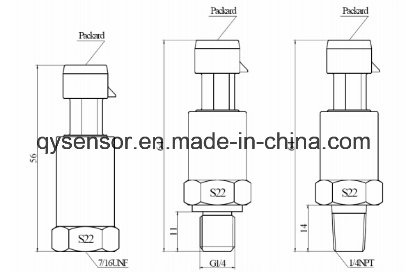

Dimensions: (unit: mm)

Technical Specifications

Measuring media	non-corrosive and non-conductive gases or dilute liquids
Measuring ranges	bar	0~1.6,0~2.5,0~4,0~6,0~10,0~16,0~25,0~40,0~60,0~100
Pressure type	NA	Gauge (G)
Excitation voltage	Vdc	3	5 (standard)	9,,30
Output signal	Vdc	0.5~2.8	0.5~4.5(standard)	0~5,or 0~10
Accuracy	%FS	1.0 (-20~85°C), 2.0 (-40~+125°C)
Long-term stability	%FS /year	±0.25
Response time	ms	1
Power dissipation	mA	2 (Model)
Insulation resistance	MΩ	>500 @ 100 Vdc
Operating temp.	°C	-40~+125, OR-40~+145
Storage temp.	°C	-40~+125
Pressure connection	3/8UNF (standard),NPT1/4,M12×1.5
Electrical connection	connector	3-pin connector (Packard 12065287)
Environment protection	IP rating	IP 65
Material (wetted parts)	316L SS
Overload pressure	%FS	200

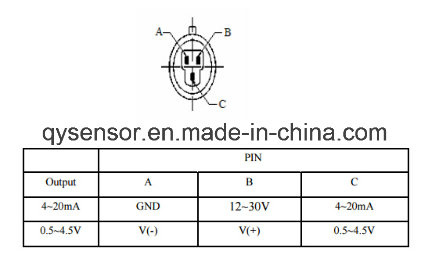

Electrical connection:
