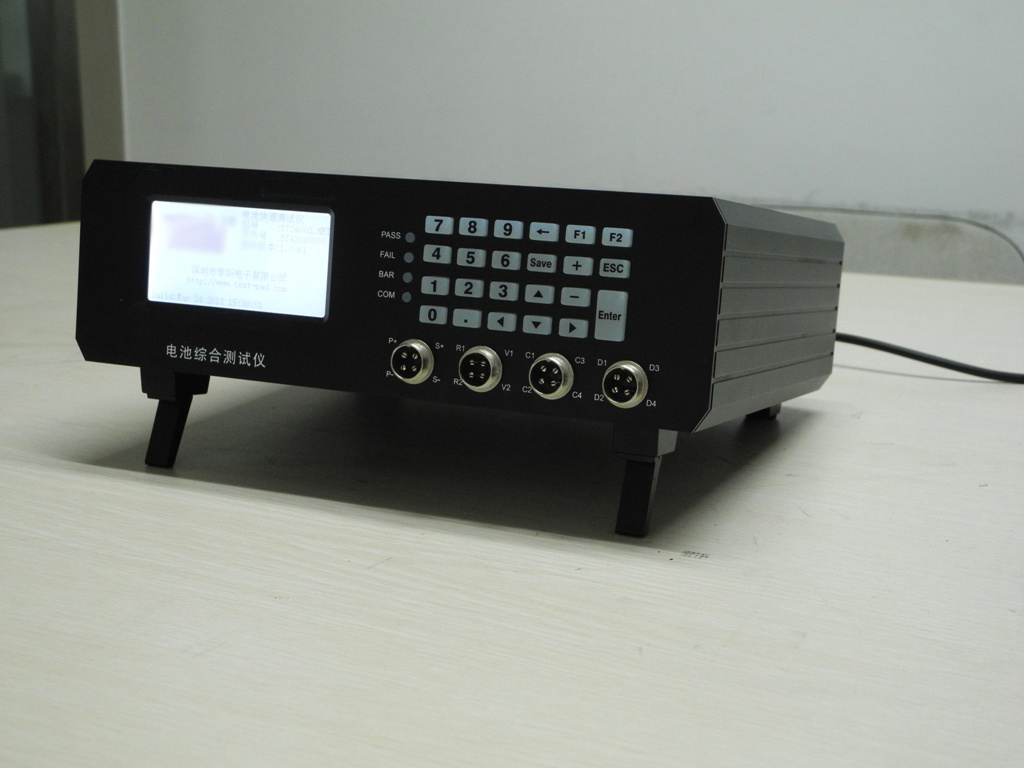

Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing

Name: Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing
Brand: all-electronics-online.com
SKU: 696396432
Availability: InStock
Rating: 4.7 (112 reviews)

Price:	US $ 3000-3200set
Trade Terms:	FOB,CFR,EXW
Min Order:	1set
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN-4002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Provide:	All Set of Battery Machine
Channel:	8 Channel
Test Region:	Internal Resistance
Type:	Moblie Phone Battery and Notebook Battery Tester

Product Description

Battery Integrated Tester GN-4002 battery quick testing process, the main support for the following functions:

1, the initialization of the battery (charging)
2, the battery load voltage measurement
3, battery AC resistance measurement
4, the battery discharge performance test
5, battery discharge protection function detects overcurrent
6, the battery short-circuit protection function tests
7, the battery charging performance detection Detection
8, the resistance (to identify resistors, thermistors, VFR or CFR resistance) test
9, the auxiliary battery voltage (eg HDQ voltage) detection
10, the insulation resistance testing

2. Specification

Supply voltage: 220V ± 10% 50Hz-60Hz
Power consumption: 50W maximum
Weight: Weight 3.7Kg
Instrument Size: 260mm × 290mm × 110mm (LWH)
Package size: 360mm × 360mm × 160mm (LWH)

Item	Test range	Resolution	Accuracy
battery voltage	0-10V	0.0001V	±( 0.05%RD+0.2mV)
battery voltage	0-20V	0.0001V	±( 0.05%RD+0. 3 mV)
Internal Resistant	0- 1 000mΩ	0.1 mΩ	±(0. 1%RD+0.5m Ω )
Electric current	0-15A	0.001A	±( 0. 1 %RD+ 5 mA)
Resistance	0-1KΩ	0.001 KΩ	±( 0.5%RD+0.005 KΩ )
	1KΩ-10 KΩ	0.001 KΩ	±( 0.5%RD+0.005 KΩ )
	10 KΩ-100 KΩ	0.01 KΩ	±( 0.5%RD+0.05 KΩ )
	100 KΩ-1MΩ	0.1 KΩ	±( 0.5%RD+0.5 KΩ )
Boost Voltage	0-5V	0.0001V	±( 0.1%RD+0.001V)
Insulated resistance	0-100 MΩ	0.01 MΩ	±(0. 1%RD+0.05M Ω )

Gelon (Int) LIB Group Ltd. was set up as a manufacturer and exporter in 2007, dealing with lithium battery materials, equipments, technology, etc. Now we have Gelon New Battery Materials Co., Ltd., E-Battery Lithium Battery Co., Ltd., Linyi Dake Trading Co., Ltd., with total manufacturing facilities of around 100, 000 square meters and more than 500 staff. Owning a group of experienced engineers and staff, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy.

Gelon New Battery Materials Co., Ltd. Focus on R&D, manufacturing and sales of new materials (anode, cathode, separator, additive etc. ) for lithium ion battery, and we also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LiFePO4), Lithium Manganese Dioxide(LiMn2O4), Lithium Cobalt Oxide(LiCoO2), Lithium Nickel Manganese Cobalt Oxide(LiNiMnCoO2), Lithium Titanate Oxide(LTO) materials; Graphite materials (MCMB) and separator and so on for new power lithium ion batteries.

Meanwhile, we have our own lithium ion battery factory- E-Battery Co., Ltd., mainly produces lithium ion battery for camera, mobile, EV application. Based on the factory, we can offer all services (Raw Materials, Equipments, Technology, etc. ) for full set of lithium battery producing line to help clients to establish a factory of lithium battery.

Our group also has a subsidiary exporting company -- Linyi Dake Trade Co., Ltd, mainly deals in all exporting business of group. We have a professional and experienced exporting team to supply perfect services for you. Through trading company, all of our products and services such as materials, equipments, technology, etc. Will be offered to clients from all over the world.

We are confidence on our quality and service. And we ensure that we will offer you the best services based on our specialty and empressement. Our aim is to be the comprehensive company dealing with one-stop services of lithium battery in the world.

Welcome batteries manufacturers all over world visit our company, and your inquiry will be appreciated.
