Lm18-3008 PNP No Inductive Proximity Sensor

Name: Lm18-3008 PNP No Inductive Proximity Sensor
Brand: all-electronics-online.com
SKU: 817230335
Availability: InStock
Rating: 4.3 (128 reviews)

Price:	US $ 2.60/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM18-3008
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	NPN (',Three-Wires)
Standard:	Standard
Application:	Basement
Size:	120 Type
Certification:	CE

Product Description

Kampa LM12-3004NA inductive proximity sensor

A. SPECITICATION of proximity sensor :

Model NO.	Detection distance	Working voltage	Output		Flush
Model NO.	Detection distance	Working voltage	Form	State	Flush
LM18-3005NA	5mm	DC6-36V AC90 -250V	NPN	NO	Flush
LM18-3005NB				NC
LM18-3005NC				NO+NC
LM18-3005PA			PNP	NO
LM18-3005PB				NO
LM18-3005PC				NO+NC
LM18-3005LA			Two wire system	NO
LM18 -3005LB			Two wire system	NC
LM18 -2005A			SCR Control label silicon	NO
LM18-2005B				NC
LM18 -2005C				NO+NC
LM18-3008NA	8mm	DC6-36V AC90-250V	NPN	NO	Non-flush
LM18-3008NB				NC
LM18-3008NC				NO+NC
LM18-3008PA			PNP	NO
LM18-3008PB				NC
LM18-3008PC				NO+NC
LM18-3008LA			Two wire system	NO
LM18 -3008LB			Two wire system	NC
LM18 -2008A			SCR Control label silicon	NO
LM18-2008B				NC
LM18 -2008C				NO+NC

1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)

2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)

3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)

5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output)

6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement)

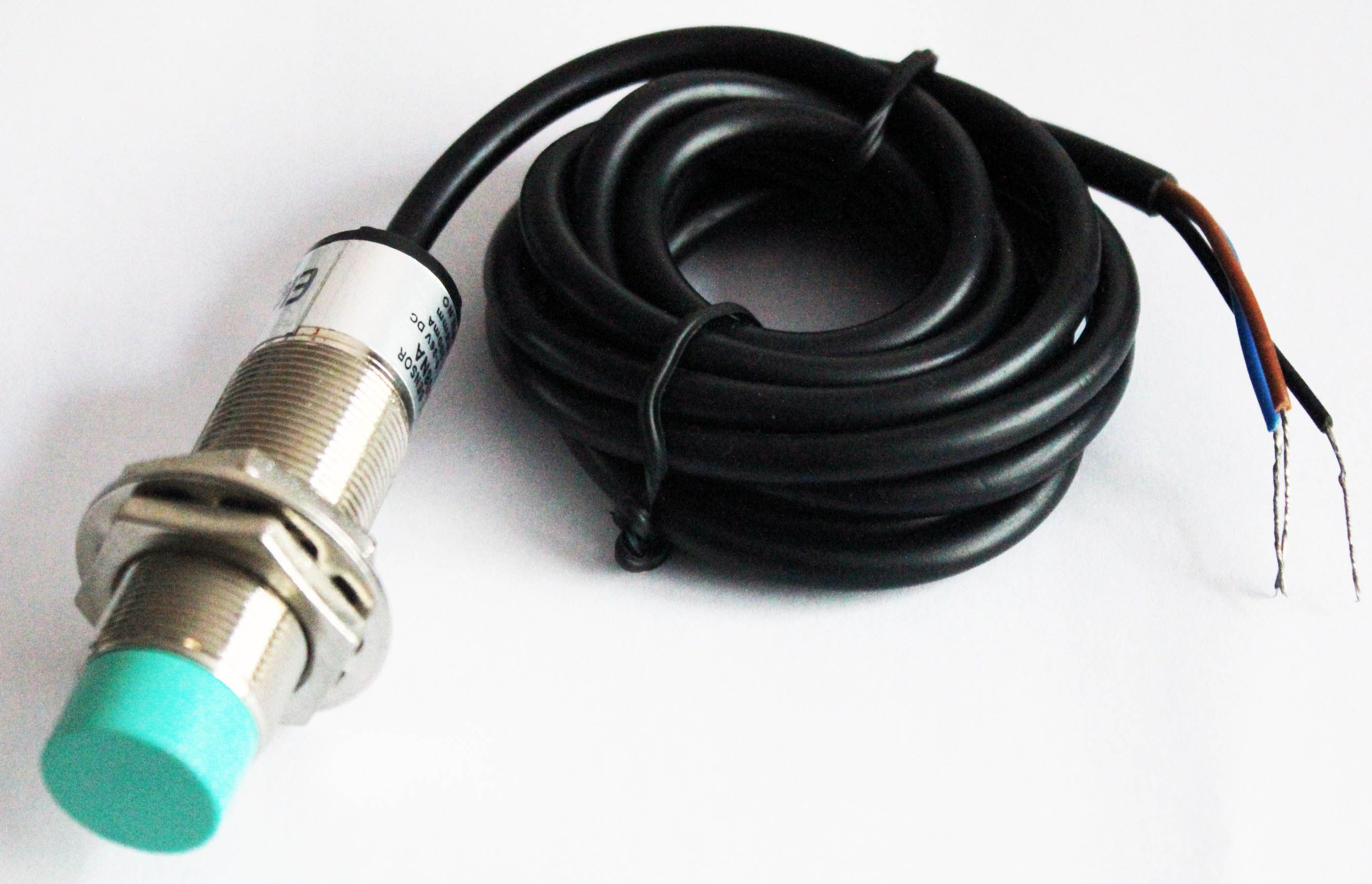

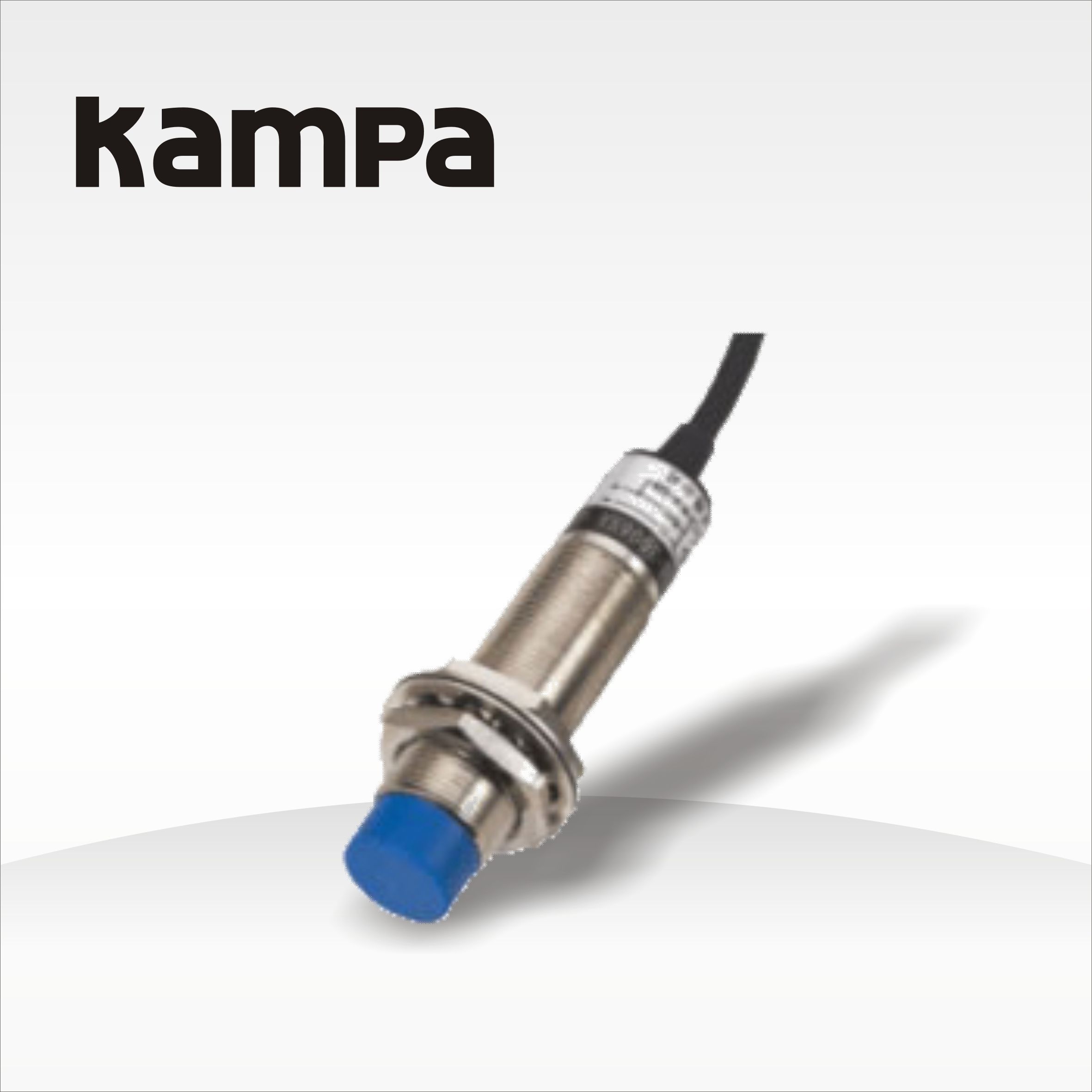

B. Product photo of proximity sensor LM18

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
