Lm8 Non-Flush Type 2mm Detection Inductive NPN PNP Proximity Sensor

Name: Lm8 Non-Flush Type 2mm Detection Inductive NPN PNP Proximity Sensor
Brand: all-electronics-online.com
SKU: 825551215
Availability: InStock
Rating: 5 (101 reviews)

Price:	US $ 2.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	lm8-3002na
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	NPN (',Three-Wires)
Standard:	Standard
Application:	Basement
Size:	86 Type
Certification:	CE

Product Description

LM8 Non-Flush type 2mm detection Inductive NPN PNP Proximity Sensor

A. SPECITICATION of proximity sensor :

Model NO.	Detection distance	Detection distance	Output		Flush
Model NO.	Detection distance	Detection distance	Form	State	Flush
LM8-3001NA	1mm	DC6-36V	NPN	NO	Flush
LM8-3001NB	1mm	DC6-36V	NPN	NC	Flush
LM8-3001PA	1mm	DC6-36V	PNP	NO	Flush
LM8-3001PB	1mm	DC6-36V	PNP	NC	Flush
LM8-3001LA	1mm	DC6-36V	Two wire system	NO	Flush
LM8 -3001LB	1mm	DC6-36V	Two wire system	NC	Flush
LM8-3002NA	2mm	DC6-36V	NPN	NO	Flush
LM8-3002NB	2mm	DC6-36V	NPN	NC	Flush
LM8-3002PA	2mm	DC6-36V	PNP	NO	Non-flush
LM8-3002PB	2mm	DC6-36V	PNP	NC	Non-flush
LM8-3002LA	2mm	DC6-36V	Two wire system	NO	Non-flush
LM8 -3002LB	2mm	DC6-36V	Two wire system	NC	Non-flush
LM8 -2002A	2mm	AC90-250	SCR Control	NO	Non-flush
LM8 -2002A	2mm	AC90-250	label silicon	NO	Non-flush

SENSOR INTRODUCTION.:

1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)

2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)

3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)

5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output)

6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement)

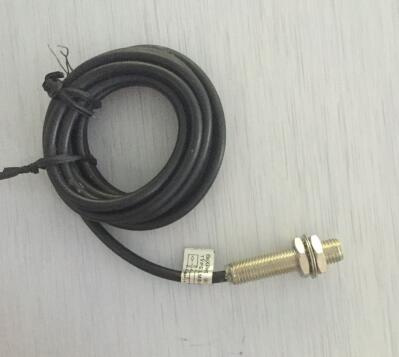

B. Product photo of proximity sensor LM8
