| Prod Model: |
BIC1223R1.9 |
| Surface Finish: |
HASL Lead Free |
| Legend Color: |
White |
| Board Thick: |
0.6mm |
| Solder Mask Color: |
Green |
| Copper Thick: |
1.0 Oz |
| Minimum Trace and Space: |
7 Mil/ 7.6 Mil |
| Minimum / Maximum Holes: |
0.5/1.0m |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100%Electricalc Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

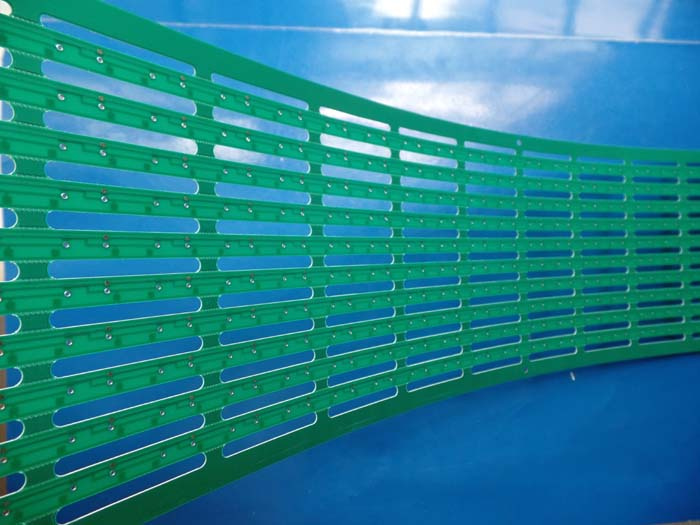

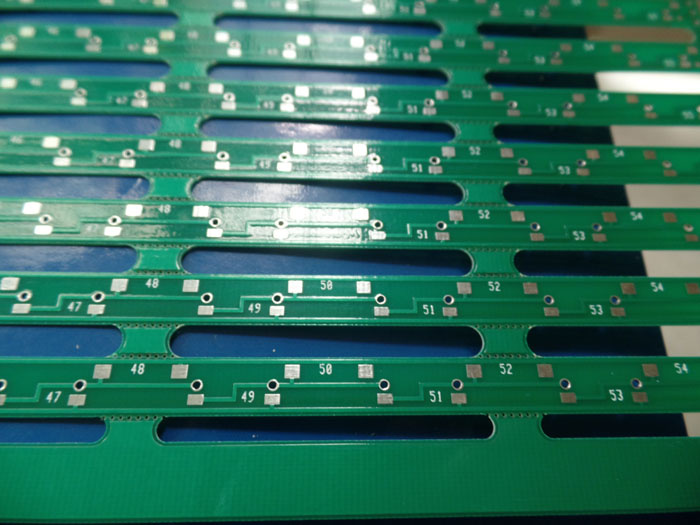

Double Sided Printed Wire Circuit Board Long strip At 0.6mm Thick With HASL Lead Free
Applied In Sensor Switch
Commodity Introduction
This is a type of FR-4 PCB for the application of Sensor Switch. It's a 2 layer board at 0.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

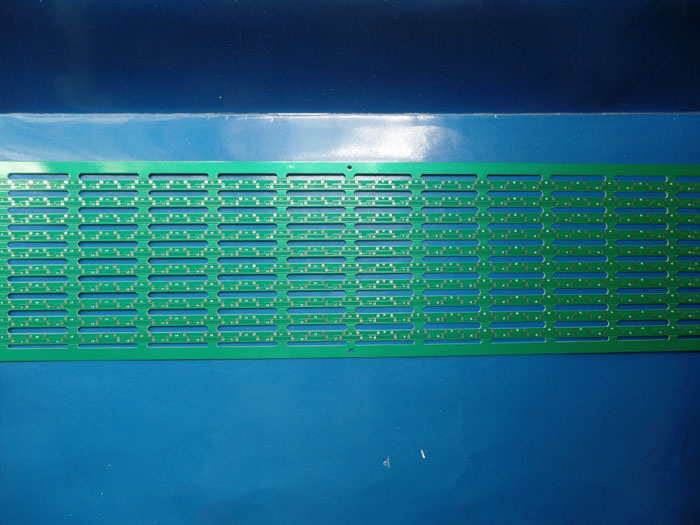

Parameters & Data Sheet| PCB SIZE | 725 x 147mm=10PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | no |
| LAYER STACKUP | copper ------- 18um(0.5oz)+PLATE |
| FR-4 0.6mm |
| copper ------- 18um(0.5oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7mil/7.6mil |
| Minimum / Maximum Holes: | 0.5/1.0mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 135 |
| Number of Milled Slots: | 11 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140, TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | HASL ,Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. Peelabel mask. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Sensor switch, Access Control
GPS Vehicle Tracker
Step Down Converter
GPS Reviews
Security Equipment |
TYPE OF ARTWORK TO
BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
