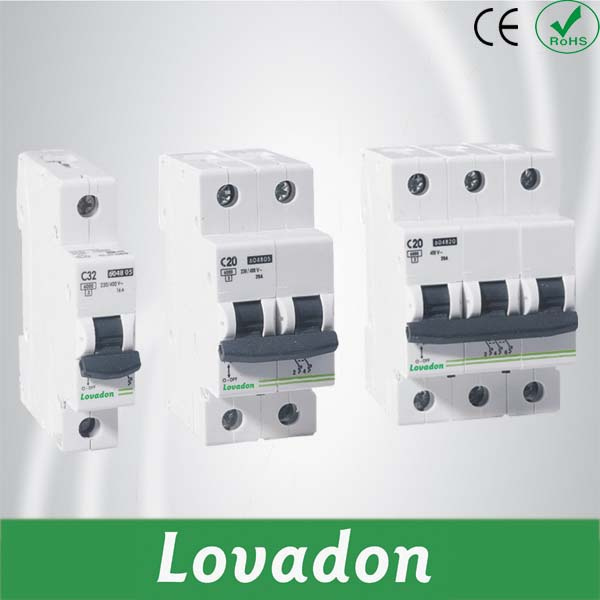

Lovadon Lcb3-63 Circuit Breaker 7 Days Delivery for One Container

Name: Lovadon Lcb3-63 Circuit Breaker 7 Days Delivery for One Container
Brand: all-electronics-online.com
SKU: 684055762
Availability: InStock
Rating: 4.9 (114 reviews)

Price:	US $ 0.9-1.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LCB3-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1.8cm
Carton:	240PCS
Weight:	115g
Box:	12PCS
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Certification:	CE
Installation:	DIN Type
Poles Number:	1p,2p,3p,4p

Product Description

10 KA according IEC 60947-2 and IEC 60947-4
1. Specifications
Standard: IEC/EN 60898-1
Electrical
Features Rated current InA1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
PolesP1, 2, 3, 4
Rated voltage UeV220/380 230/400 240/415
Insulation voltage UiV500
Rated frequencyHz50/60
Rated breaking capacityA4500/6000
Energy Limiting class

	1.Specifications
	Standard		IEC/EN 60898-1
Electrical features	Rated current In	A	1,2,3,4,6,10,16,20,25,32,40,50,63
	Poles	P	1,2,3,4
	Rated voltage Ue	V	220/380 230/400 240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500/6000
	Energy Limiting class		3
	Rated impulse withstand voltage(1.2/50) Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1min	kV	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B,C,D
Mechanical features	Electrical life	t	8000
	Mechanical life	t	20000
	Contact position indicator		Yes
	Protection degree		lP20
	Reference temperature for setting
	of thermal element	C	30
	Ambient temperature	C	From -5~+40
	(with daily average < 35 )
	Storage temperature	C	-25~+70
Installation	Terminal connection type		Cable U / Pin-type busbar
	Terminal size top /bottom for cable	mm2	25
		AWG	18~3
	Terminal size top/bottom for busbar	mm2	25
		AWG	18~3
	Tightening torque	N*m	2
		ln-Ibs	22
	Mounting		On DIN rail EN 60715(35mm)by means fast clip device
	Connection		From top and bottom

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
