| Prod Model: |
QP-88B |
| Pattern: |
Silicon Piezoresistive |
Product Description

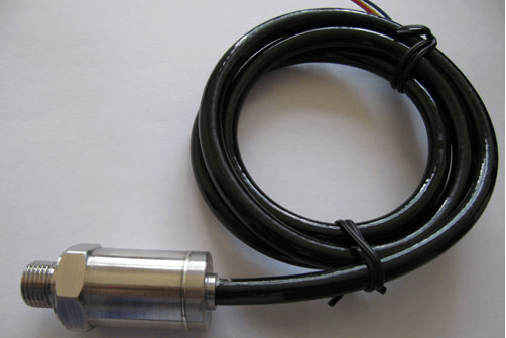

Model: QP-88B pressure sensor
Range:0~3000 PSI
Feature:
Piezoresistive technology
High accuracy, good stability
Small size, nice appearance
Anti-shock
Various output scheme: 0.5~2.8 Vdc, 0.5~4.5 Vdc, 0.5~5/10 Vdc, and 4~20mA
Dimensions: (unit: mm)
Technical Specifications:
Measuring media | Non-corrosive and non-conductive gas or dilute liquid |
Measuring ranges | PSI | 0~3000 |
Pressure type | NA | Gauge (G) |
Excitation voltage | Vdc | 3 | 5 (Standard) | 9,…,30 |
Output signal | Vdc | 0.5~2.8 | 0.5~4.5(Standard) | 0~5,or 0~10 |
mA | 4~20mA (12~36Vdc, Standard 24Vdc) |
Accuracy | %FS | ±0.5(Standard), ±1(Max) |
Response time | ms | 10 mSec at 63% full Scale |
Shock | 75G, 1/2 sina wave |
Insulation resistance | MΩ | >500 @ 100 Vdc |
Operating temp. | ºC | -20~+80 |
Storage temp. | ºC | -40~+100 |
Pressure connection | 1/8NPT, NPT1/4, 3/8 UNF, M12×1.5(Can be chosen by the customer) |
Electrical connection | Direct line |
Environment protection | IP rating | IP 66 |
Material | Housing Material | Stainless steel(1Cr18Ni9Ti) |
Material of diaphragm | 316L Stainless steel |
Overload pressure | %FS | 200 |
Packaging & Shipping
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
Our Services
1. OEM/ODM Services:
Our company provides OEM/ODM services and Customized products services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
What's your requirement?
2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.
