Low Cost, Jc-Cw02 Diffused Silicon Sensor, Piezoresistive Silicon Pressure Sensor, Air Gas Sensor

Name: Low Cost, Jc-Cw02 Diffused Silicon Sensor, Piezoresistive Silicon Pressure Sensor, Air Gas Sensor
Brand: all-electronics-online.com
SKU: 835886835
Availability: InStock
Rating: 4.3 (114 reviews)

Price:	US $ 18-86/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JC-CW02
Output Signal Type:	Mv
Thread Type:	Customized
Wiring Type:	Four Core

Product Description

Introduction

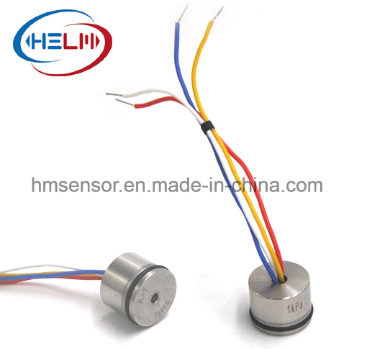

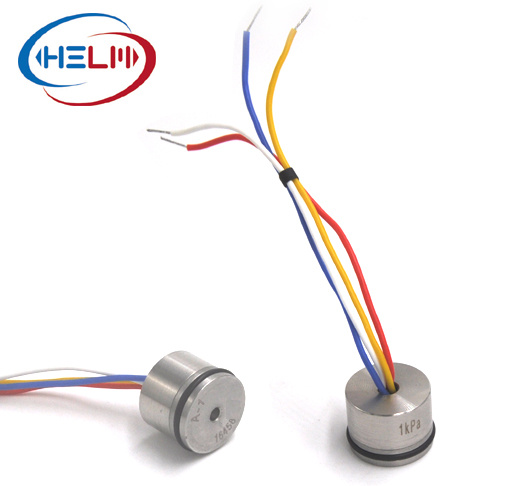

JC-CW02 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element.Each sensor was strictly temperature compensated for both zero and span.There are two options of excitation power -- current and voltage.

Features and Application
Features: Applications:
◊Low cost OEM ◊Process control
◊Pressure range:0-30Kpa,customized ◊Refrigeration equipment and air-conditioning system.
◊Wide operable temperature range -40-125ºC ◊Medical instruments
◊High accuracy ◊Pressure calibration

Specifications
Specifications of current excitation(1.5mA, 25ºC)

Parameter		Min.	Typical	Max.
Accuracy(%FS)
Non-linear	30Kpa	±0.20	±0.30
Hysteresis			±0.05	±0.10
Repeability			±0.05	±0.10
Output(mV)
Zeron Output(FS)		-2	±1	2
Full-scale output(FS)		50
Temperature
Operating temperature(ºC)		-40		125
Compensation temperature(ºC)	30Kpa	0		50
Zero temperature error(%FS)			±0.75	±1.0
Full-scale temperature error(%FS)			±0.75	±1.0
Temperature hysteresis(%FS)			0.1
Long-term stability(±%FS/year)
Zero			0.1
Full-scale			0.1
Supply current(mA)		0.5	1.5	2
Input impedance(kΩ)		2	2.5	3
Output impedance(kΩ)		2.5	3	3.7
Output load resistance(MΩ)		5
Insulation resistance(MΩ/50V)		50

Specifications of voltage excitation(10VDC 25ºC)

Parameter		Min.	Typical	Max.
Accuracy(%FS)
Non-linear	30Kpa		±0.20	±0.30
Hysteresis			±0.05	±0.10
Repeability			±0.05	±0.10
Output(mV)
Zeron Output(FS)		-2	±1	2
Full-scale output(FS)		50	100±1	152
Temperature
Operating temperature(ºC)		-40		125
Compensation temperature(ºC)	30Kpa	0		50
Zero temperature error(%FS)			±0.75	±1.0
Full-scale temperature error(%FS)			±0.75	±1.0
Temperature hysteresis(%FS)			0.1
Long-term stability(±%FS/year)
Zero			0.1
Full-scale			0.1
Supply voltage(VDC)			10	14
Input impedance(kΩ)		6	8	10
Output impedance(kΩ)		2.5	3	3.7
Output load resistance(MΩ)		5
Insulation resistance(MΩ/50V)		50

Measuring Media: clean air and no-corrosive gas

Ordering Guide

JC-CW02 pressure sensor
Model	Descrption
JC-CW02	Dia Φ19mm
	Code	Power Supply
	C	current
	V	voltage
		Code	Pressure Range
		30	0-30Kpa
		XX	Customized
			Code	Pressure Type
			G	Gague Pressure
			A	Absolute Pressure
			SG	Seal Gauge Pressure
				Code	Electrical
				2	Ribbon Cable(90mm as default)
				X	customized

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
