| Prod Model: |
Power Star Series PS8Kw-12Kw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz/60Hz |
| Acceptable Voltage: |
154-273VAC |
| OEM: |
Yes |
| Crest Power: |
3 Times of Rating Power |
Product Description
Low Frequency DC to AC Inverter with High conversion efficiency

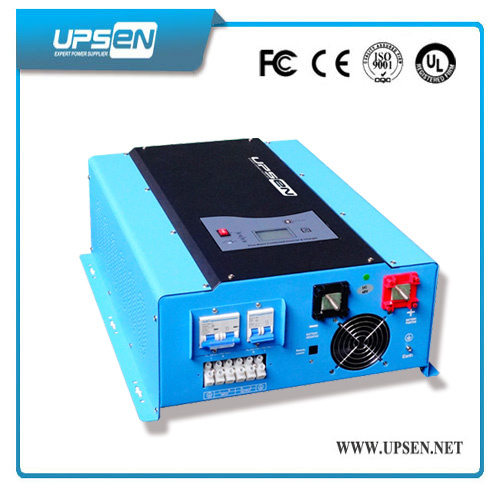

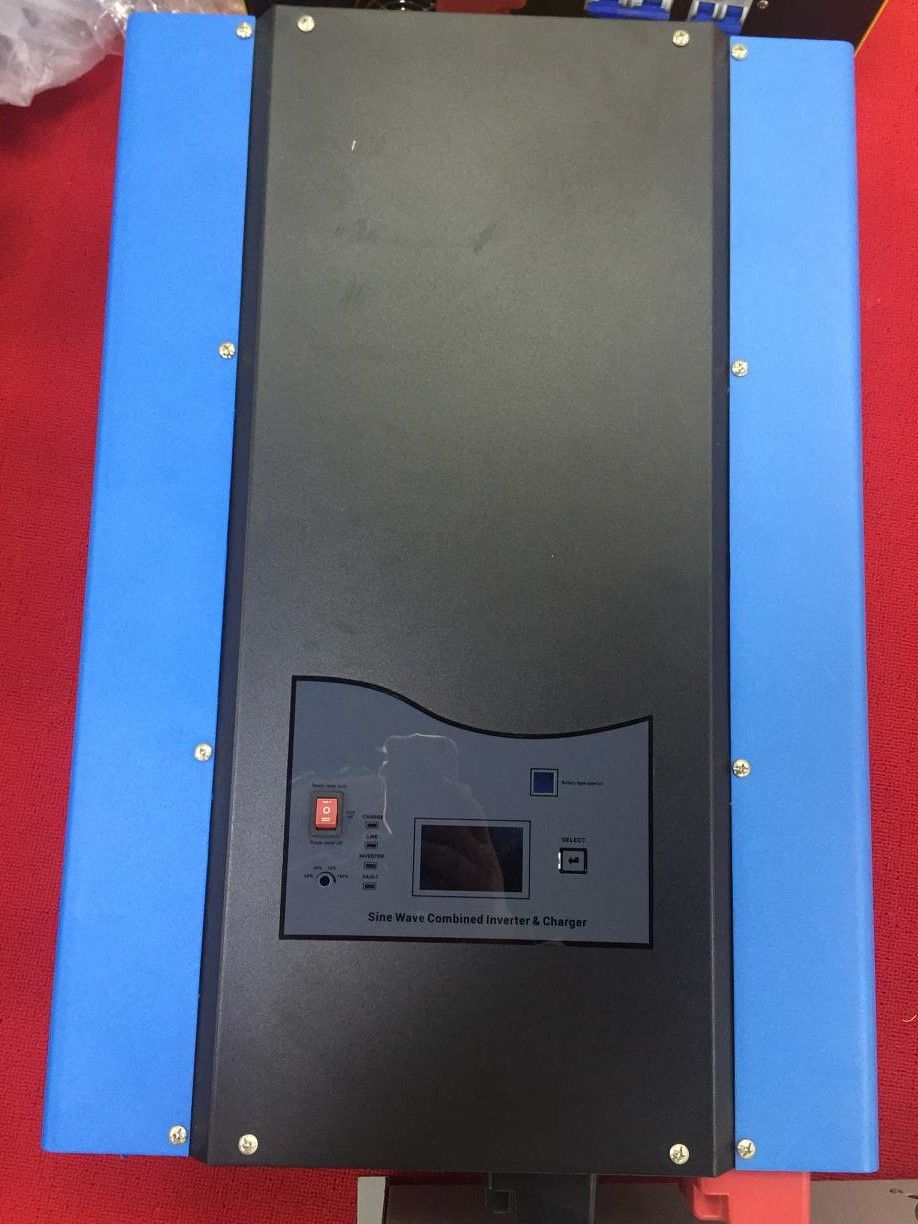

Pure Sine Wave Inverter Charger Power Star Series PS8Kw-12Kw (1ph in/1ph out)
Key Features:
On inverter
1:High conversion efficiency, fast start
2:Simply plug into 12-volt outlet for instant AC power
3:Low quiescent current, selectable sensing cycle to reduce power consumption
On battery charge
1:3-step intelligent battery charging
2:Powerful charge rate up to 100Amp ,selectable charging current
3:8 preset battery type selector plus de-sulphation for totally flat batteries
4:PFC(Power Factor Correction) for charger, less power consumption than conventional units
On Transfer
1:30A/40A through current ability
2:Output voltage regulation optional
3:Input AC voltage range selectable, for different kinds of loads
4:Delay before transfer, extra protections for loads under generator mode
On remote control & other features
1:Ability to switch the unit on/off
2:LCD status display available
3:RS232 communication port optional
4:Ability to select/deselect power saver mode
5:Protection:Low voltage/Over voltage/Over temperature/Overload/Short circuit
Technical Specification
| Power Star Series |
| Model No. | PS8K | PS10K | PS12K |
| Nominal Power | 8KW | 10KW | 12KW |
| AC Input |
| Phase & Waveform | Single Phase & Pure Sine Wave |
| Voltage | 220/230/240VAC |
| Acceptable Voltage | 154-273VAC |
| Line Low Transfer | 154V |
| Line Low Return | 164V |
| Line high Transfer | 273V |
| Line high Return | 263V |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 40Hz |
| Line high Transfer | 80Hz |
| AC Output |
| Phase & Waveform | Single Phase & Pure Sine Wave(bypass mode sync to input) |
| Voltage | 220/230/240VAC (Same as Input on bypass mode) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Crest Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 48V |
| Minimum Start Voltage | 40V |
| Low Battery Alarm | 44V |
| Low Battery Transfer | 40V |
| High Voltage Alarm | 64V |
| Max Charging Current | 75A | 85A | 100A |
| Over Charge Voltage | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 75 Watts |
| Indicators |
| 4-LED Display | Charge, Line, Inverter, Fault |
| LCD Display | Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS232/RJ11(Optional) |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 56 | 64 | 68 |
| Dimension L*W*H(mm) | 549*450*201mm | 584*450*201mm |
| *Specification is subject to change without prior notice. |
