| Prod Model: |
Power Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Line High Transfer: |
273V |
| Line Low Transfer: |
154V |
| Frequency: |
50Hz or 60Hz |
| Crest Power: |
3 Times of Rating Power |
Product Description

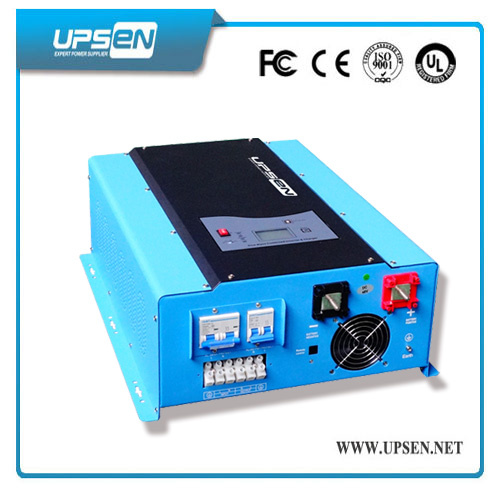

Low Frequency DC to AC Pure Sine Wave Inverter1: Power Inverter inbuilt Super AC Charger
2: Sine Wave Inverter with Single Phase 220V 230V 240Vac
3: Low Frequency Inverter with 24VDC 48Vdc for option
4: Inverter with both LED & LCD Display
Pure Sine Wave Inverter Charger Power Star Series PS8Kw-12Kw (1ph in/1ph out) Key Features: 1. On inverter
High overload ability
Low battery voltage trip selectable, extracting max power from various batteries with different protections
Low quiescent current, selectable sensing cycle to reduce power consumption
2. On battery charge
3-step intelligent battery charging
8 preset battery type selector plus de-sulphation for totally flat batteries
Powerful charge rate up to 100Amp ,selectable charging current
PFC(Power Factor Correction) for charger, less power consumption than conventional units
3. On Transfer
Delay before transfer, extra protections for loads under generator mode
Input AC voltage range selectable, for different kinds of loads
8 ms typical transfer time, guarantees power continuity
30A/40A through current ability
Output voltage regulation optional
4. On remote control & other features
Ability to switch the unit on/off
Ability to select/deselect power saver mode
17 alarms/warnings, informative for easier operation and trouble-shooting
LCD status display available
RS232 communication port optional
Technical Specification| Power Star Series |
| Model No. | PS8K | PS10K | PS12K |
| Nominal Power | 8KW | 10KW | 12KW |
| AC Input |
| Phase & Waveform | Single Phase & Pure Sine Wave |
| Voltage | 220/230/240VAC |
| Acceptable Voltage | 154-273VAC |
| Line Low Transfer | 154V |
| Line Low Return | 164V |
| Line high Transfer | 273V |
| Line high Return | 263V |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 40Hz |
| Line high Transfer | 80Hz |
| AC Output |
| Phase & Waveform | Single Phase & Pure Sine Wave(bypass mode sync to input) |
| Voltage | 220/230/240VAC (Same as Input on bypass mode) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Crest Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 48V |
| Minimum Start Voltage | 40V |
| Low Battery Alarm | 44V |
| Low Battery Transfer | 40V |
| High Voltage Alarm | 64V |
| Max Charging Current | 75A | 85A | 100A |
| Over Charge Voltage | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 75 Watts |
| Indicators |
| 4-LED Display | Charge, Line, Inverter, Fault |
| LCD Display | Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS232/RJ11(Optional) |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 56 | 64 | 68 |
| Dimension L*W*H(mm) | 549*450*201mm | 584*450*201mm |
| *Specification is subject to change without prior notice. |
