Low Frequency Inverter, Pure Sine Wave Inverters 1000W, 2000W, 3000W, 4000W,5000W,6000W
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
LW500-LW8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weitght: |
2.0kg |
| Demension: |
224&255&80mm |
| Protection: |
Overvoltage |
Product Description

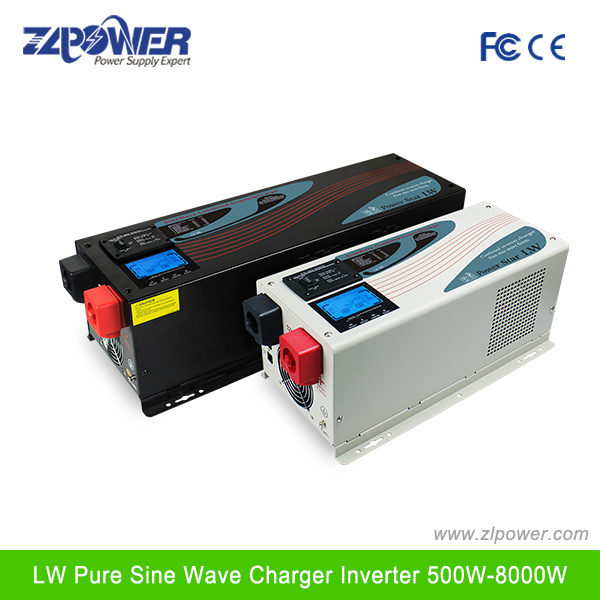

Model: Low Frequency Inverter, Pure Sine Wave Inverters 1000W, 2000W, 3000W, 4000W, 5000W, 6000W
1. Input voltage: AC: 110/220vac, DC: 12v/24v/48v
2. Built-in charger
3. Single phase inverter
4. CE certificate
LN series ( Professional grade ) inverter charger is designed with the highest standards and is for connecting middle power consumption appliance with extraordinary reliable performance. The inverter charger current is about 70A with pure sine wave output. The capacity have 1000W to 6000W. The most important function is, that inverter can work for perceptual load such as air conditioner, laser printer, water pump and some other big momentary currents machine, all home, car ship equipment, normal inverter cannot do that. Second, the inverter charger circuit can reach up to 70 AMP, and normal inverter only have 10 AMP. Third, It can work for 50 Hz as well as 60 Hz as it have auto detection the frequency function. Fourth, it have remote control function, this inverter can use in Car, Ship, Home and so on, and work with 8 kinds of battery and also have power save mode. It can work for solar system.
| Product Series | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v+4% | 184v/154v+4% |
| Low voltage reconnect | 100v+4% | 194v/164v+4% |
| High voltage trip | 140v+4% | 253v+4% |
| High voltage reconnect | 135v+4% | 243v+4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specifica Inverter Specification output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz+0.3Hz or 60Hz+0.3Hz |
| Nominal efficiency | >88% |
| Surge ratings | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Batteryinitial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| | 4000/5000/6000 Model: 598*218*179 |
| Net weight | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| | 18kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
