| Prod Model: |
High Efficiency Strar Series HE33 10K-200K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DC Start: |
Cold Start |
| Redundant Technology: |
N+X |
| Color: |
Black/White |
| Output Voltage: |
220V/380, 230/400, 240/415V |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

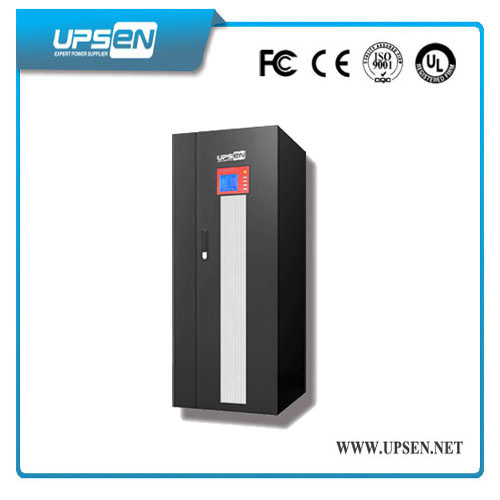

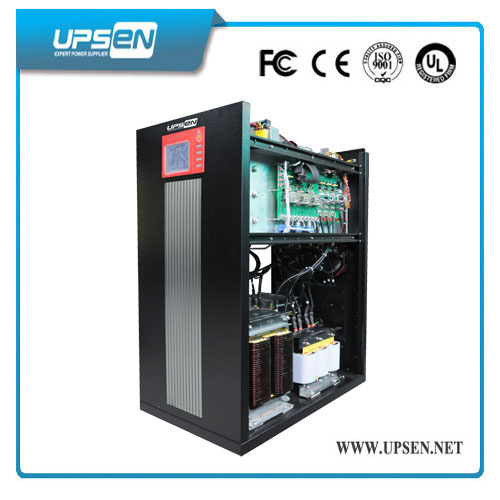

Low Frequency Large Industrial Online UPS with EPO function
Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K ( 3Ph in / 3Ph out )
Key Features
1:True N+1 Redundancy
2:Input Power Factor Correction
3:Adaptable with Generator
4:Intelligent digital control, high reliability
5:Power Factor Correction Achieve input PF 0.99
6:Optional Extended Battery Banks & Chargers
7:Programmable 50/60Hz Frequency Conversion
8:Strong load adaptability for linear and nonlinear load
9:LCD Display with Advanced Monitoring for Easy UPS Management
10:Inbuilt switch for cabinet input,output and maintenance connection
11:Independent charger for batteries, intelligent battery management system
12:True on-line static bypass technology, to provide strong overload and fault protection device
Application
Server, data centers, critical network devices, sensitive electronic equipment, telecom, enterprise servers, Telecom, Large Data Rooms, SMT, Medical Equipment etc.
Technical Specification
| High Efficiency Strar Series HE33 10K-200K |
| Model | HE33 Series UPS |
| Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
| Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
| Operate type | Double conversion online type |
| Input | Nominal voltage | 220V/380, 230/400, 240/415V |
| Voltage Tolerance | 380/400/415V±25% |
| Frequency | 50Hz/60Hz±5% |
Permitted Frequency
Tolerance |
±2% (selectable from ±1% to 5% from the front panel) |
| Soft start | 0-100% in 30" (selectable) |
| Input power factor | 0.95(with input filter) |
| Standard features | Back Feed protection separable bypass line |
| | Phase | Three phase +N+G |
| Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Frequency | 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Static stability | ±5% in 19ms |
| Distortion | Linear load <3%, non linear load<5% |
| Power factor | 0.8 |
| Output wave | Pure sine wave |
| Crest factor | 3:01 |
| Battery voltage | Standard battery voltage | 384V | 432V | 480V |
| Floating charge | 432V | 486V | 540 |
| Terminal voltage | 336V | 378V | 420V |
| Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
Maximum Discharge
Current |
28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
| Main Function | Active voltage change | 0-100%±5% |
| Instant recover time | <10ms |
| Imbalance voltage | <±5%,<±1%( Balance load voltage) |
| Overload capacity | 125%→10min,150%→1min |
| Static switch | Automatic |
| Protection | UPS over current, short circuit, battery low voltage, over heat |
| Cold method | Compel aeration ( temperature control mode) |
| Noise | 60-65dB |
| Display | LED,LCD display |
| Remote signalling | Voltage-free contacts |
| Remote commands | EPO and bypass |
Communication Port
(Optional) |
double RS232 + remote contacts + 2 communication interface slots |
| Alarm | Alarm with buzzer and indicators |
| Environment | Temperature: 0-40C Humidity: 0-90% |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
