| Prod Model: |
HE33 10K-200K |
| Power Factor: |
0.8 |
| Color: |
Black,White |
| Input Phase: |
Three Phase +N+G |
| Instant Recover Time: |
<10ms |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Application: |
Industry and Communication |
| Brand: |
Upsen or OEM |
Product Description

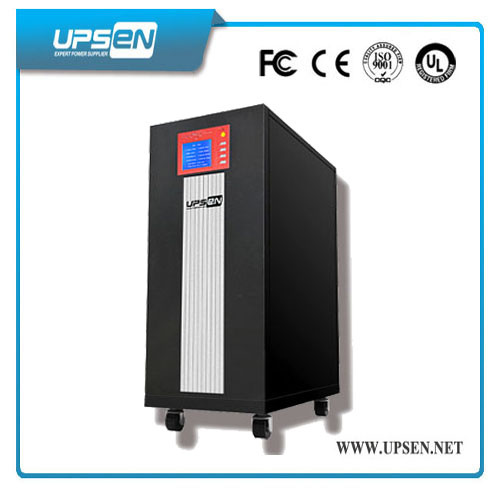

3 phase online low frequency UPS for Industrial Printing MachineModel: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)Key Features1:The efficiency of the machine is more than 93%, and reach 98% in ECO mode
2:Super wide input voltage range, adaptive for extrem adverse grid enviroment
3:High reliability: IGBT technology, full microprocessor control with no-break static and manual bypass

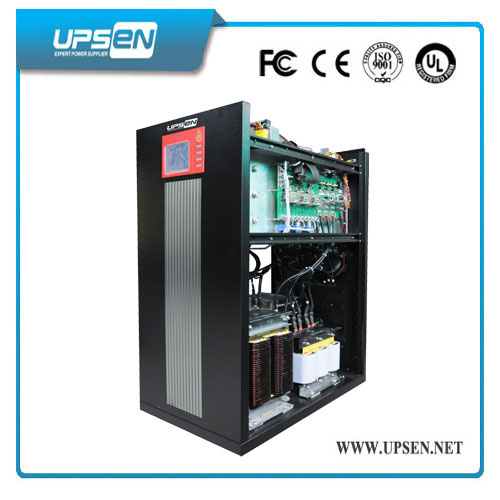

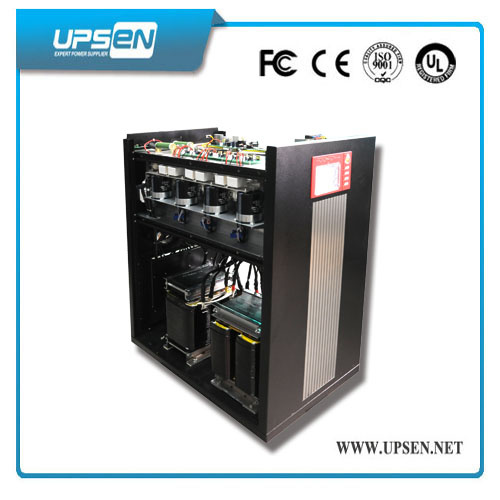

4:Inbuilt with an isolated transformer resists high impulse current with extra load compatibility and comprehensive dual
protection provides high system reliability
5:UPS adopts green commute and inverter technology, ensure to provide clear energy for users; Its advanced digital circuittechnology let whole UPS with 80% more life than before
6:Adopting the advanced DSP technology and on-line double conversion IGBT technology design for the most demanding applications.
7:To protect against the over temperature, overload, short circuit, surge, lighting and the poor input to ensure the reliable operation of the UPS and the load
8:Excellent load characters can fulfill with suddenly change load from 0 to 100%, and no need to invert to bypass, ensure output stable and reliable
9:Three phase can equal stable voltage and control separately, in order to control instantaneous overload degree of equal,realize output imbalance 100% load
ApplicationsAutomotive, vehicle,Robots, boats, civil office, industrial, agricultural,incandescent lamps,Emergency Lighting Systems, refrigerators etc.
Technical Specification| High Efficiency Strar Series HE33 10K-200K |
| Model | HE33 Series UPS |
| Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
| Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
| Operate type | Double conversion online type |
| Input | Nominal voltage | 220V/380, 230/400, 240/415V |
| Voltage Tolerance | 380/400/415V±25% |
| Frequency | 50Hz/60Hz±5% |
Permitted Frequency
Tolerance |
±2% (selectable from ±1% to 5% from the front panel) |
| Soft start | 0-100% in 30" (selectable) |
| Input power factor | 0.95(with input filter) |
| Standard features | Back Feed protection separable bypass line |
| | Phase | Three phase +N+G |
| Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Frequency | 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Static stability | ±5% in 19ms |
| Distortion | Linear load <3%, non linear load<5% |
| Power factor | 0.8 |
| Output wave | Pure sine wave |
| Crest factor | 3:01 |
| Battery voltage | Standard battery voltage | 384V | 432V | 480V |
| Floating charge | 432V | 486V | 540 |
| Terminal voltage | 336V | 378V | 420V |
| Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
Maximum Discharge
Current |
28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
| Main Function | Active voltage change | 0-100%±5% |
| Instant recover time | <10ms |
| Imbalance voltage | <±5%,<±1%( Balance load voltage) |
| Overload capacity | 125%→10min,150%→1min |
| Static switch | Automatic |
| Protection | UPS over current, short circuit, battery low voltage, over heat |
| Cold method | Compel aeration ( temperature control mode) |
| Noise | 60-65dB |
| Display | LED,LCD display |
| Remote signalling | Voltage-free contacts |
| Remote commands | EPO and bypass |
Communication Port
(Optional) |
double RS232 + remote contacts + 2 communication interface slots |
| Alarm | Alarm with buzzer and indicators |
| Environment | Temperature: 0-40C Humidity: 0-90% |
Competitive Advantages: 1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB boards
2: Full protection against over-discharge, overcharge, over load.
3: Strong shock resistance ability
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
