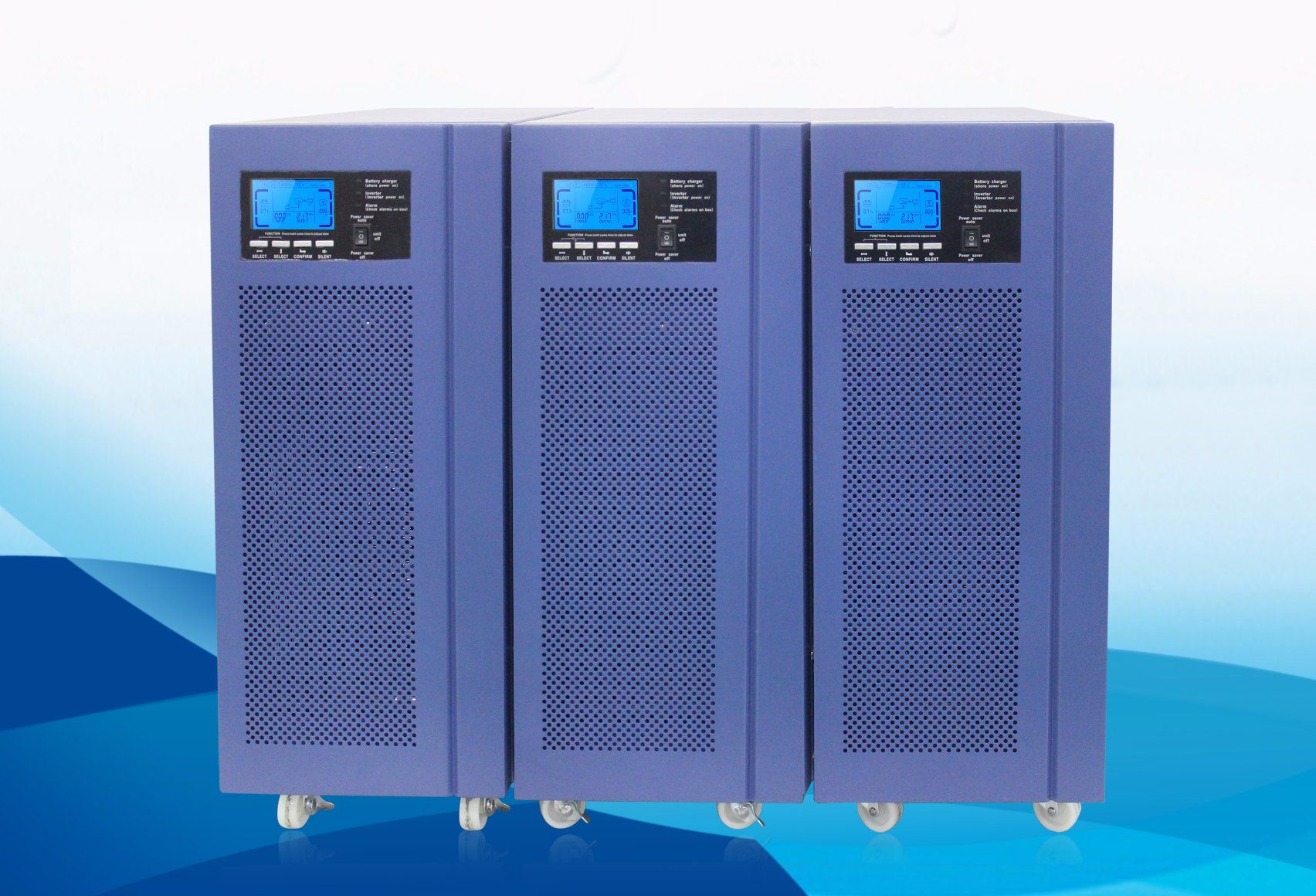

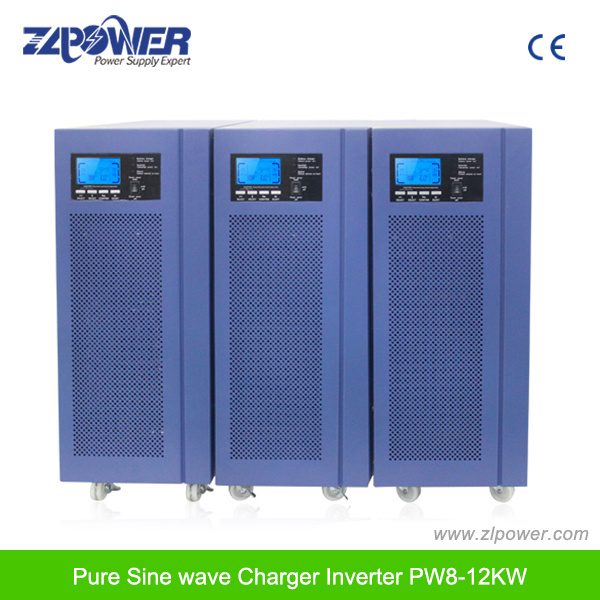

Low Frequency Pure Sine Wave Inverter 8000W with Charger
| Price: |
US $ 560/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
PW8000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Power: |
8kw~12kw |
| Nominal Voltage: |
220/230/240V |
| Input Phase: |
Single Phase |
| Wave: |
Pure Sine Wave |
| Power Factor: |
0.9-1.0 |
| Peak Power: |
3times of Rating Power |
| Battery Efficiency: |
85% |
| AC Efficiency: |
96% |
| Protection: |
Over Battery,Over Load,Over Charging |
| Noise: |
60dB |
Product Description
Low Frequency Pure Sine Wave Inverter 8000W with Charger8KW~12KW solar charger power inverter
*Large LCD display show voltage,frequency,battery capacity
*Built-in AC battery charger which charging current can be adjusted
*3times of rating power
*Pure sine wave
MODEL
(PW Series) | HV Model |
| PW8-12KW HV(230Vac) |
Line Mode Specifications: |
Input Voltage | Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Disconnect | 184Vac±4% |
| Low Line Re-connect | 194Vac ±4% |
| High Line Disconnect | 263Vac±4% |
| High Line Re-connect | 253Vac±4% |
| Max AC Input Voltage | 270Vrms |
| Input Frequency | Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
| Low Line Frequency Re-connect | 51+0.3Hz for 60Hz;
41+0.3Hz for 50Hz; |
| Low Line Frequency Disconnect | 50+0.3Hz for 60Hz;
40+0.3Hz for 50Hz; |
| High Line Frequency Re-connect | 64+0.3Hz for 60Hz;
54+0.3Hz for 50Hz; |
| High Line Frequency Disconnect | 65+0.3Hz for 60Hz;
55+0.3Hz for 50Hz; |
main functions
| Output Voltage Waveform | As same as Input Waveform |
| Over-Load Protection (SMPS load) | Fuse |
| Output Short Circuit Protection | Fuse |
| Transfer Switch Rating | 63A/80A/100A |
| Max Bypass Overload Current | 100A |
Battery Invert Mode Specifications: |
output | Output Voltage Waveform | Sine wave |
| Rated Output Power (KW) | 8kw/10kw/12kw |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | 230Vac ±10% rms |
| Nominal Output Frequency (Hz) | 60Hz ± 0.3Hz
50Hz ± 0.3Hz |
| DC Voltage | Nominal DC Input Voltage | 48V/72V |
| DC Voltage range | 40-62Vdc for 48VDC/ 70-93Vdc for 72VDC |
| Low Battery Alarm | 42.0Vdc ± 1.2Vdc for 48V battery
63.0Vdc ± 1.8Vdc for 72V battery |
| Low DC input Shut-down | 40.0Vdc ± 1.2Vdc for 48V battery
60.0vdc± 1.8Vdc for 72V battery |
| High DC input Alarm & Fault | 64Vdc ± 1.2Vdc for 48V battery
96Vdc ± 1.8Vdc for 72V battery |
| High DC input Recovery | 62.0Vdc ± 1.2Vdc for 48V battery
93.0Vdc ± 1.8Vdc for 72V battery |
| Charger | Nominal Charge Current | 35A/50A(5 stages adjustable charging current) |
| Charge Current Regulation | ± 5Adc |
| Over Charge Protection | Bat. V ≥62Vdc / 93Vdc, beeps 0.5s every 1s & fault after 60s |
| Algorithm | Three stage: Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage) |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >98% |
| Transfer Time | Ac to Dc | 20ms (Max) |
| Dc to Ac | 15ms (Max) |
| System parameter | Over-Load Protection | 110% 150%, beeps 0.5s every 1s, and Fault after 20s. |
| Output Short Circuit Protection | Current limit (Fault after 10s) |
| Surge rating (10s) | 1:3 (VA) |
| Power saver | Load <=25W (Enabled on "P/S auto" setting of Remote control) |
| Protections | Low battery, over charging, over load , over temp. |
| Indicators | LED+LCD Display |
| General Specifications | Operating Temperature Range | 0°C to 40°C |
| Storage temperature | -15ºC ~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Dimension(L*W*H) | 538*255*630mm |
| Net weight(Kg) | 8KW | 10KW | 12KW |
| 60kg | 65.5kg | 71kg |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
