| Prod Model: |
Legend Strar Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Double Conversion: |
Yes |
| Transfer Time: |
0 |
| Nominal Voltage: |
3 X 380VAC/400VAC (3pH + N) |
| Warranty: |
12 Months |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Upsen |
Product Description

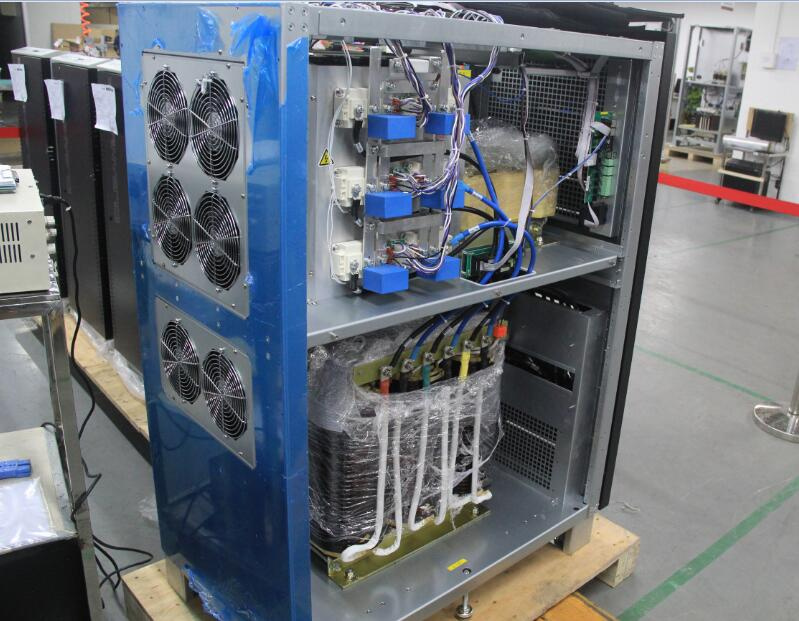

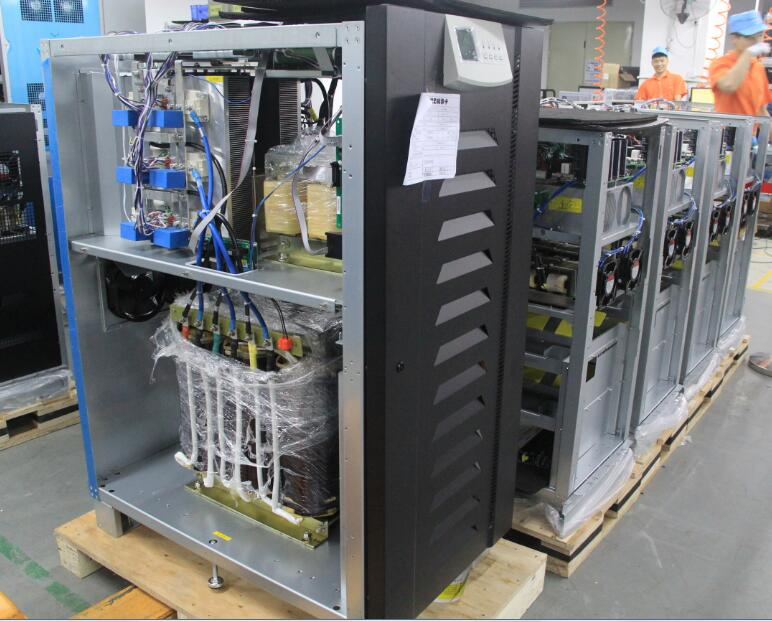

Low Frequency Ups For Big IDC with Isoltion Transformer
Model:Low Frequency Online UPS Legend Strar Series LS33 10K-80K(3Ph in/3Ph out)
Key Features
1:advanced true double conversion On-line technology
2:DSP technology guarantees high reliability
3:True galvanic isolation transformer design
4:Control designed to withstand all kinds of loads
5:Intelligent battery management to prolong battery lifecycle
6:High reliability,DSP digital control,produce SPWM to control UPS inverter directly
7:Isolation transformer is included for all models
8:Dual change online design,guarantee the pure sine power output
9:LCD display,and can be connected via RS232 or SNMP to remote monitor UPS
10:perfect for the most demanding and delicate of applications

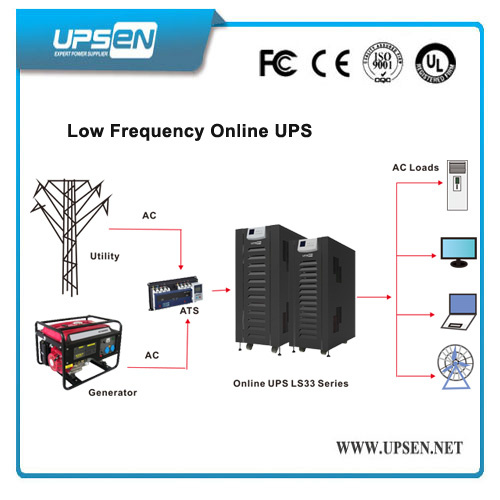

Applications:
Data center, Industrial equipment, Financial and Securities, Large Data rooms, Postal and Telecommunications,electric equipments, medical equipments, instruments, Energy and Electricity, Commercial tax affair,etc.
Technical Specification
| 3P/3P ONLINE UPS SELECTION GUIDE |
| LS33 Series 10K - 80Kva |
| MODEL | 10K | 20K | 30K | 40K | 60K | 80K |
| CAPACITY | 10KVA/ 8KW | 20KVA/ 16KW |
30KVA/ 24KW |
40KVA/ 32KW | 60KVA/ 48KW | 80KVA/ 64KW |
| INPUT |
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Acceptable Voltage Range | 305VAC ~ 460VAC |
| Frequency | 46-54Hz or 56-64Hz |
| INVERTER |
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Precision | Stationary: ±1%
Transitory: ±5% (load variations 100-0-100%) |
|
| Frequency | 50/60 Hz synchronised ±1 %
With mains absent ±0.1 Hz |
| Max. Synchronisation Speed | ±1 Hz/s |
| Waveform | Pure Sinewave |
| Total Harmonic Distortion (THDv) | <2% (Linear Load)
<5% (Non-linear Load) |
| Phase Displacement | 120º ±1% (balanced load)
120º ±2% (imbalances 50% of the load) |
| Dynamic Recovery Time | 1 cycle at 98 % of the static value |
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms |
| Admissible Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
| Imbalance Output Voltage @ 100% Unbalanced Load | <1% |
| Current Limit | High overload, short-circuit: RMS Voltage Limit
High Crest-Factor current: Peak Voltage Limit |
| STATIC BYPASS |
| Type | Solid state |
| Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Frequency | 50/60 Hz |
| Activation Criterion | Microprocessor control |
| Transfer Time | Zero |
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms |
| Transfer to Bypass | Immediate, for overloads above 160% |
| Retransfer | Automatic after alarm clear |
| MAINTENANCE BYPASS |
| Type | Without interruption |
| Voltage | 3 x 400V (3Ph + N) |
| Frequency | 50/60 Hz |
| Overall Efficiency | Line Mode | 90% | 91% | 92% | 93% |
| Battery Mode | 90% | 91% | 93% | 93% |
| BATTERY & CHARGER |
| Battery Type and Numbers | 12VDC x 16 pcs | 12VDC x 32 pcs (29~32 pcs adjustable) |
| Nominal Battery Voltage | 192 VDC | 384 VDC (Based on 32pcs batteries) |
| Charging Method | CC/CV |
| Precision | ±1% |
| Charging Current | Max.: 40 A |
| Charging Voltage | 216 VDC | 432 VDC (Based on 32pcs batteries) |
| PHYSICAL |
| Dimensions, D x W x H(mm) | 656 x 405 x 817 | 656 x 405 x 941 | 840 x 432 x 1140 | 975 x 554 x 1286 |
| Net Weight (Kgs) | 180 | 205 | 295 | 330 | 451 | 519 |
| * Product specifications are subject to change without further notice |
