Low Liquids Range Pressure Transmitter MDM492

Name: Low Liquids Range Pressure Transmitter MDM492
Brand: all-electronics-online.com
SKU: 741728805
Availability: InStock
Rating: 4.9 (50 reviews)

Price:	US $ 50-1000/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDM492
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Low Ranges For Gas:	0-1kpa, 2.5kps, 7kpa
Humidity:	0~80%
Accuracy:	1%Fs/Y
Measurement Range:	0~1...7kpa
Compensated Temp:	0~70c
Storage Temp:	-40~125c
Media Temperature:	-10~85c
Power Supply:	15~30VDC
Output Signal:	4~20madc
Pressure Port:	Stainless Steel
Accuracy Grade:	0.25%Fs(Typ.)

Product Description

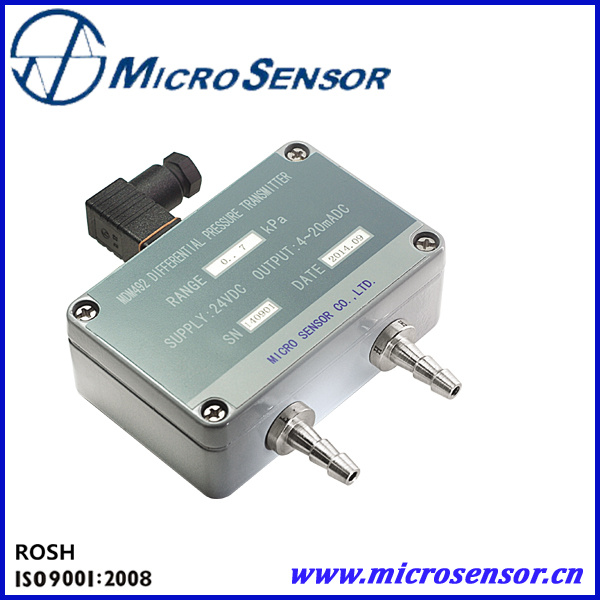

Low Liquids Range Pressure Transmitter MDM492

Features:
  1. Compact
  2. For low range
  3. Cost-effective
  4. For differential pressure
  5. For non-conductive, non-corrosive liquids or gases

Applications:
  1. Boiler
  2. Winery
  3. Power plant
  4. And so on.

Specifications:
  1. Limited pressure: 5kPa 12.5kPa 35kPa
  2. Accuracy: ≤ 1%FS
  3. Storage temp.: -40° C~125° C
  4. Compensation temp.: 0° C~70° C
  5. Relative humility: 0~80%
  6. Output signal: 4~20mADC
  7. Electric housing: Aluminum-alloy

Order Guide:

MDM492	Differential Pressure Transmitter
	Code	Pressure range: 0~17kPa
	[0~X]kPa	X=actual measure range
		Code	Output signal
		E	4~20mADC

MDM492 [0~2.5]kPa E the whole spec

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
