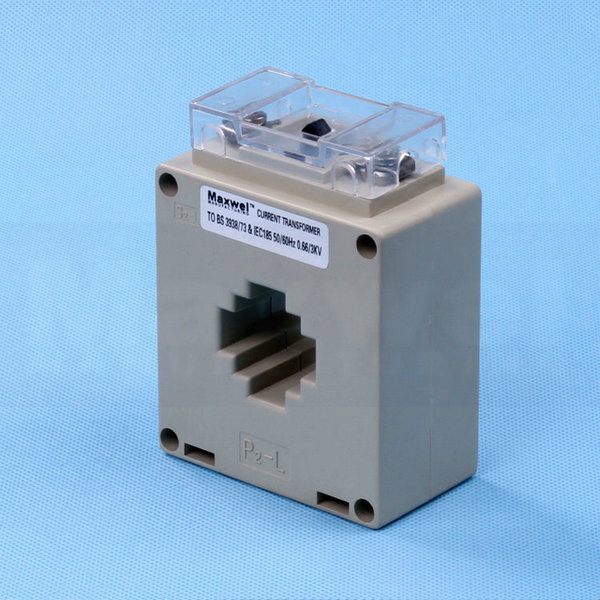

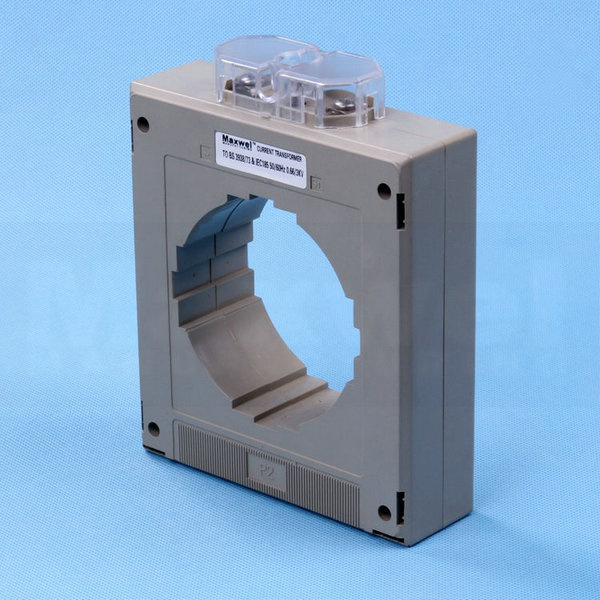

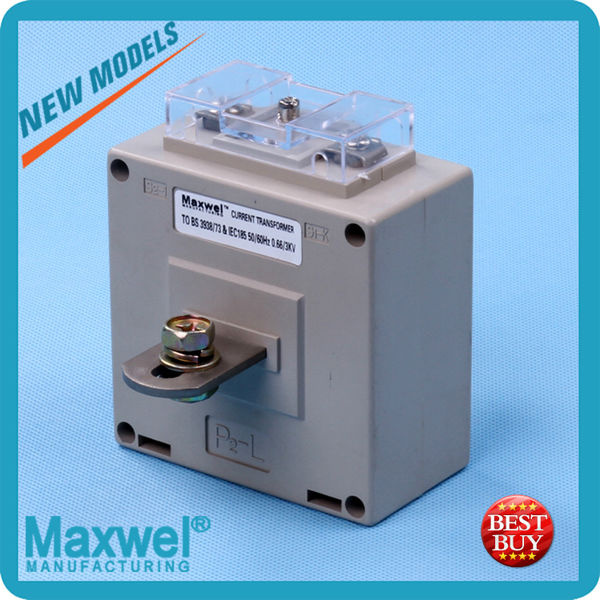

Low Power Measuring Current Transformer

Low Power Measuring Current Transformer
Price: US $ 3.8/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: MSQ
Colour: Grey
Primary Current: 5A~5000A
Class: 0.5/1.0
Frequency: 50/60Hz
Type: Transformer

Product Description

Low power MSQ Measuring Current Transformer
Primary current:5A-5000A
Secondary current:5A,1A
Standard appoval:VDE0414,BS7626,IEC44-1
Maximum voltage:720V/AC
Freguency50-60HZ
Rate load:5VA-10VA
Class0.5,1.0
Rated security coefficient:FS<5
MSQ-30B Current Transformers Data Sheet


Specification:
MSQ current transformers:

Description of MSQ current transformers:
Can be applied to test, control display and record the running of the electrical equipment
Protects the equipment against the damage in the AC circuit with the rated voltage value below 720V and the frequency of 50 to 60Hz
Can also be applied to form complete set of mine transformer
Comply with VDE 0414, BS7626 and IEC 44-1 standards
Sell very well in Greece,Italy,Russian,South African,Egypt etc.



Type
Rated
current
(A)
Rated power (VA)
Weight
(kg)

Class:0.5
Class:1

MSQ-60
250/5
300/5
400/5
500/5
600/5
750/5
800/5
1000/5
 		5
5
5
5-10
5-10
10-15
10-15
10-15
15
5
5
5-10
5-10
10-15
10-15
10-15
15

0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60


Product Detail





About Warranty:

At least  A year!

Delivery Time:

Whin 15 Days After you place an Order!

A: Standard export package and we can make special designed for you if need.
