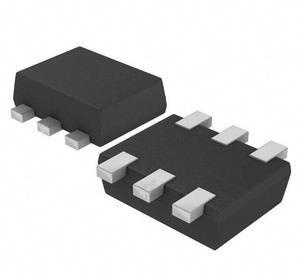

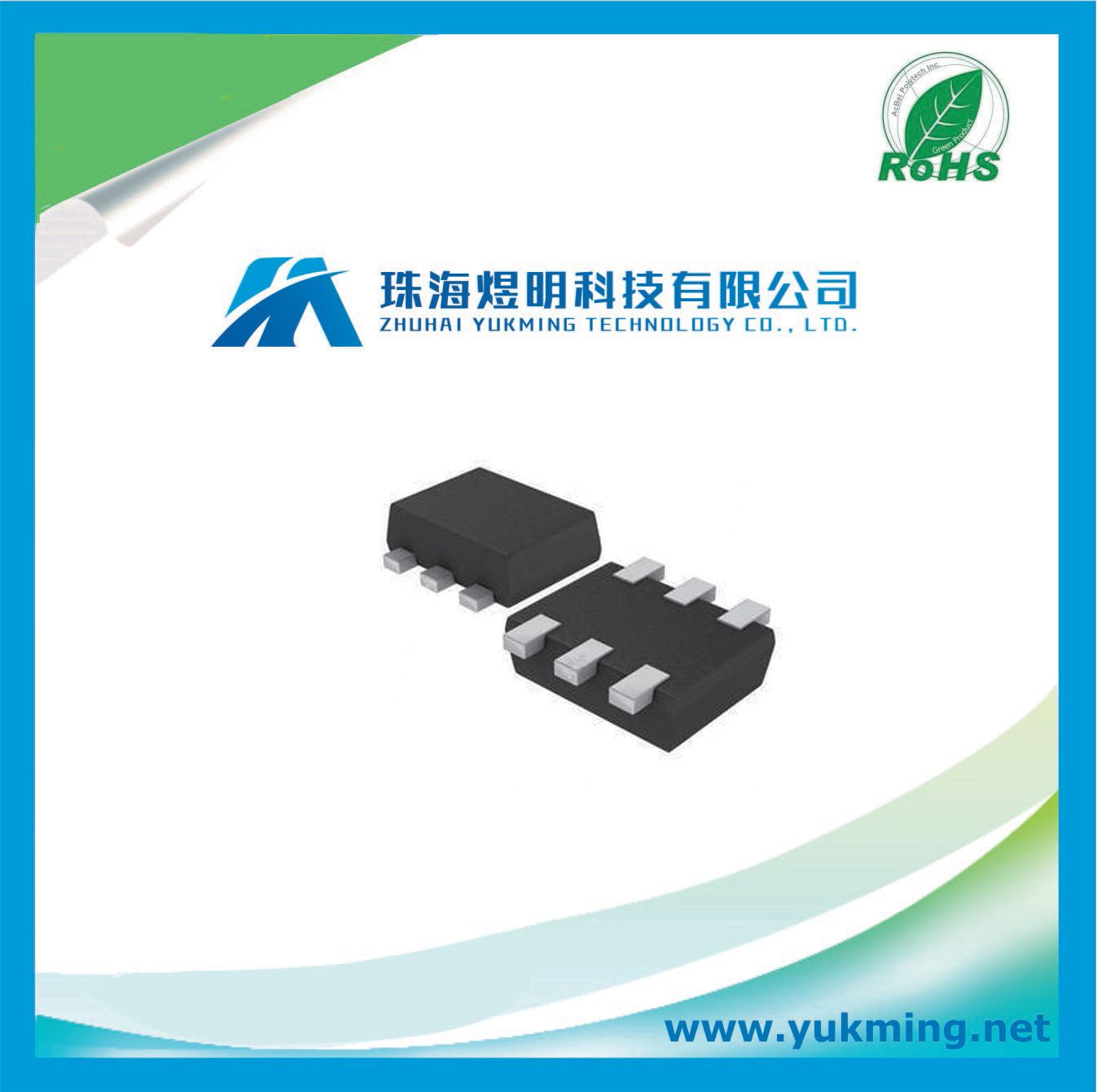

Low Power Temperature Switch IC Integrated Circuit Tmp302adrlr

Prod Model:	TMP302ADRLR
Low Power:	15ua (Max)
Open-Drain:	Output
Low Supply Voltage Range:	1.4V to 3.6V

Product Description


We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can to achieve our WIN-WIN cooperation.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

Easy-to-Use Low-Power Low-Supply TEMPERATURE SWITCH in Micro Package

DESCRIPTION
The TMP302x is a temperature switch in a
micropackage (SOT563). The TMP302x offers low
power (15μA max) and ease-of-use through
pin-selectable trip points and hysteresis.
These devices require no additional components for
operation; they can function independent of
microprocessors or microcontrollers.
The TMP302x is available in several different
versions. For additional trip points, contact a TI
representative.

FEATURES
LOW POWER: 15μA (max)
SOT563 PACKAGE: 1,6mm x 1,6mm x 0,6mm
TRIP-POINT ACCURACY: ±0.2°C (typ) from +40°C to +125°C
PIN-SELECTABLE TRIP POINTS
OPEN-DRAIN OUTPUT
SELECTABLE HYSTERESIS: 5°C/10°C
LOW SUPPLY VOLTAGE RANGE: 1.4V to 3.6V

APPLICATIONS
CELL PHONE HANDSETS
PORTABLE MEDIA PLAYERS
CONSUMER ELECTRONICS
SERVERS
POWER-SUPPLY SYSTEMS
DC-DC MODULES
THERMAL MONITORING
ELECTRONIC PROTECTION SYSTEMS

Any items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!
