Low Price Single Core Electrical Wire PFA Electrical Wire

Name: Low Price Single Core Electrical Wire PFA Electrical Wire
Brand: all-electronics-online.com
SKU: 830947685
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	10486
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Teflon
Certification:	CSA, Ts16949
Application:	Home Appliance, Head Lamp, Industrial Machine,
Conductor Material:	Tinned Copper
Sheath Material:	PFA
Range Of Application:	Home Appliance, Head Lamp, Industrial Machine,
Brand:	Mysun

Product Description

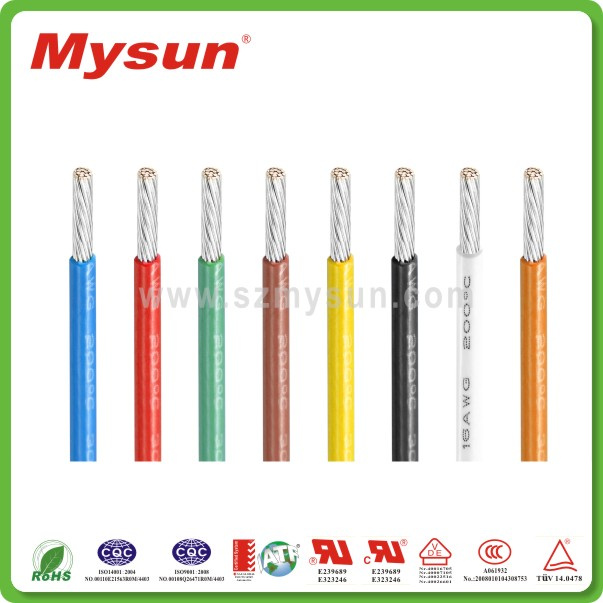

low price Single core electrical wire pfa Electrical wire

Specifications:

Nominal voltage: 300V

Temperature range: 250C

Standard: UL 758

Insulation: PFA

Conductor: Nickel-plated copper wire

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
32	7/0.08	0.24	0.25	0.74	563	610/2000
30	7/0.10	0.30		0.80	361
28	7/0.12	0.36		0.86	227
26	7/0.16	0.48		0.98	143
24	7/0.20	0.60		1.10	89.3
22	19/0.15	0.75		1.25	56.4	305/1000
20	19/0.185	0.93		1.43	35.2
18	19/0.235	1.17	0.30	1.77	22.2
16	19/0.30	1.50		2.10	14
14	19/0.37	1.85		2.45	8.78
12	19/0.47	2.35	0.35	3.05	5.53
10	37/0.43	3.00	0.35	3.70	3.476
8	37/0.54	3.78	0.51	4.80	2.16	customized
7	37/0.60	4.20		5.22	1.716
6	37/0.68	4.76		5.78	1.361
5	37/0.76	5.32		6.34	1.079
4	37/0.86	6.02	0.80	7.62	0.8859
3	7/2.21	6.63		8.23	0.6788
2	7/2.48	7.44		9.04	0.5384
1	7/2.78	8.34	1.20	10.74	0.4268
0	7/3.20	9.60		12.00	0.3367
2/0	7/3.57	10.71		13.11	0.267
3/0	7/3.94	11.82		14.22	0.2119
4/0	7/4.42	13.26		15.66	0.168

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
