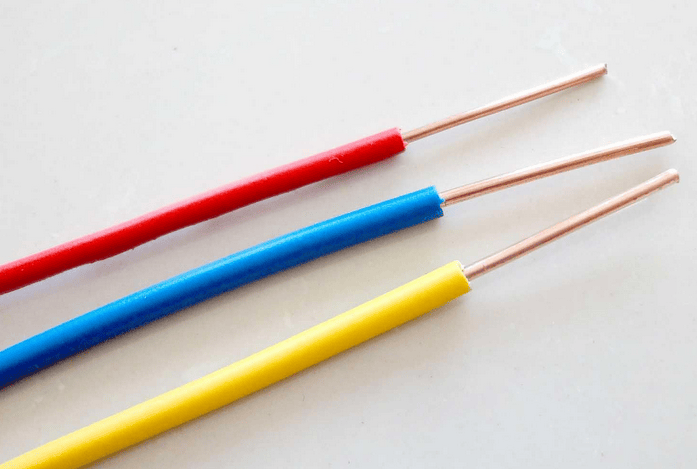

Low Smoke Zero Halogen Lsoh LSZH Electric Wire H05z-U H07z-R
| Price: |
US $ 0.12-0.95/Meter |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
H05Z-U H07Z-R |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Sheath Material: |
No Sheath |
| Brand: |
OEM |
Product Description
Application and Description
6491B is equivalent to harmonized code H07Z-R, these cables are designed for fixed wiring purposes in domestic and industrial power/ lighting applications. Can be used in trunking or conduit, or may be surface mounted when used for earthing. and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.
Cable Construction
Strands to IEC 60228 Cl-2 LSOH thermosetting insulation
-Thermosetting core insulation type EI5
-LSOH - low smoke, zero halogen
Technical Characteristics
| Working voltage | 300/500v (H05Z-U), 450/750v (H07Z-R) |
|---|
| Test voltage | 2000 / 2500 volts |
|---|
| Flexing bending radius | 15 x O |
|---|
| Static bending radius | 10 x O |
|---|
| Flexing temperature | +5 oC to +90 oC |
|---|
| Short circuit temperature | +250 oC |
|---|
| Insulation resistance | 10 MΩ x km |
|---|
| Flame retardant | IEC 60332.1 |
|---|
| | Smoke density acc. to EN 50268 / IEC 61034 |
|---|
| | Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2 |
|---|
| Flame test | Flame-retardant acc. to EN 50265-2-1, IEC 60332.1 |
|---|
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight | Minimum insulation resistance at 90 °C |
|---|
| # x mm^2 | mm | mm | kg/km | kg/km | MΩ·km |
|---|
| H05Z-U |
| 20 | 1 x 0.5 | 0.6 | 1.9-2.4 | 4.8 | 8 | 0.015 |
| 18 | 1 x 0.75 | 0.6 | 2.1-2.6 | 7.2 | 12 | 0.012 |
| 17 | 1 x 1 | 0.6 | 2.2-2.8 | 9.6 | 14 | 0.011 |
| H07Z-U |
| 16 | 1 x 1.5 | 0.7 | 2.6-3.3 | 14.4 | 20 | 0.011 |
| 14 | 1 x 2.5 | 0.8 | 3.2-4.0 | 24 | 30 | 0.010 |
| 12 | 1 x 4 | 0.8 | 3.6-4.6 | 38 | 45 | 0.0085 |
| 10 | 1 x 6 | 0.8 | 4.1-5.2 | 58 | 65 | 0.0070 |
| 8 | 1 x 10 | 1.0 | 5.3-6.6 | 96 | 105 | 0.0070 |

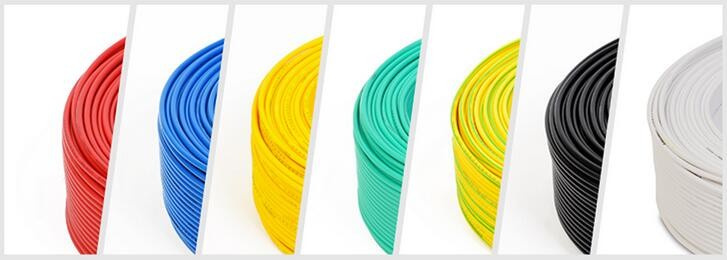

Available Color

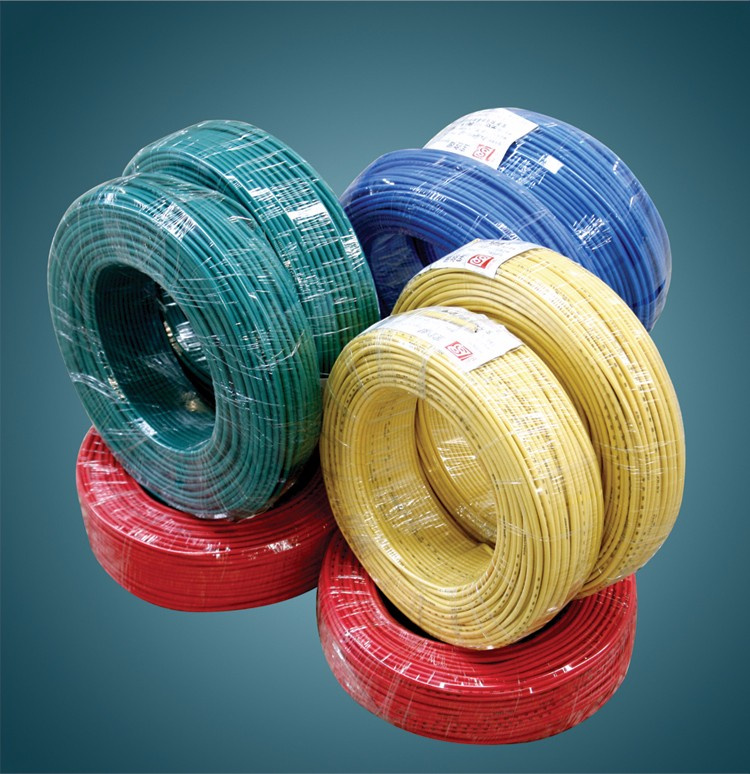

Packing shipping
Why Choose Us ?

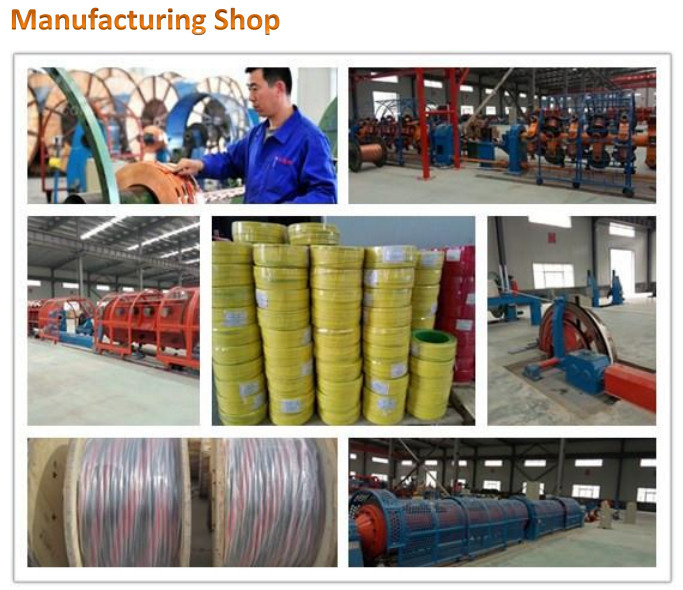

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
