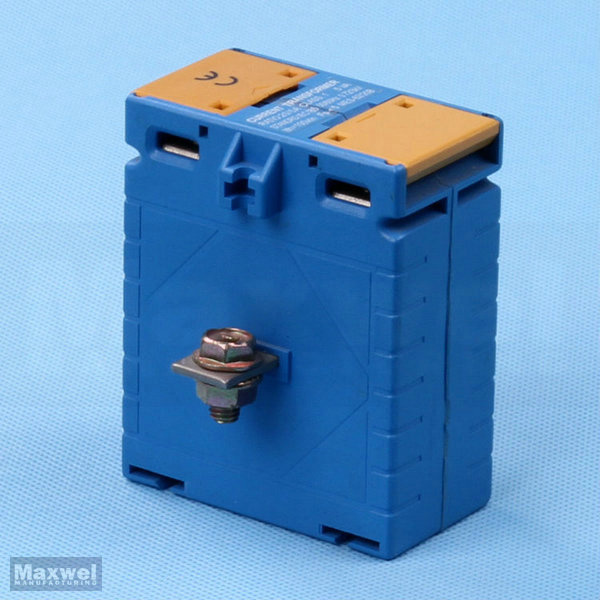

Low Voltage Current Transformer (MES-145/100)

Name: Low Voltage Current Transformer (MES-145/100)
Brand: all-electronics-online.com
SKU: 704916355
Availability: InStock
Rating: 4.8 (47 reviews)

Price:	US $ 3.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MES-145/100
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Class:	0.5/1.0
Colour:	Blue
Capacity:	1000A-3000A
Standard Certificate:	IEC44-1/Bs7626/VDE0414/Vl94
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

MES current transformer series:

1. The MES series of current transfomer are convenient for mounting in many ways.
2. The most current transformer need the special mounting and the EMS series used the mounting of DIN typing without a lot of time.
3. The protective cover for the terminal block used the switching device with safety and quick

MES tecnicial specifications:
Primary current: 5A-3000A
Secondary current: 5A/1A
Standard approval: IEC44-1/BS7626/VDE0414
Maximum voltage: 0.72/3kv
Frequency: 50/60Hz
Rated load: 2.5VA/5VA/10VA/15VA
Class: 0.5/1.0
Short-time thermal current: Ith=60*Ih
Rated security coefficient Fs<5

Model	Nominal current ratio	Burden VA
		Class 0.5	Class 1
MES-145/100	1000/5	15	30
MES-145/100	1200/5	15	30
MES-145/100	1500/5	15	30
MES-145/100	1600/5	15	30
MES-145/100	2000/5	15	30
MES-145/100	2500/5	15	30
MES-145/100	3000/5	15	30
