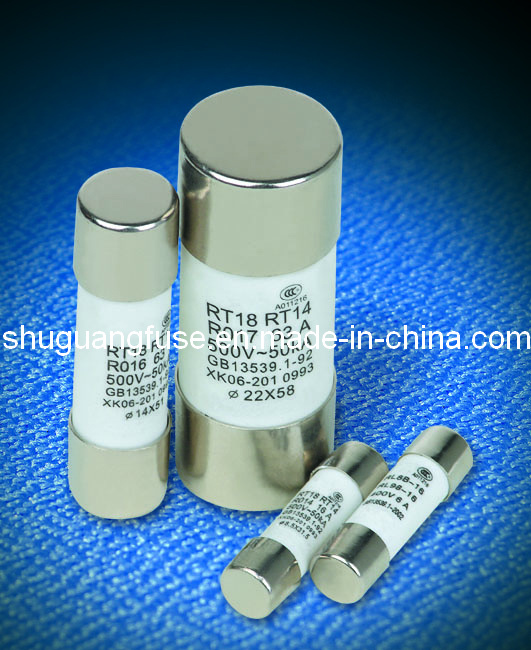

Low Voltage Cylindrical Fuse Links (RO(RT))

Name: Low Voltage Cylindrical Fuse Links (RO(RT))
Brand: all-electronics-online.com
SKU: 716335735
Availability: InStock
Rating: 5 (42 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RO(RT)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	10X38, 14X51, 22X58, etc
Current:	0.5A~125A
Operating Class:	Gl/Gg, Am, Ar
Material:	Ceramic
Weight:	8g, etc
Service:	OEM, ODM
Sample:	Available
Operation:	Manual Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Type:	Fuse
Breaking Capacity:	LV Fuse

Product Description

APPLICATIONS

Protection against overload and short circuit in electric lines (type gG), also available for protection of semiconductor parts and equipments against short-circuit (type aR) and protection of motors (type aM).

Rated voltage up to 660V, Rated current up to 125A, working frequency 50Hz AC, rated breaking capacity up to 100KA, compliant with GB13539 and IEC60269.

DESIGN FEATURES

Variable cross-section fuse element made from pure metal sealed in cartridge made from hig-duty ceramic or epoxy glass. Fuse tube filled with chemically treated high-purity quartz sand as arc-extinguishing medium. DOT-welding of fuse element ends to the caps ensures reliable electric connection; Striker may be attached to the fuse links to provide immediate activation of micro-switch to give various signals or cut the circuit automatically. Special fuse can be supplied according to customers requirements.

BASIC DATA

MODELS Normal(gG)	MODELS Fast(aR)	Rated voltage (V)	Rated current (A)	Outline size (mm)	Weight (g)
RO06	RS06	250/380	1~32	12.7x29	6.5
RO07	RS07	600	10-100	30x57	75
RO09	RS09	500	2~63	18x37	17.5
RO10	RS10	500	2~63	18x50	23.5
RO11	RS11	600	2~63	21x58	51.5
RO12	RS12	600	35~100	27x60	90
RO13	RS13	500	2~40	15x50	23.5
RO15	RS15	380/500	0.5~32	10x38	7.7
RO16	RS16	380/660	2~50	14x51	20.5
RO17	RS17	380/660	10~125	22x58	58
RO18	RS18	380	0.5~25	9.6x30	4.8
RO19	RS19	600	0.5~32	20.5x127	91.2
RO54	RS54	250	0.5~16	5x20	1
RO55	RS55	250	0.5~16	5x25	1.3
RO56	RS56	250	0.5~16	5x20	1.7
RO57	RS57	250	0.5~16	6.3x25	2.1
RO58	RS58	250/500	0.5~16	6.3x31.5	2.5
