Low Voltage Electric Eklt001 Ce RoHS Latching Relay

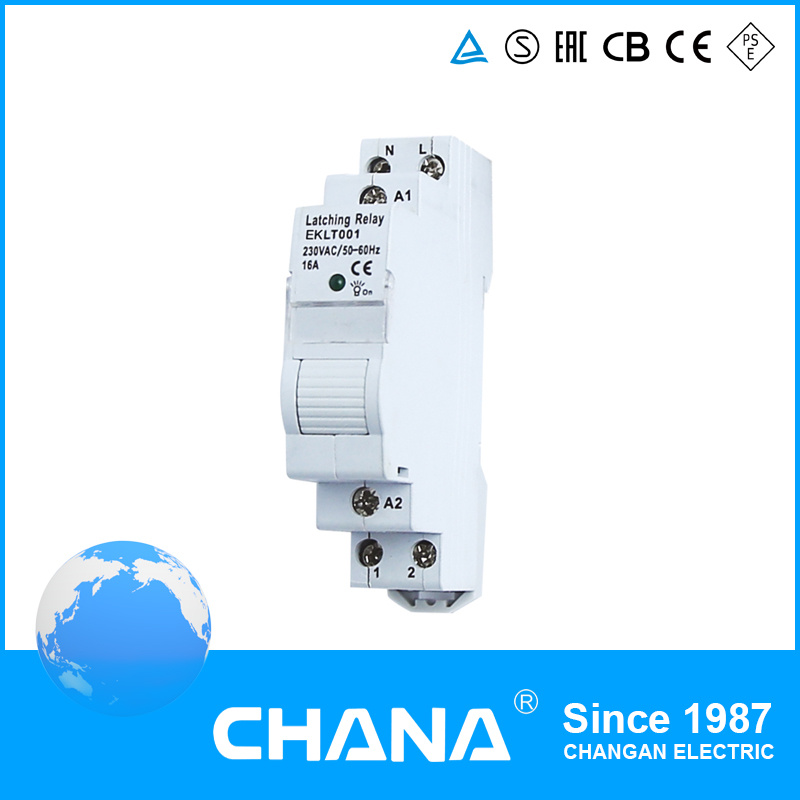

Name: Low Voltage Electric Eklt001 Ce RoHS Latching Relay
Brand: all-electronics-online.com
SKU: 773456715
Availability: InStock
Rating: 4.3 (97 reviews)

Price:	US $ 3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKLT001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

EK Series Circuit Breaker for DIN Rails

Product Name: EKLT001 Latching Relays

Technical Data

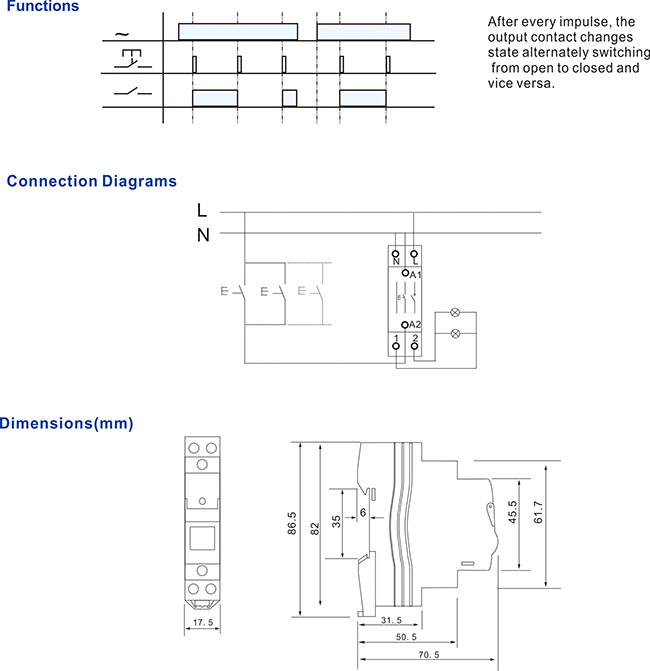

Function

Longer mechanical and electrical life,and much quieter than electromechanical step relays.

controlled by buttons for light switching from more places, are a practical replacement for three-way switches and cressbar switches......

Technical Data

Rated Voltage: 230VAC 50-60Hz
Rated Current: 16A 250VAC(COS|=1)
Contact configuration: 1NO(SPST-NO)
Mounting: DIN Rail 35 mm(EN 60715)
Ambient temperature range: -10...+60

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
