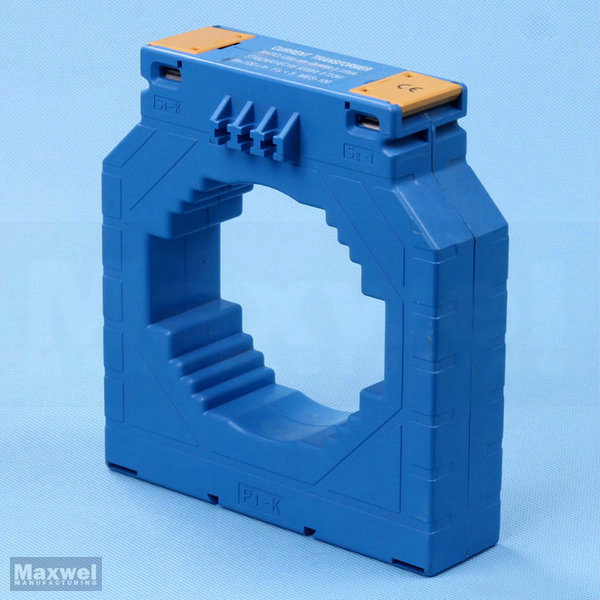

Low Voltage Electrical Msq 5A Current Transformer

Name: Low Voltage Electrical Msq 5A Current Transformer
Brand: all-electronics-online.com
SKU: 704727335
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 2.5-3.5/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-40
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Model:	Msq-40
Class:	0.5/1.0
Weight:	0.38kg
Capacity:	100A-500A
Standard Certificate:	IEC44-1/BS7626/VDE0414/Vl94
Phase:	Three
Type:	Current Transformer

Product Description

MSQ current transformer series:

1. The MSQ series of current transfomer are convenient for mounting in many ways.
2. The most current transformer need the special mounting and the MSQ series used the mounting of DIN typing without a lot of time.
3. The protective cover for the terminal block used the switching device with safety and quick

MSQ tecnicial specifications:
1. Primary current: 5A-5000A
2. Secondary current: 5A/1A
3. Standard approval: IEC44-1/BS7626/VDE0414
4. Maximum voltage: 0.72/3kv
5. Frequency: 50/60Hz
6. Rated load: 2.5VA/5VA/10VA/15VA
7. Class: 0.5/1.0
8. Short-time thermal current: Ith=60*Ih
9. Rated security coefficient Fs<5

Model	Current Ratio (A)	Class 0.5 (VA)	Class 1 (VA)
MSQ-40	100/5	2.5	2.5
MSQ-40	150/5	3	5
MSQ-40	200/5	5	5
MSQ-40	250/5	5-10	5-10
MSQ-40	300/5	5-10	5-10
MSQ-40	400/5	5-10	5-10
MSQ-40	500/5	5-10	5-10
