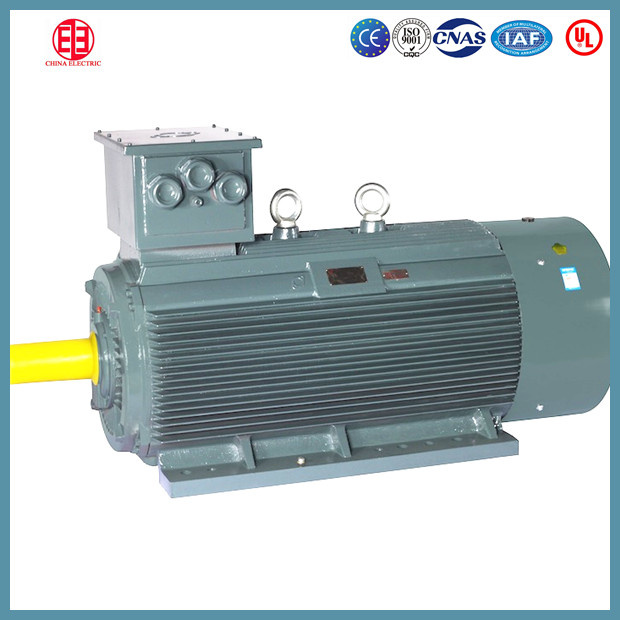

Low Voltage Large Power Three Phase Asynchronous Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
Y2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling: |
IC411 (Tefc) |
| Protection Rating: |
IP55 |
| Voltage: |
380/660, 415/690, 440, 480V |
| Frequency: |
50 or 60 Hz |
| Duty: |
S1 |
| Insulation Class: |
F |
| Power: |
132 ~ 900kw |
| Pole: |
2~12 Poles |
| Frame Size: |
80 ~ 355 |
| Efficiency: |
Ie1 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Ye3 Three Phase |
Product Description
Y2 Series Low Voltage Big Power Three Phase Asynchronous Motor
1.Brief introduction:
The YE2 series motors with high strengh cast iron structure, have the characteristics of high reliability, beautiful apperance, low noise, little vibration, and can be applied to fan, pump, compressor, construction machinery and other industrial fields.
2.Structural characteristics
The Y-IP23 series motors with semi-closed cast iron structure, can be applied to a various of general machines in dry and clean indoor environment.
3.Technical parameters (for reference only):
Series Name: |
Y2 |
Certificate: | CE,ISO9001,UL,CCC,ROHS |
| Phase: | Three Phase |
| Housing | Cast iron |
| Voltage: | 380V-660V |
| Rate Frequency | 50HZ/60HZ |
| Standard: | IE1 |
| Wire: | 100% copper |
| Frame Size: | 355~450(mm) |
| Frame materia | Cast iron |
| Poles: | 2~12 poles |
| Duty: | Continous S1 |
| Insulation Class: | F |
| IP: | 55 |
| Speed | 910-2980r/min |
| Ambient Temperature | -15°C-40°C |
| IM: | B3,B5,B35,B14,B34 |
| Delivery Time: | 30 Days |
| Package | Plywood cases |
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
