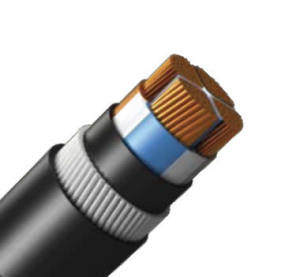

Low Voltage Lsh Swa Power Cable
| Price: |
US $ 0.76-0.8/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
lv cable BM58 |
| Option Conductor: |
Aluminum |
| Application: |
Underground |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Brand: |
Yifang |
Product Description
Low Voltage LSHF SWA Power Cable
BS6724 Cu/XLPE/LSHF/SWA/LSHF 0.6/1kV
Cable Application
Designed for use in mains supply electricity where Low Smoke Halogen Free is required. These cables are provided with mechanical protection and manufactured using low smoke halogen free compounds, making them ideal for use in public buildings and areas where fire and smoke emission create a potential threat to equipment and life. The cable meets the requirements for flammability stated in IEC60332-3 Cat. C and EN 50266-2-4 and has low emission of smoke when burning. The cable is manufactured and tested according to BS 6724 600-1000 volts. LSHF SWA Cable is one of our most popular cables from small projects in the garden for landscapers to large infrastructure projects. Click to view some our occasionally blogged SWA cableprojects including the Emirate's.
Technical Information
| Conductor Material: | Copper, IEC60228 |
| Conductor Shape: | 1.5mm² up to 16mm² 25mm² up to 400mm² | Circular Sector-shaped |
| Conductor Flexibility: | Stranded class 2 |
| Insulation: | XLPE (Cross-linked Polyethylene), IEC60502 |
| Armour Type: | Galvanized steel wires |
| Outer Sheath: | LSHF, IEC60502 |
| Inner Sheath: | LSHF, IEC60502 |
| Colour: | Black |
| Lead Free: | Yes |
| Rated Voltage Uo/U (Um): | 600/1000V, B6724 |
| Installation Temperature: | Minimum: 0°C Maximum: 40°C |
| Installation Type: | Fixed Indoors and outdoor direct burial |
| Operating Temperature: | Maximum: 90°C |
| Short-circuit Maximum Conductor Temperature: | 250°C |
| Flame Retardant: | IEC 60332-3 Cat. C |
| Bending Radius: | 1.5mm² up to 16mm² = 6 x Ø
25mm² up to 400mm² = 8 x Ø |
Use the link on the part number to buy online.
| Part number | Cross sectionmm2 | Strandingmm | Approx weight kg/km | Approx overall diameter | Gland size mm | Single cleat | Nom. Max. DC-resist conductor 20°C ohm/km | Current rating laid direct amp |
2 Core SWA LSHF : Brown & Blue |
| SWALSHF2X1.5 | 2 x 1.5 | 7/0.53 | 300 | 12.3 | 16 | 0.5 | 12.10 | 38 |
| SWALSHF2X2.5 | 2 x 2.5 | 7/0.67 | 370 | 12.9 | 20s | 0.5 | 7.41 | 49 |
| SWALSHF2X4.0 | 2 x 4.0 | 7/0.85 | 460 | 13.9 | 20s | 0.6 | 4.61 | 65 |
| SWALSHF2X6.0 | 2 x 6.0 | 7/1.04 | 550 | 15.0 | 20 | 0.6 | 3.08 | 81 |
| SWALSHF2X10 | 2 x 10 | 7/1.35 | 870 | 17.05 | 20 | 0.7 | 1.83 | 109 |
| SWALSHF2X16 | 2 x 16 | 7/1.70 | 1,100 | 19.5 | 25 | 0.8 | 1.15 | 141 |
| SWALSHF2X25 | 2 x 25 | 7/2.14 | 1,070 | 22.1 | 25 | 0.8 | 0.727 | 183 |
| SWALSHF2X35 | 2 x 35 | 7/2.52 | 1,440 | 24.95 | 32 | 0.9 | 0.524 | 219 |
| SWALSHF2X50 | 2 x 50 | 19/1.78 | 1,775 | 25.4 | 32 | 1.0 | 0.387 | 259 |
| SWALSHF2X70 | 2 x 70 | 19/2.14 | 2,250 | 28.5 | 32 | 1.2 | 0.268 | 317 |
| SWALSHF2X95 | 2 x 95 | 19/2.52 | 3,190 | 32.55 | 32 | 1.4 | 0.193 | 381 |
| SWALSHF2X120 | 2 x 120 | 37/2.03 | 3,700 | 35.6 | 40 | 1.4 | 0.153 | 433 |
| SWALSHF2X150 | 2 x 150 | 37/2.25 | 4,375 | 38.15 | 40 | 1.6 | 0.124 | 485 |
| SWALSHF2X185 | 2 x 185 | 37/2.52 | 5,650 | 43.85 | 50s | 1.8 | 0.0991 | 547 |
| SWALSHF2X240 | 2 x 240 | 61/2.52 | 7,090 | 48.5 | 50 | 2.0 | 0.0754 | 632 |
| SWALSHF2X300 | 2 x 300 | 61/2.85 | 8,475 | 51.75 | 63s | 2.0 | 0.0601 | 708 |
| SWALSHF2X400 | 2 x 400 | 61/3.20 | 10,700 | 59.0 | 63 | TC9 | 0.0470 | 1 |
3 Core SWA LSHF : Brown, Black & Grey |
| SWALSHF3X1.5 | 3 x 1.5 | 7/0.53 | 341 | 12.17 | 16 | 0.5 | 12.10 | 32 |
| SWALSHF3X2.5 | 3 x 2.5 | 7/0.67 | 374 | 13.55 | 20s | 0.6 | 7.41 | 42 |
| SWALSHF3X4.0 | 3 x 4.0 | 7/0.85 | 458 | 14.68 | 20s | 0.6 | 4.61 | 55 |
| SWALSHF3X6.0 | 3 x 6.0 | 7/1.04 | 558 | 15.87 | 20 | 0.7 | 3.08 | 69 |
| SWALSHF3X10 | 3 x 10 | 7/1.35 | 841 | 18.63 | 20 | 0.8 | 1.83 | 92 |
| SWALSHF3X16 | 3 x 16 | 7/1.70 | 1,070 | 20.78 | 25 | 0.9 | 1.15 | 119 |
| SWALSHF3X25 | 3 x 25 | 7/2.14 | 1,625 | 24.9 | 32 | 1.0 | 0.727 | 152 |
| SWALSHF3X35 | 3 x 35 | 7/2.52 | 1,950 | 27.8 | 32 | 1.1 | 0.524 | 182 |
| SWALSHF3X50 | 3 x 50 | 19/1.78 | 2,300 | 28.0 | 32 | 1.2 | 0.387 | 217 |
| SWALSHF3X70 | 3 x 70 | 19/2.14 | 3,075 | 32.2 | 32 | 1.4 | 0.268 | 266 |
| SWALSHF3X95 | 3 x 95 | 19/2.52 | 4,225 | 37.0 | 40 | 1.6 | 0.193 | 319 |
| SWALSHF3X120 | 3 x 120 | 37/2.03 | 5,100 | 40.2 | 50s | 1.8 | 0.153 | 363 |
| SWALSHF3X150 | 3 x 150 | 37/2.25 | 6,510 | 45.3 | 50s | 1.8 | 0.124 | 406 |
| SWALSHF3X185 | 3 x 185 | 37/2.52 | 7,845 | 49.5 | 50 | 2.0 | 0.0991 | 458 |
| SWALSHF3X240 | 3 x 240 | 61/2.52 | 9,900 | 55.6 | 63s | TC9 | 0.0754 | 529 |
| SWALSHF3X300 | 3 x 300 | 61/2.85 | 13,560 | 59.6 | 63 | TC10 | 0.0601 | 592 |
| SWALSHF3X400 | 3 x 400 | 61/3.20 | 14,720 | 65.8 | 75s | TC11 | 0.0470 | 667 |
4 Core SWA LSHF : Brown, Black, Grey & Blue | | | | | | |
| SWALSHF4X1.5 | 4 x 1.5 | 7/0.53 | 351 | 12.88 | 20s | 0.5 | 12.10 | 32 |
| SWALSHF4X2.5 | 4 x 2.5 | 7/0.67 | 429 | 14.43 | 20s | 0.6 | 7.41 | 42 |
| SWALSHF4X4.0 | 4 x 4.0 | 7/0.85 | 538 | 16.87 | 20 | 0.6 | 4.61 | 55 |
| SWALSHF4X6.0 | 4 x 6.0 | 7/1.04 | 670 | 17.87 | 20 | 0.7 | 3.08 | 69 |
| SWALSHF4X10 | 4 x 10 | 7/1.35 | 998 | 20.1 | 25 | 0.8 | 1.83 | 92 |
| SWALSHF4X16 | 4 x 16 | 7/1.70 | 1,272 | 22.4 | 25 | 0.9 | 1.15 | 119 |
| SWALSHF4X25 | 4 x 25 | 7/2.14 | 1,940 | 27.0 | 32 | 1.0 | 0.727 | 152 |
| SWALSHF4X35 | 4 x 35 | 7/2.52 | 2,390 | 30.1 | 32 | 1.2 | 0.524 | 182 |
| SWALSFH4X50 | 4 x 50 | 19/1.78 | 2,925 | 31.5 | 32 | 1.4 | 0.387 | 217 |
| SWALSHF4X70 | 4 x 70 | 19/2.14 | 4,200 | 37.4 | 40 | 1.6 | 0.268 | 266 |
| SWALSHF4X95 | 4 x 95 | 19/2.52 | 5,355 | 40.9 | 50s | 1.8 | 0.193 | 319 |
| SWALSHF4X120 | 4 Â x 120 | 37/2.03 | 6,925 | 46.6 | 50 | 2.0 | 0.153 | 363 |
| SWALSHF4X150 | 4 x 150 | 37/2.25 | 8,200 | 50.2 | 50s | 2.0 | 0.124 | 406 |
| SWALSHF4X185 | 4 x 185 | 37/2.52 | 9,975 | 55.8 | 63s | TC9 | 0.0991 | 458 |
| SWALSHF4X240 | 4 x 240 | 61/2.52 | 12,700 | 62.5 | 63 | TC10 | 0.0754 | 529 |
| SWALSHF4X300 | 4 x 300 | 61/2.85 | 15,275 | 67.4 | 75s | TC11 | 0.0601 | 592 |
| SWALSHF4X400 | 4 x 400 | 61/3.20 | 19,875 | 77.0 | 75 | TC12 | 0.0470 | 667 |
5 Core SWA LSHF : White Numbered Cores with Black Print |
| SWALSHF5X1.5 | 5 x 1.5 | 7/0.53 | 395 | 13.72 | 20s | 0.6 | 12.10 | 32 |
| SWALSHF5X2.5 | 5 x 2.5 | 7/0.67 | 497 | 15.46 | 20s | 0.6 | 7.41 | 42 |
| SWALSHF5X4.0 | 5 x 4.0 | 7/0.85 | 674 | 17.38 | 20 | 0.7 | 4.61 | 55 |
| SWALSHF5X6.0 | 5 x 6.0 | 7/1.04 | 868 | 19.05 | 20 | 0.8 | 3.08 | 69 |
| SWALSHF5X10 | 5 x 10 | 7/1.35 | 1,197 | 22.06 | 25 | 0.9 | 1.83 | 92 |
| SWALSHF5X16 | 5 x 16 | 7/1.70 | 1,780 | 24.14 | 25 | 1.1 | 1.15 | 119 |
| SWALSHF5X25 | 5 x 25 | 7/2.14 | 2,435 | 28.4 | 32 | 1.2 | 0.727 | 152 |
| SWALSHF5X35 | 5 x 35 | 7/2.52 | 2,800 | 33 | 40 | 1.4 | 0.524 | 182 |
| SWALSHF5X50 | 5 x 50 | 19/1.78 | 3,850 | 38.0 | 40 | 1.6 | 0.387 | 217 |
| SWALSHF5X70 | 5 x 70 | 19/2.14 | 5,100 | 42.9 | 50s | 1.8 | 0.268 | 266 |
| SWALSHF5X95 | 5 x 95 | 19/2.52 | 7,700 | 52.1 | 50 | TC9 | 0.193 | 319 |
| SWALSHF5X120 | 5 x 120 | 37/2.03 | 9,035 | 56.7 | 63s | TC9 | 0.153 | 363 |
| SWALSHF5x150 | 5 x 150 | 37/2.25 | 10,755 | 64.31 | 63 | TC11 | 0.124 | 406 |
7 Core SWA LSHF : White Numbered Cores with Black Print |
| SWALSHF7X1.5 | 7 x 1.5 | 7/0.53 | 449 | 14.65 | 20s | 0.6 | 12.10 | 32 |
| SWALSHF7X2.5 | 7 x 2.5 | 7/0.67 | 564 | 16.53 | 20 | 0.8 | 7.41 | 42 |
| SWALSHF7X4.0 | 7 x 4.0 | 7/0.85 | 824 | 18.96 | 20 | 0.8 | 4.61 | 55 |
| SWALSHF7X6.0 | 7 x 6.0 | 7/1.04 | 1,105 | 21.6 | 25 | 0.9 | 3.08 | 69 |
| SWALSHF7X10 | 7 x 10 | 7/1.35 | 1,610 | 25.3 | 25 | 1 | 1.83 | 98 |
| SWALSHF7X16 | 7 x 16 | 7/1.70 | 2,225 | 28.45 | 32 | 1.2 | 1.15 | 119 |
| SWALSHF7X25 | 7 x 25 | 7/2.14 | 3,880 | 38.4 | 32 | 1.4 | 0.727 | 152 |
12 Core SWA LSHF : White Numbered Cores with Black Print |
| SWALSHF12X1.5 | 12 x 1.5 | 7/0.53 | 756 | 18.9 | 25 | 0.8 | 12.10 | 32 |
| SWALSHF12X2.5 | 12 x 2.5 | 7/0.67 | 971 | 21.76 | 25 | 0.9 | 7.41 | 42 |
| SWALSHF12X4.0 | 12 x 4.0 | 7/0.85 | 1,403 | 25.97 | 25 | 1.0 | 4.61 | 55 |
| SWALSHF12X6.0 | 12 x 6.0 | 7/1.04 | 1,910 | 28.1 | 32 | 1.2 | 3.08 | 69 |
| SWALSHF12X10 | 12 x 10 | 7/1.35 | 2,590 | 32.4 | 32 | 1.4 | 1.83 | 98 |
19 Core SWA LSHF : White Numbered Cores with Black Print |
| SWALSHF19X1.5 | 19 x 1.5 | 7/0.53 | 992 | 21.99 | 25 | 0.9 | 12.10 | 32 |
| SWALSHF19X4.0 | 19 x 4.0 | 7/0.85 | 1,870 | 28.46 | 32 | 1.1 | 4.61 | 55 |
| SWALSHF27X1.5 | 27 x 1.5 | 7/0.53 | 1,470 | 21.99 | 25 | 1 | 12.10 | 32 |
27 Core SWA LSHF : White Numbered Cores with Black Print | | | | |
| SWALSHF27X2.5 | 27 x 2.5 | 7/0.67 | 1,905 | 30.1 | 32 | 1.2 | 7.41 | 42 |
| SWALSHF27X4.0 | 27 x 4.0 | 7/0.85 | 2,495 | 33.2 | 32 | 1.4 | 4.61 | 55 |
37 Core SWA LSHF : White Numbered Cores with Black Print |
| SWALSHF37X1.5 | 37 x 1.5 | 7/0.53 | 1,640 | 21.99 | 32 | 1.1 | 12.10 | 32 |
| SWALSHF37X2.5 | 37 x 2.5 | 7/0.67 | 2,363 | 30.1 | 40 | 1.4 | 7.41 | 42 |
| SWALSHF37X4.0 | 37 x 4.0 | 7/0.85 | 3,090 | 33.2 | 40 | 1.4 | 4.61 | 55 |
48 Core SWA LSHF : White Numbered Cores with Black Print |
| SWALSHF48X1.5 | 48 x 1.5 | 7/0.53 | 2,175 | 30.0 | 40 | 1.2 | 12.10 | 32 |
| SWALSHF48X2.5 | 48 x 2.5 | 7/0.67 | 3,115 | 37.4 | 40 | 1.6 | 7.41 | 42 |
| SWALSHF48X4.0 | 48 x 4.0 | 7/0.85 | 4,110 | 44.5 | 50s | 1.8 | 4.61 | 55 |
Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.
There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc
We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
