| Prod Model: |
240mm2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industrial: |
Electric Stations |
| Voltage Range: |
3.6/6kv |
| Standard: |
ASTM, AS/NZS, BS, CSA, DIN, IEC... |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Certificate: |
Ce, ISO 9001 |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
ISO |
| Brand: |
Jytop |
Product Description

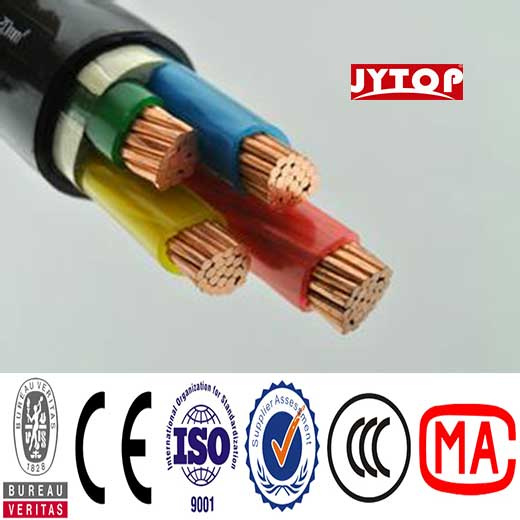

Low Voltage LV Power Cable with XLPE Swa armoured Cable1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
6.35/11kV CU/XLPE/PVC(or PE) Power Cable 1. Description
Construction: Compacted stranded circular copper conductor, extruded semi-conducting compound as conductor shield, cross-linked polyethylene (XLPE) insulation, semi-conducting compound as insulation shield, copper tape or combination of copper wire and tape as metallic screen, three cores assembled together with non-hygroscopic
polypropylene filler, wrapped with binder tape, PVC or PE outer sheath.
Chinese Type |
Description | Core qty | Conductors range |
| YJV | Copper conductor, XLPE insulation, PVC outer sheath Power Cable | 1 or 3 | 25~800mm2 |
YJY |
Copper conductor, XLPE insulation, PE outer sheath Power Cable |
1 or 3 |
25~800mm2 |
| ZA-YJV ZB-YJV ZC-YJV |
Copper conductor, XLPE insulation flame-retardant Power Cable |
1 or 3 |
25~800mm2 |
| WDZA-YJY WDZB-YJY WDZC-YJY |
Copper conductor, XLPE insulation Low Smoke Halogen Free or Zero
Halogen (LSHF or LSZH) flame-retardant Power Cable |
1 or 3 |
25~800mm2 |
2. Operating Characteristics
Rated voltage U0/U(Um): 6.35/11(12)kV
xlpe cable is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed; U is the rated power frequency voltage between conductors for which the cable is designed;
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
Max. permissible continuous operating temperature of conductor: 90 °C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250 °C The ambient temperature under installation should not be lower than: 0 °C.
The bending radius of cable is recommended as following:
For single core cable: not less than 20 times of the diameter of cable
For three core cable: not less than 15 times of the diameter of cable
3. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, outdoors, in tunnel or in cable trench, unable to bear external mechanical force.
Single core cable in magnetic duct is not permissible.
4. Manufacturing Standards
IEC 60502-2 and Chinese National Standard GB/T 12706-2008
We can produce above cables according to popular international standards such as ASTM,BS,DIN,NF &AS/NZ also.
5. Main technical data
5.1 Main technical data of 6.35/11KV, Single core, Copper conductor, XLPE insulated, and PVC or PE sheath cable
CABLE CONSTRUCTION: 6.35/11KV CU/XLPE/PVC or PE
Size | Nominal
thickness of
XLPE
insulation(mm) | Approx.
thickness of copper tape
screen (mm) | Nominal
thickness of
PVC or
PE(mm) | Approx. overall
diameter of finished
cable(mm) | Max. conductor D.C resistance @ 200C (Ω/km) |
| 1x25mm2 | 3.4 | 0.12 | 1.8 | 20.3 | 0.727 |
| 1x35mm2 | 3.4 | 0.12 | 1.8 | 21.3 | 0.524 |
| 1x50mm2 | 3.4 | 0.12 | 1.8 | 22.4 | 0.387 |
| 1x70mm2 | 3.4 | 0.12 | 1.8 | 24.1 | 0.268 |
| 1x95mm2 | 3.4 | 0.12 | 1.8 | 25.7 | 0.193 |
| 1x120mm2 | 3.4 | 0.12 | 1.8 | 27.1 | 0.153 |
| 1x150mm2 | 3.4 | 0.12 | 1.8 | 28.7 | 0.124 |
| 1x185mm2 | 3.4 | 0.12 | 1.9 | 30.5 | 0.0991 |
| 1x240mm2 | 3.4 | 0.12 | 2.0 | 33.1 | 0.0754 |
| 1x300mm2 | 3.4 | 0.12 | 2.0 | 35.1 | 0.0601 |
| 1x400mm2 | 3.4 | 0.12 | 2.1 | 38.5 | 0.0470 |
| 1x500mm2 | 3.4 | 0.12 | 2.2 | 42.2 | 0.0366 |
| 1x630mm2 | 3.4 | 0.12 | 2.3 | 46.3 | 0.0283 |
| 1x800mm2 | 3.4 | 0.12 | 2.5 | 50.4 | 0.0221 |
5.2 Main technical data of 6.35/11KV Single core, Copper conductor, XLPE insulated, copper wire screened and
PVC or PE sheath cable
CABLE CONSTRUCTION: 6.35/11KV CU/XLPE/CWS/PVC or PE,
Size | Nominal
thickness of
XLPE
insulation(mm) | Approx.
thickness of copper tape
screen (mm) | Nominal diameter
of copper wire(mm) | Nominal
thickness of
PVC or
PE(mm) | Approx. overall
diameter of finished
cable(mm) | Max.
conductor D.C
resistance @
200C (Ω/km) |
| 1x25mm2 | 3.4 | 0.12 | 0.9 | 1.8 | 21.9 | 0.727 |
| 1x35mm2 | 3.4 | 0.12 | 0.9 | 1.8 | 22.9 | 0.524 |
| 1x50mm2 | 3.4 | 0.12 | 0.9 | 1.8 | 24.0 | 0.387 |
| 1x70mm2 | 3.4 | 0.12 | 0.9 | 1.8 | 25.7 | 0.268 |
| 1x95mm2 | 3.4 | 0.12 | 0.9 | 1.8 | 27.3 | 0.193 |
| 1x120mm2 | 3.4 | 0.12 | 0.9 | 1.8 | 28.7 | 0.153 |
| 1x150mm2 | 3.4 | 0.12 | 0.9 | 1.8 | 30.3 | 0.124 |
| 1x185mm2 | 3.4 | 0.12 | 0.9 | 1.9 | 32.1 | 0.0991 |
| 1x240mm2 | 3.4 | 0.12 | 0.9 | 2.0 | 34.7 | 0.0754 |
| 1x300mm2 | 3.4 | 0.12 | 0.9 | 2.1 | 36.9 | 0.0601 |
| 1x400mm2 | 3.4 | 0.12 | 0.9 | 2.2 | 40.3 | 0.0470 |
| 1x500mm2 | 3.4 | 0.12 | 0.9 | 2.3 | 44.2 | 0.0366 |
| 1x630mm2 | 3.4 | 0.12 | 0.9 | 2.4 | 48.0 | 0.0283 |
| 1x800mm2 | 3.4 | 0.12 | 0.9 | 2.5 | 52.0 | 0.0221 |
5.3 Main technical data of 6.35/11KV, three cores, Copper conductor, XLPE insulated, and PVC or PE sheath cable.
CABLE CONSTRUCTION: 6.35/11KV CU/XLPE/PVC or PE
Size | Nominal thickness of
XLPE
insulation(mm) | Approx. thickness of
copper tape screen (mm) | Nominal thickness of
PVC or
PE(mm) | Approx. overall diameter of
finished cable(mm) | Max. conductor D.C resistance @ 200C (Ω/km) |
| 3x25mm2 | 3.4 | 0.10 | 2.2 | 40.9 | 0.727 |
| 3x35mm2 | 3.4 | 0.10 | 2.3 | 43.3 | 0.524 |
| 3x50mm2 | 3.4 | 010 | 2.4 | 45.9 | 0.387 |
| 3x70mm2 | 3.4 | 0.10 | 2.5 | 49.8 | 0.268 |
| 3x95mm2 | 3.4 | 0.10 | 2.6 | 53.6 | 0.193 |
| 3x120mm2 | 3.4 | 0.10 | 2.7 | 56.8 | 0.153 |
| 3x150mm2 | 3.4 | 0.10 | 2.8 | 60.6 | 0.124 |
| 3x185mm2 | 3.4 | 0.10 | 2.9 | 64.3 | 0.0991 |
| 3x240mm2 | 3.4 | 0.10 | 3.1 | 69.9 | 0.0754 |
| 3x300mm2 | 3.4 | 0.10 | 3.3 | 74.6 | 0.0601 |
| 3x400mm2 | 3.4 | 0.10 | 3.5 | 82.2 | 0.0470 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
