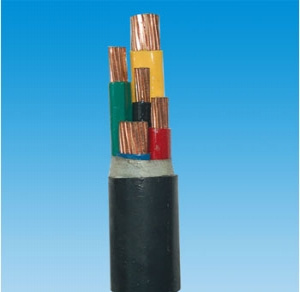

Low Voltage Power Cable 4*35mm2

Prod Model:	YF003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Low Voltage Power Cable 4*35mm2
Application:	Power Station
Certification:	CE

Product Description

0.6/1KV Cu/Al Conductor PVC Insulation PVC Sheath Power Cable
1. The applications: Rated voltage (U0/U) 0.6/1KV in transmission & transformation line & for water-proofing purpose.
2. Standards: IEC60502-1 2004 ISO9001: 2008
3. Product Features: Electric power cables
1) No necessary to heat up in advance while installing above 0oC.
2) Max. Continuous normal operating Temperature: 70oC (PVC Sheathed Cable).
3) Max. Permissible temperature at short circuit (5s. At longest): 160oC.
4) Permissible bending radius:
Single core: ≥ 20(d+D)± 5%.
Three-core: ≥ 15(d+D)± 5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Detailed Description: Electric power cables
Cross-linked PVC insulation power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and can be used conveniently and also can be laid with no restriction of different levels. The long term operating temperature is 700C, and its transmission capacitance is large.
Our company can produce both flame retardant and non-flame retardant series of PVC power cables. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards as stated above...Electric power cables
The flame-retardant cable covers all kinds of low-smoke, free-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special PVC cables according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on. Electric power cables
Mouse, and so on. Electric power cables
Rate
Voltage(kv)
Sectional
Area(mm 2 )
No. Of Core

1st class
0.6/1
1.8/3
3.6/6
6/10
8.7/15
12/20
18/30
21/35
2nd class
1/1
3/3
6/6
8.7/10
12/15
18/20
-
26/35
1 Core

1.5-800
25-800
25-1200
25-1200
35-1200
50-1200
50-1200
50-1200
2 Core

1.5-185
25-185






3 Core

1.5-400
25-400
25-400
25-400
35-400
50-400
50-400
50-400
4 Core

2.5-400
25-400






5 Core

2.5-400
25-400
