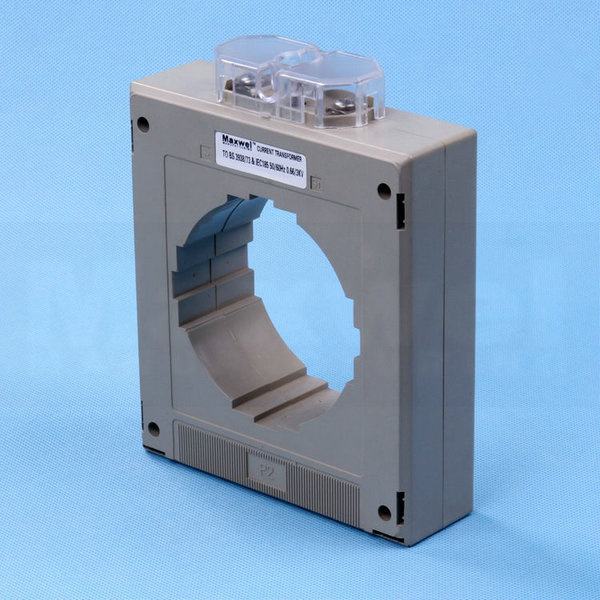

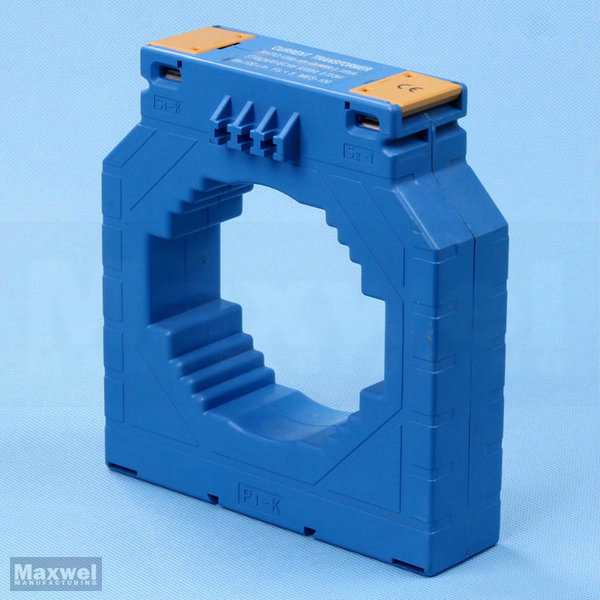

Low Voltage Single Phase Current Transformer (MES100-60)

Name: Low Voltage Single Phase Current Transformer (MES100-60)
Brand: all-electronics-online.com
SKU: 705353445
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	US $ 1.99/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MES100-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Blue
Class:	0.5/1.0
Primary Current:	5A-3000A
Frequency:	50/60Hz
Type:	Current Transformer

Product Description

MES current transformers, railtype current transformer

Primary current: 5A-3000A
Secondary current: 5A, 1A
Standary approval: VDE0414, BS7626, CT IEC 44-1 standard
Maximum voltage: 0.72/3kv
Frequency: 50-60Hz
Rated load: 2.5VA, 5VA, 10VA, 15VA
Class: 0.5, 1.0
Short-time thermal current: 1th=60X1h
Rated security coefficient: FS<5

Type	Rated current (A)	Rated power(VA)
Type	Rated current (A)	Class: 0.5	Class: 1
MES-62/20B	5/5	2.5	5
	10/5	2.5	5
	15/5	2.5	5
	20/5	2.5	5
	25/5	2.5	5
	30/5	2.5	5
	40/5	2.5	5
	50/5	2.5	5
	60/5	2.5	5
	75/5	2.5	5
	100/5	2.5	5
	150/5	2.5	5

Product Details:

A: Standard export package and we can make special designed for you if need.
