Shandong New Luxing Cable Co., Ltd. >> Low Voltage XLPE Fire-Resistant 0.6/1kv Cu Lsoh Power Cable

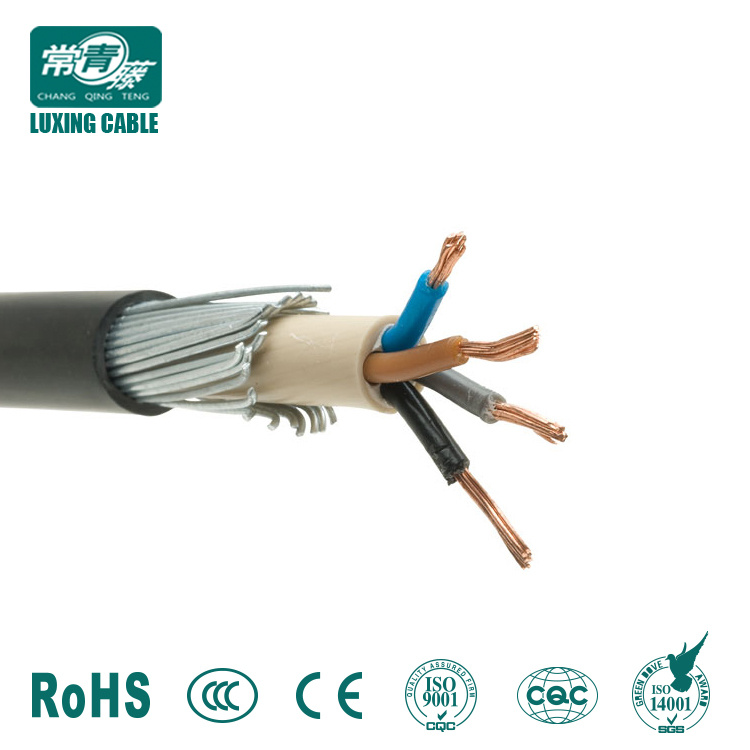

Low Voltage XLPE Fire-Resistant 0.6/1kv Cu Lsoh Power Cable

Low Voltage XLPE Fire-Resistant 0.6/1kv Cu Lsoh Power Cable
Price: US $ 0.1-30/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 0.6/1Kv Cu Lsoh Power Cable
Product Name: 0.6/1kv Cu Lsoh Power Cable
Rated Voltage: 0.6/1 Kv
Conductor: Copper
Insulation: XLPE / PVC
Sheath: PVC
Core Number: 1 2 3 4 5
Color Color: Red , Yellow , Blue ,Green or as Your Requirement
Origine: Shandong , China
Packaging: Wooden Drum
Shipping: 3-10 Working Days
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: XLPE
Certification: VDE
Model: XLPE Power Cable
Brand: Chan Qing Teng

Product Description

Application:

The cable is used to transmit and distribute power on the power line of power of rated AC voltage 0.6/1KV or lower.



Working Condition:

1.Rated voltage of cable is 0.6/1kv

2.Max. rated temperature of cable conductor is 90ºC

3.During short circuit(the longest lasting time is shall be not more than 5 seconds),Max. temperature of cable
conductor is not more than 250ºC

4.For installation,enviroment temperature is not less 0ºC,bending radius is not less than 12 times of outer
diameter of cables.



Type and Name:

TypeNameApplication

NH-YJV

NH-YJLV

Power cable with XLPE insulation and PVC sheath

Laying indoors and outdoors,able to

withstant some laying traction,

unable to withstand external pressure

and mechanical forces,single core is

not allowable to lay up in

magnetic pipelines

ZCN-YJV

ZCN-YJLV

Power cable with XLPE insulation , PVC sheath

and flame retardant category C

WDZCN-YJYWDZCN-YJLY

Power cable with XLPE insulation , polyolefin

sheath and low smoke zero halogen, flame

retardant category C

NH-YJV22

NH-YJLV22

Power cable with XLPE insulation steel tape

armoring,PVC sheath

Laying underground directly,able to

withstand external mechaniical forces,

but unable to withstand large

pulling forces

ZCN-YJV22

ZCN-YJLV22

Power cable with XLPE insulation steel tape

armoring,PVC sheath and flame retardant

category C

WDZCN-YJY23

WDZCN-YJLY23

Power cable with XLPE insulation steel

tape armoring,

polyolefin sheath and low smoke zero halogen

flame retardant category C

NH-YJV32

NH-YJLV32

Power cable with XLPE insulation steel

wire armoring,PVC sheath

Laying in the water or high drop area,

able to withstand

external mechanical forces and

quite pulling forces

ZCN-YJV32

ZCN-YJLV32

Power cable with XLPE insulation steel

wire armoring,PVC sheath and flame

retardant category C

WDZCN-YJY33

WDZCN-YJLY33

Power cable with XLPE insulation and PVC sheath

NH-YJV42

NH-YJLV42

Power cable with XLPE insulation ,heavy steel

wire armoring ,PVC sheath



ZCN-YJV42

ZCN-YJLV42

Power cable with XLPE insulation ,heavy steel

wire armoring ,PE sheath,free flame retardant

category C

WDZCN-YJY43

WDZCN-YJLY43

Power cable with XLPE insulation ,heavy steel

wire armoring ,polyolefin sheath and

low smoke zero halogen

flame retardant category C

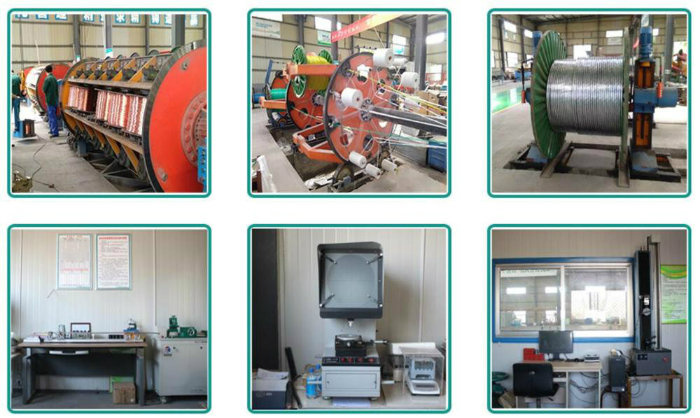

Luxing Factory : our production base

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire AAC conductor
600/1000V PVC insulated cableAAAC conductor
600/1000V XLPE insulated cableACSR conductor
1.8/3KV to 26/35KV power cable OPGW
Armored underground cableABC cable
Control cable and instrumentation cables Rubber cable

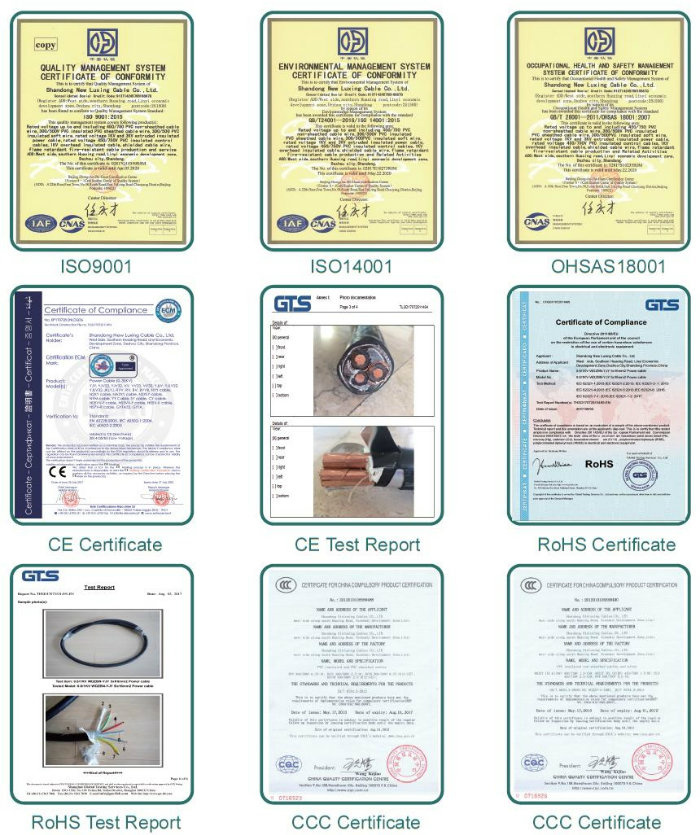

Certificates

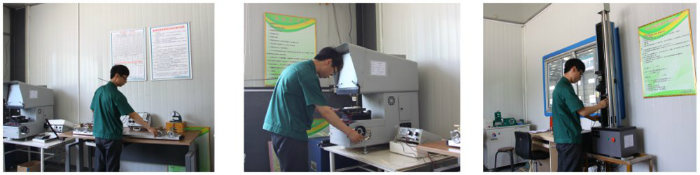

Strict Quality Test


Packaging & Shipping

After -sale Service


Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency


Contact us




1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
