Low Vswr 1/2'' Leaky Feeder Communication Cable
| Price: |
US $ 0.48-0.76/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Feeder Cable |
| Working Humidity: |
10% - 95% |
| Number Of Conductro: |
1 |
| Capacitance: |
22.0 PF/FT- 73.0 PF/M |
| Inner Conductor: |
Smooth Copper Tube |
| Outer Conductor: |
Corrugated Copper Tube |
| Material Feature: |
Black LSZH PE |
| Shielding Coverage: |
30%-95% |
| Application Scope: |
Communication/Industry |
| Insulation Feature: |
Physical Foam |
| Item Name: |
Leaky Feeder Communication Cable |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Telecommunication/Industry |
| Insulation Material: |
PE |
| Certification: |
SAA, PSE, TUV |
| Conductor Material: |
Bare Copper/CCA |
| Sheath Material: |
PE |
| Range Of Application: |
Lsoh, Flame Retardant |
| Brand: |
Jiukai/OEM |
Product Description

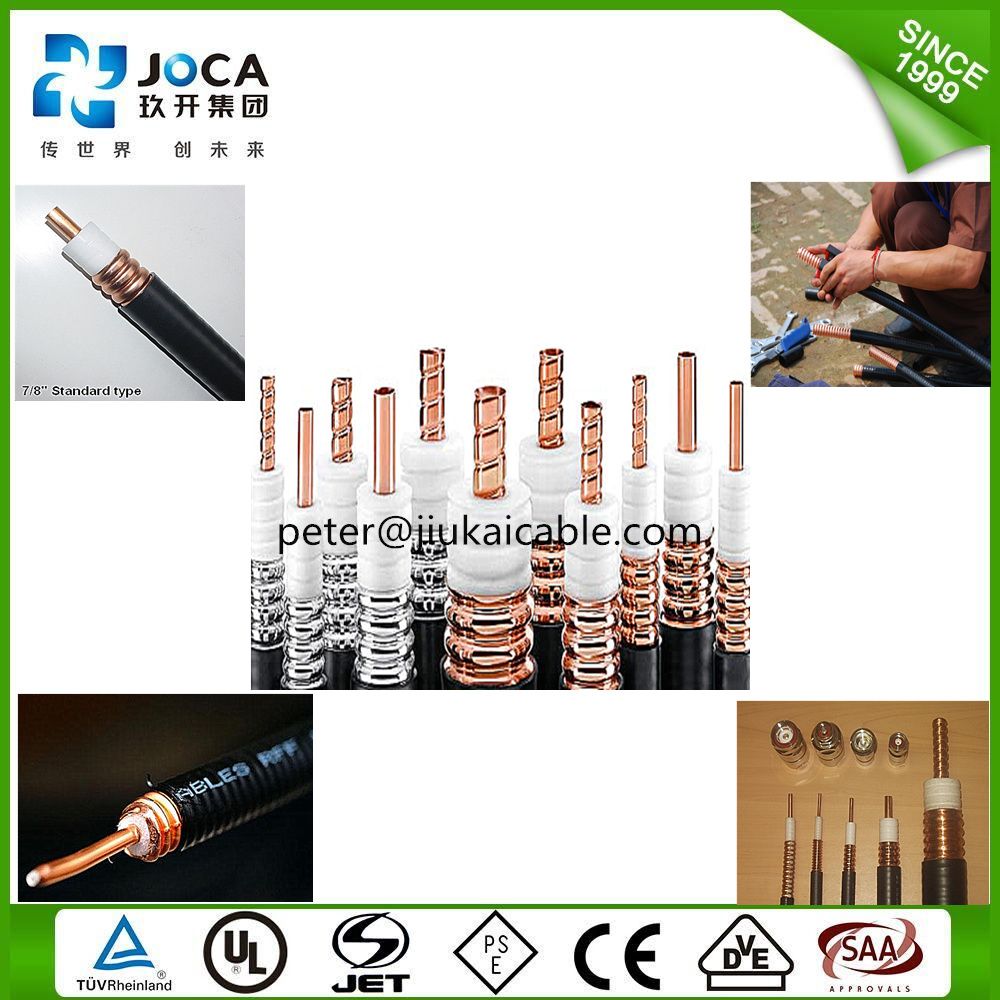

Low VSWR 1/2'' leaky Feeder Communication Cable

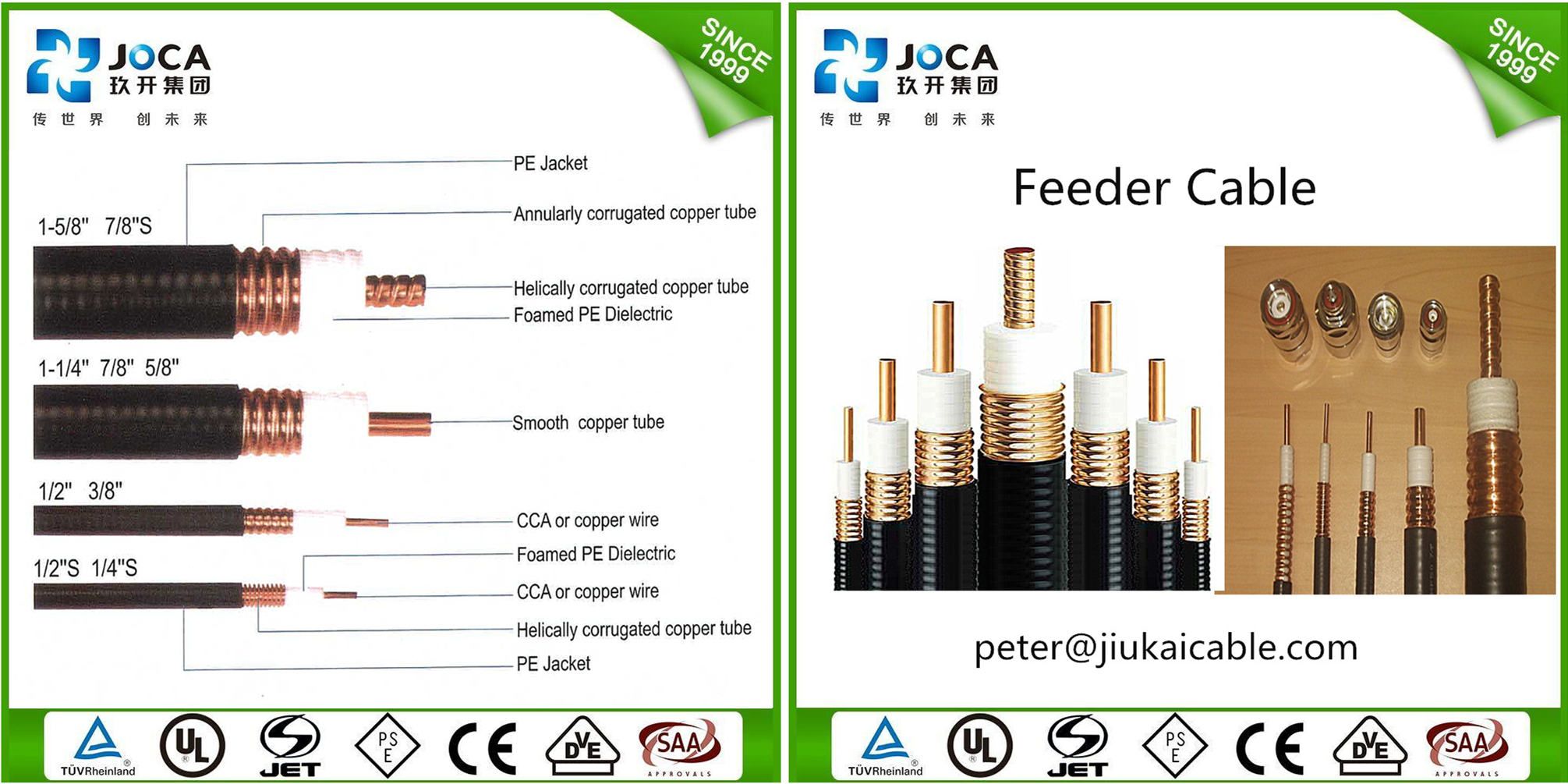

Options for material (leaky feeder coaxial cable) 1) Inner conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: unbonded AP, Bonded AP, APA, Bonded APA available;
3) Braiding material: Al-mg, CCA,Bare Copper and Tinned Copper wire available;
4) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 30- 95% available;
7) Jacket material: PVC, PE Flame retardant,UV, Rohs, available.
8) Note: Customized Specifications are also welcomeWhat is leaky feeder coaxial cable ? Coaxial Cable (often referred to as coax), is an electrical cable made up of a shielded
central core surrounded by an insulating spacer is intern shielded by an outer cylindrical conductor.
The cable tends to be protected by an outer rubber or plastic jacket. The inner conductor,
known as the center core, and the outer cylindrical conductor, known as the metallic shield,
share the same geometric axis, hence the name, coaxial cable.
Used primarily as a means of conducting electronic signals such as television, radio and Internet,
coaxial cables provide a high degree of protection against electromagnetic interference and attenuation.
Coax cable is designed to guide electronic signals with low emission along the length of the cable.Specification Parameters for Leaky Feeder Communication Cable| Type | Impedance | Diameter of Conductor | Jacket | Weight |
| (Ohms) | Inner(mm) | Outer(mm) | Thickness(mm) | Diameter(mm) | (kg/km) |
| 1-5/8" | 50 | 17.3 | 46.5 | 1.75 | 50 | 1310
1-1/4 |
| 1-1/4" | 50 | 13.1 | 35.8 | 1.8 | 39.4 | 980 |
| 7/8" | 50 | 9.05 | 24.9 | 1.3 | 27.5 | 530 |
| 5/8" | 50 | 7.05 | 19.8 | 1.2 | 22.2 | 400 |
| 1/2" | 50 | 4.8 | 13.8 | 1 | 15.8 | 240 |
| 3/8" | 50 | 3.15 | 9.53 | 0.85 | 11.2 | 135 |
| 7/8" S | 50 | 9.42 | 24.9 | 1.05 | 27.5 | 430 |
| 1/2" S | 50 | 3.6 | 12.2 | 0.7 | 13.2 | 120 |
| 1/4" S | 50 | 1.91 | 6.4 | 0.6 | 7.4 | 80 |

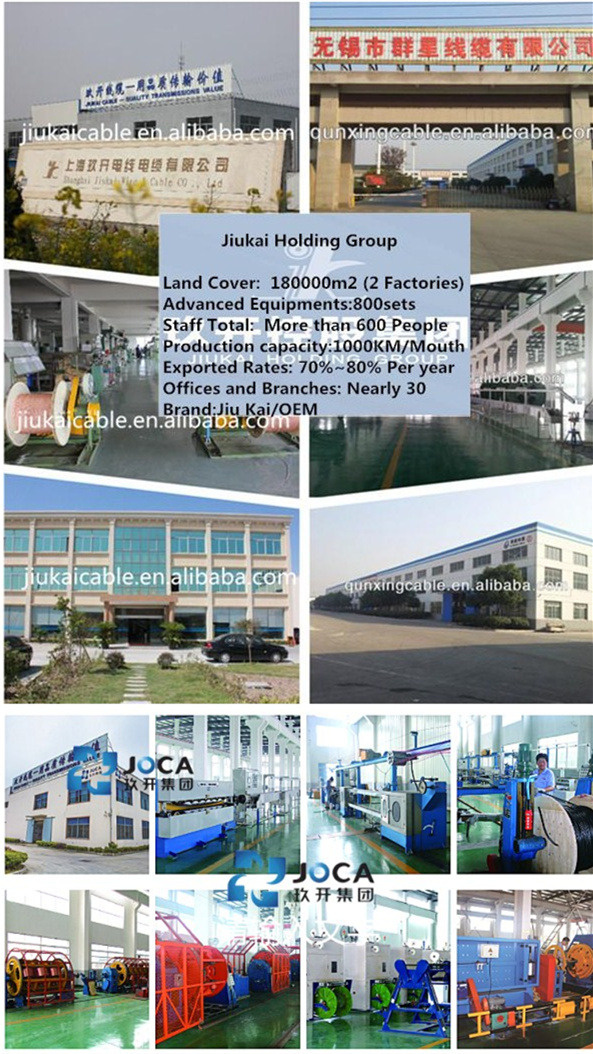

Group Profile JOCA holding group is an enterprise group,integrated research,manufacture&trade. The group has he group total capital RMB 250million&o occupied area 1800 thousand sqm including building area 1000 thousand sqm. The group has more than 800 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1.6 billion, 600 employees and nearly domestic& overseas representative offices or branch companies. Subsidiary company Shanghai Jiukai Wire&Cable Co.,Ltd, Jiukai Communication Technology(Shanghai)Co.,Ltd.&Wuxi City Qunxing Wire&Cable Co.,Ltd. are fully invested Wholly owned companies by JOCA group in cable, telecommunication&integrated general wiring industry. We mainly produce 10 categories(thousands of kinds)cables, such as audio&video cable, elevator cable, data cables,computer cable, CAT5E LAN cable, CAT6E cable, solar PV cable, UL Wire,flexible cable and special cable.
With so many years' manufacturing experience, our cables are well sold to America, Europe,Middle-east, Southeast Asia and Africa. And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE Certificate, German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises","China Top Brand" and "China Cable Manufacturer TOP100.
Main Products1.Solar Cable2.IP67 MC4 Connector3.Elevator Cable4.TPS Cable5.Coxial Cable6.Flexible Power Cable 0.6/1kv7.CE Sheathed Cable8.UL&CE Standard WireAdvantages1.Large Scale Factory-Encolsed Company Information File.2.Complete Qualified Approvals.3.OEM, Quality is guaranteed.4.Wire&Cable with High Quality&Competitive Price.5.Import-Exported Operating Licence.6.Short Dlivery Time.Packing&Shipping for Leaky Feeder Communication Cable
Our Service1. OEM Manufacturing welcome: Product, Package... 2. Sample order .3. We will reply you for your inquiry in 24 hours.4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solutions for you.FAQQ1. What is your terms of packing?A: Generally, we pack our goods in wooden pallet or wooden case. And we aslo can put your brand or LOGO on packaging after getting your authorization letters.Q2. What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q3. What is your terms of delivery?A: EXW, FOB, CFR, CIF, DDU.Q4. How about your delivery time?A: Generally, it will take about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q5. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q6. What is your sample policy?A: We can supply free sample if we have ready parts in stock.Q7. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ8: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.Contact Us
Low VSWR 1/2'' leaky Feeder Communication Cable
...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler
Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.

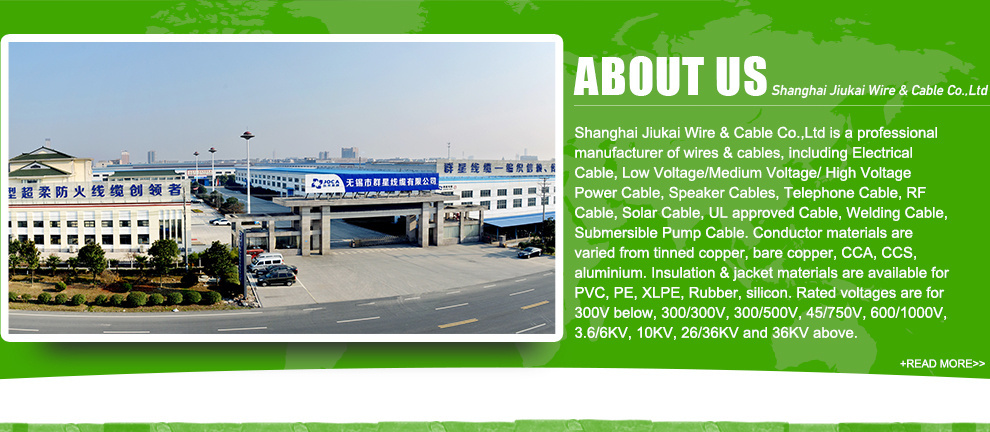

Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
