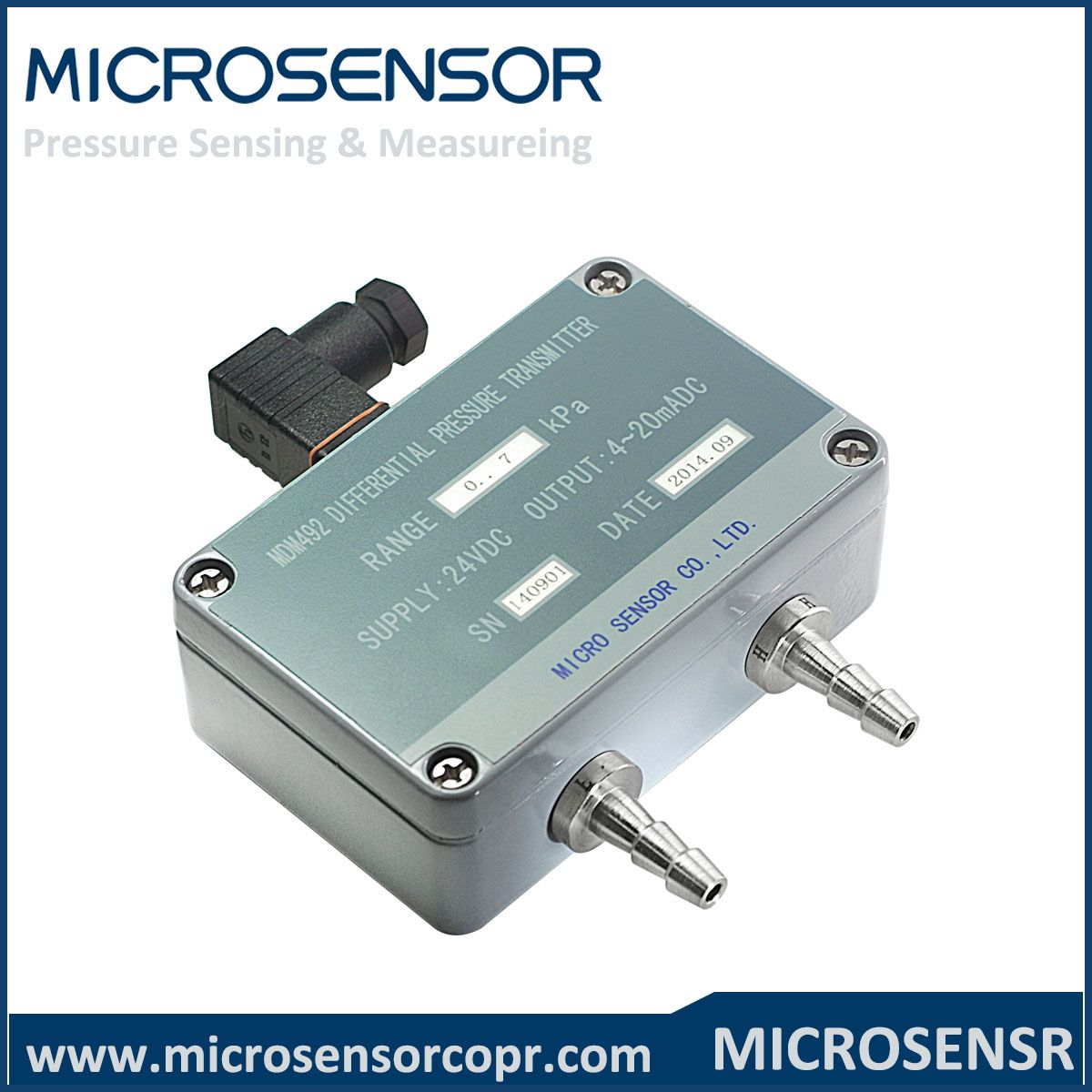

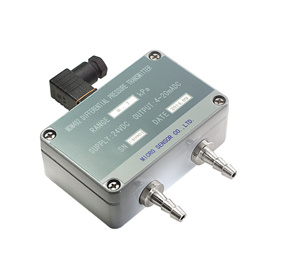

Low Water Differential Pressure Transducer Mdm492

Name: Low Water Differential Pressure Transducer Mdm492
Brand: all-electronics-online.com
SKU: 741728585
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDM492
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Low Ranges For Gas:	0-1kpa, 2.5kps, 7kpa
Accuraacy:	Less Than 1%Fs
Pressure Type:	Differential Pressure
Housing:	Stainless Steel
Keywords:	Water Lever Transducer
Media Temperaure:	-10~85c
Power Supply:	15~30VDC
Compensation Temperature:	0~70c
Output:	4~20madc
Relative Humidity:	0~80%
Accuracy Grade:	0.25%Fs(Typ.)

Product Description

Low Water Differential Pressure Transducer Mdm492

Features:

  1. For non-corrosive, non-conductive liquids
  2. For low range
  3. Compact size
  4. Cost effective
  5. Reliable

Specifications:

  1. Overpressure: 3kPa 7.5kPa 21kPa
  2. Limited pressure: 5kPa 12.5kPa 35kPa
  3. Static pressure: 300kPa 300kPa 300kPa
  4. Long-term stability: ≤ 10Pa/year ≤ 25Pa/year ≤ 70Pa/year
  5. Zero temp. Drift: ≤ ± 0.05kPa ≤ ± 0.125kPa ≤ ± 0.4kPa (0~70° C, @25° C)
  6. FS temp. Drift: ≤ ± 0.02kPa ≤ ± 0.05kPa ≤ ± 0.14kPa (0~70° C, @25° C)
  7. Storage temp.: -40° C~125° C
  8. Pressure port: Stainless steel 1Cr18Ni9Ti
  9. Electric housing: Aluminum-alloy

Order Guide:

MDM492	Differential Pressure Transmitter
	Code	Pressure range: 0~17kPa
	[0~X]kPa	X=actual measure range
		Code	Output signal
		E	4~20mADC

MDM492 [0~2.5]kPa E the whole spec

Order Note
If the user has special requirement, please feel free to contact our company.
