Lowest Price High Quality Single Point 5kg Load Cell Sensor

Name: Lowest Price High Quality Single Point 5kg Load Cell Sensor
Brand: all-electronics-online.com
SKU: 829806415
Availability: InStock
Rating: 4.9 (40 reviews)

Price:	US $ 3/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-55

Product Description

QL-55(III) mini load cell is a customized product with the capacity of 5kg

Aluminum alloy construction with single point type.

Silicon adhesive sealed, surface anodized and anti-corrosion.

Integral structure and easy installation.

Suitable for electronic balance, electronic platform scale and other electronic weighing devices.

Features:
1.  Capacity :5kg
2. High accuracy.
3.  Aluminum alloy parallel beam
4.  Integral installation

The cable length could be chose by customer's application.

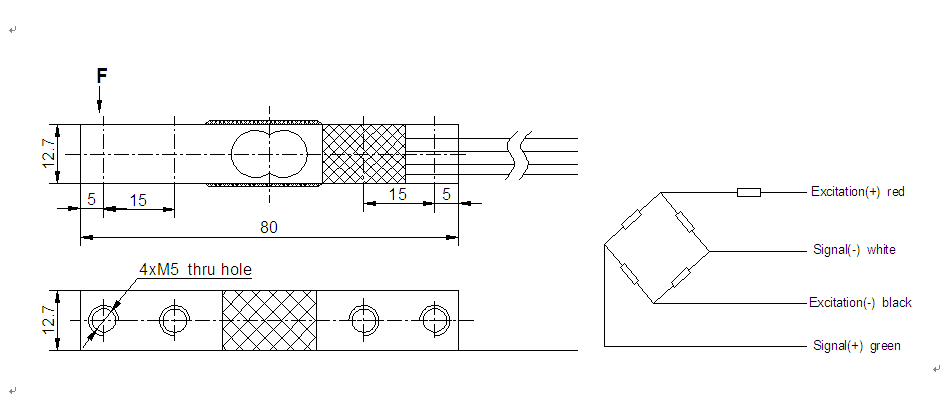

Electrical connection and Dimensions(mm):

Technical Specifications:

Specifications:
capacity	kg	5kg
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	1.0 ± 0.1
excitation voltage	Vdc	5 ~ 12
combined error	%FS	± 0.05
zero unbalance	mV/V	± 0.1
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.05
repeatability	%FS	± 0.03
creep	%FS/5min	± 0.05
input resistance	Ω	1090 ± 50
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 3000 @ 50 Vdc
operating temperature range	ºC	-20 ~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.05
temperature coefficient of ZERO	%FS/10ºC	± 0.05

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

The four-dispersion wire could be selected

Cable length: 160mm ±20 mm

Cable diameter: 0.8 ±0.2 mm

The cable length could be chose by customer's application.

Packaging & Shipping

All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package
