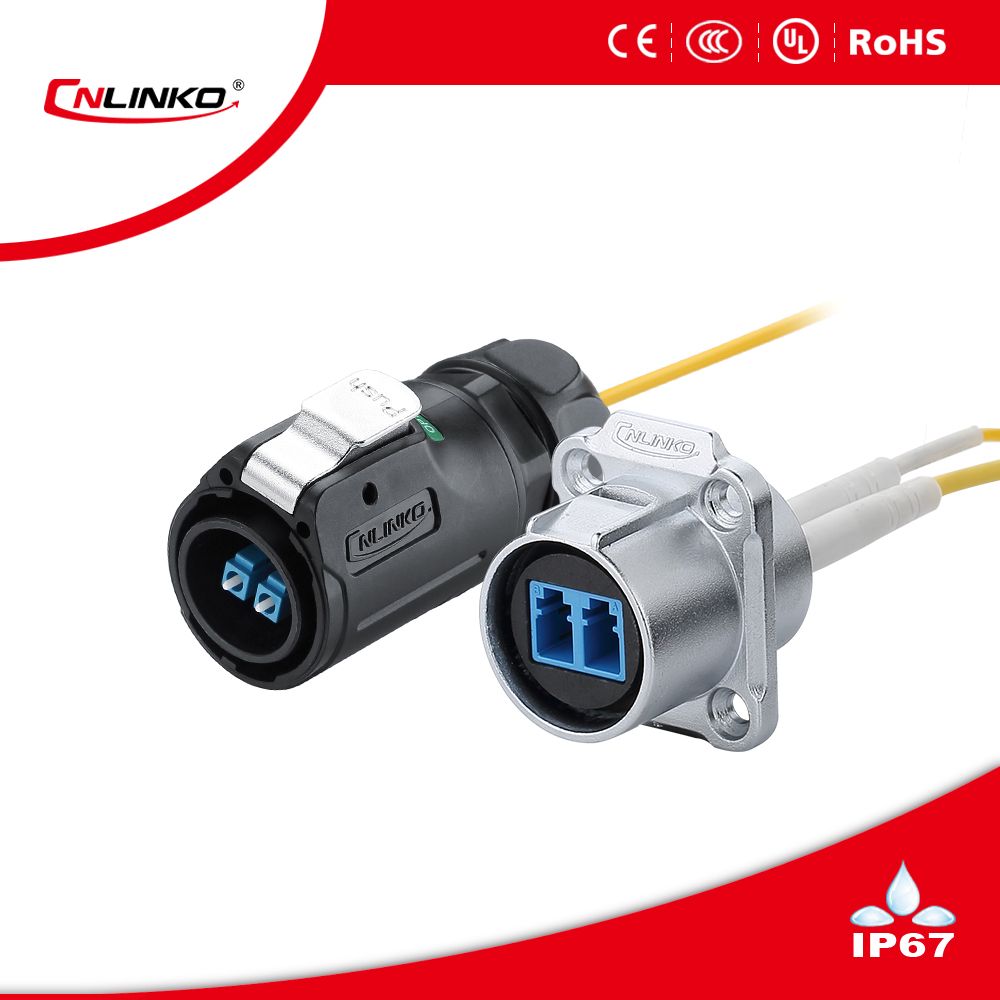

Lp24 Signal Optical Fiber Connector for Monitor and Thermal Sensor

Prod Model:	LP-24-F00PE-P01, LP-24-F00SX-S01
Cable Specification:	0.15mm²~0.2mm²/26-24 AWG
Diameter Range:	5.5mm~7mm
Contact Diameter × Number:	2
Contact Resistance:	<30mΩ
Protection Level:	IP67
Hardware:	Zinc Alloy(Pearl Hard Chromium)
Waterproof Circle:	Silica Gel
Durability:	More Than 500 Times
Connecting Mode:	Plug/Unplug
Housing,The Insulating Parts:	High Performance Engineering Plastics
Transmission Medium:	Multimode
Structure:	SC
Number Of Cores:	Multi-Core
Ferrule Endface:	APC
Brand:	Cnlinko

Product Description

LP24 Optical fiber Connector/ signal connector

LP-24 series contains RJ45, USB, Power and fiber optical. Using zinc alloy and other metal materials for socket, which meets the requirement of industrial equipment.

1.Dual-channel fiber optic connection system with durable and dust-proof and water-proof.
2.Zinc shell with a hard shell and superior cable protect optical fiber.
3.Silicone tail clip coil diameter of the optical fiber can be divided into different holding fixed, high fastening strength and stability to reduce back tension, to avoid disruption of optical signal loss.
4.Pushing fastening system guarantee and ceramic fiber alignment pin axial and radial position precision positioning, ensure and another docking in needle plane elasticity close, completely eliminate the false docking, insertion loss is less than 0.3dB back loss of greater than 45.
5.The product life-cycle process continuation is high reliability, and self-cleaning process in exceptional circumstances, such as moisture, pollution, etc, user , low maintenance costs.
6.Protection level:IP67/IP68.
7.Pls indicate if you need the protection level more high.


Cable specification:	0.15mm²~0.2mm²/26-24 AWG
Diameter range:	Φ5.5mm~Φ7mm
Contact diameter × number:	2
Rated Current:	/
Operating voltage (AC.V.rms):	/
Contact resistance:	/
Temperature rise:	/

Withstanding Voltage(AC.V)1 minute:		Insulation resistance:	>500MΩ
Protection level:	IP67	Durability:	>500 times
Working temperature:	-40ºC~80ºC	Connecting mode:	plug/unplug
Assembly wire:		Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

Packaging & Shipping

1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-5 working days after received deposit
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partne
