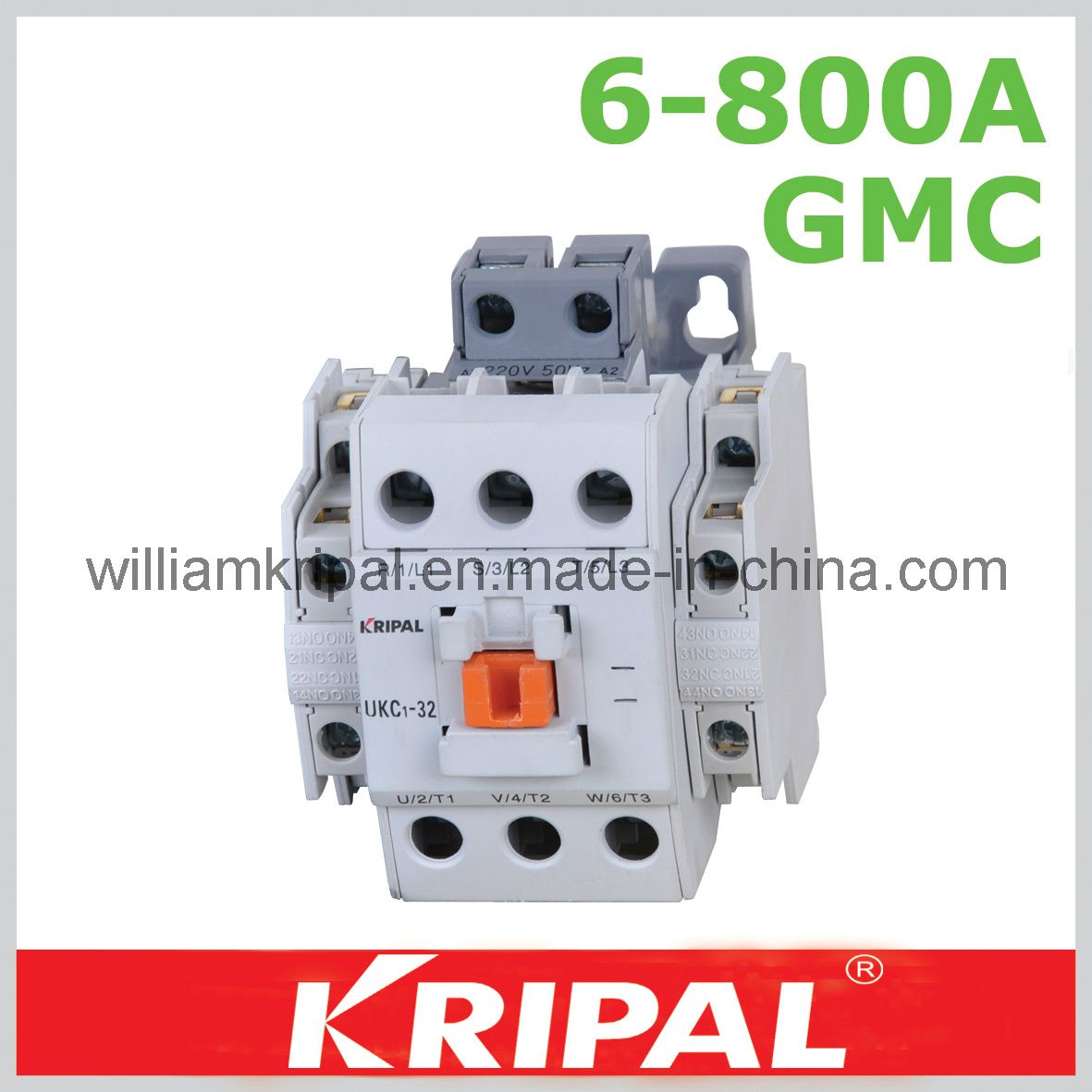

Ls Gmc Magnectic AC Contactor (UKC1-32/3)

Name: Ls Gmc Magnectic AC Contactor (UKC1-32/3)
Brand: all-electronics-online.com
SKU: 634006495
Availability: InStock
Rating: 4.7 (104 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	UKC1-32/3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Miniature
Usage:	Household Appliances Relay
Theory:	AC Contactor

Product Description

ls gmc Magnectic AC Contactor

1. 3 sets of main contacts: 85% AgCdO

2. Enclsoure: fire- retardant

3. Button: resin (bearing temperature more than 250 degree)

4. Warranty: 3 years

5. Samples: provided

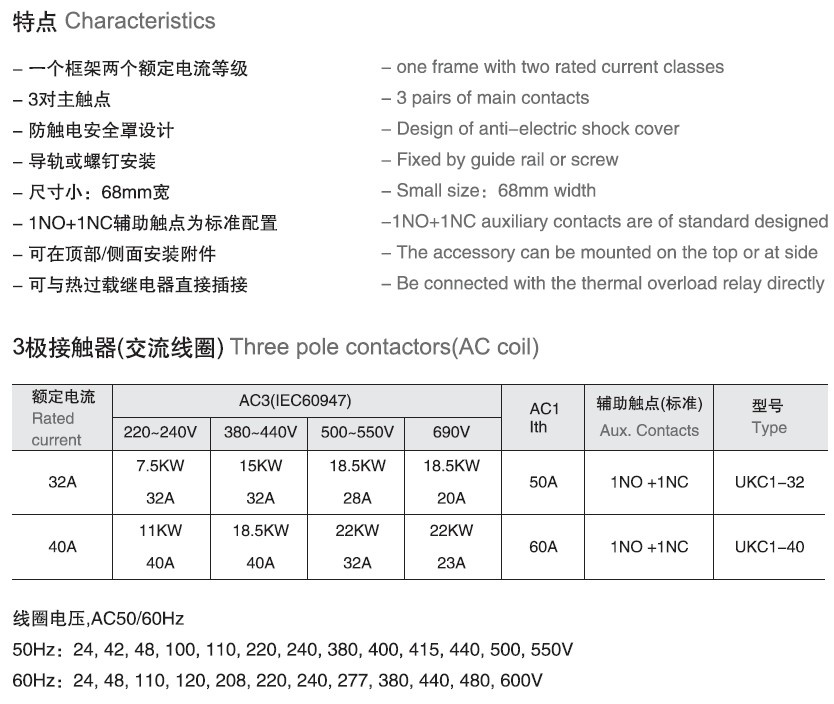

Model			UKC1-32	UKC1-40	UKC1-50	UKC1-65	UKC1-75	UKC1-85
AC coil			UKC1-32	UKC1-40	UKC1-50	UKC1-65	UKC1-75	UKC1-85

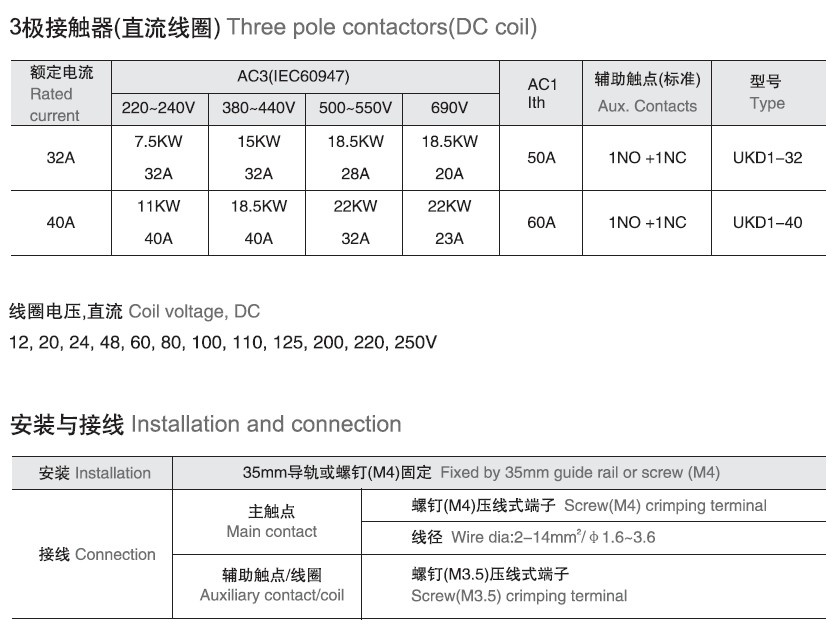

DC coil			UKD1-32	UKD1-40	UKD1-50	UKD1-65	UKD1-75	UKD1-85
IEC-60947	AC1 Load		50A	60A	80A	100A	110A	135A
	AC3 Load	200~240V	7.5KW32A	11KW40A	15KW55A	18.5KW 65A	22KW75A	25KW85A
		380~440V	15KW32A	18.5KW40A	22KW50A	30KW65A	37KW75A	45KW85A
		500~550V	18.5KW28A	22KW32A	30KW43A	33KW60A	37KW64A	45KW75A
		690V	18.5KW20A	22KW23A	30KW28A	33KW35A	37KW42A	45KW45A
UL508	Current (Ith)		45A	50A	70A	80A	90A	100A
	Single phase	115V	2HP	3HP	3HP	5HP	5HP	7.5HP
	Single phase	230V	5Hp	5Hp	7.5Hp	10Hp	15Hp	15Hp
	Three phase	200V	7.5HP	10HP	10HP	15HP	20HP	25HP
		230V	10HP	10HP	15HP	20HP	25HP	30HP
		460V	20HP	25HP	30HP	40HP	50HP	50HP
		575V	20HP	25HP	30HP	40HP	50HP	50HP

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
